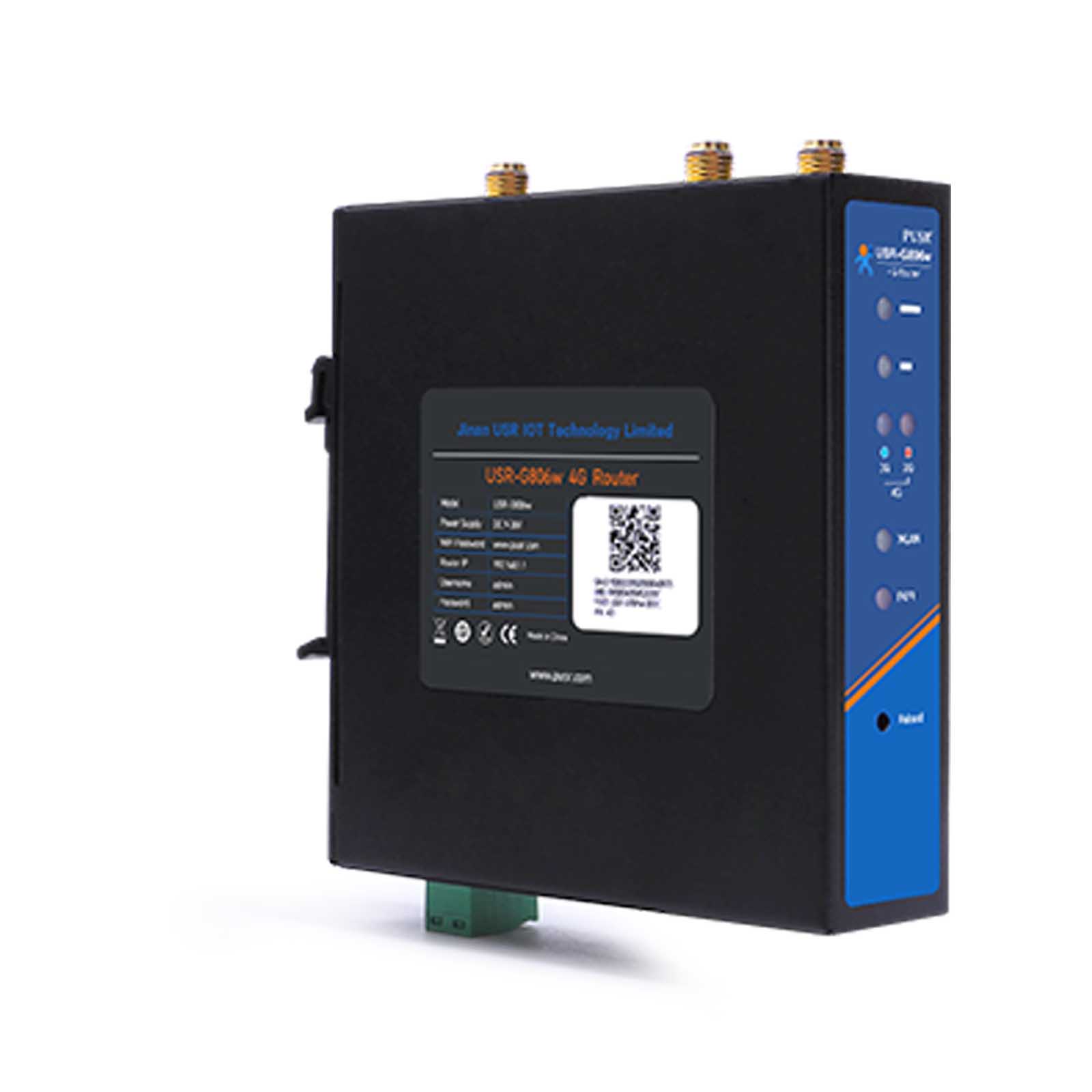

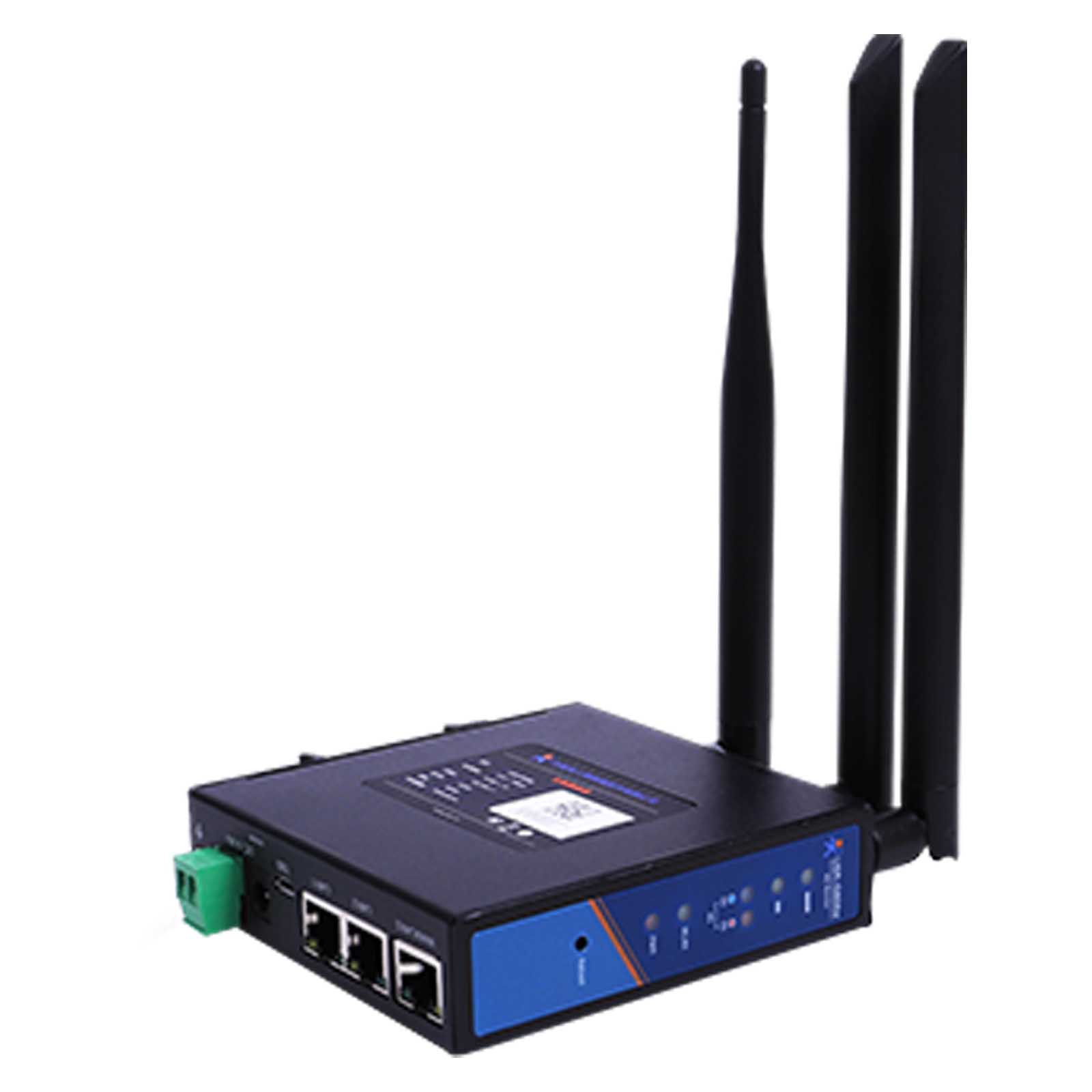

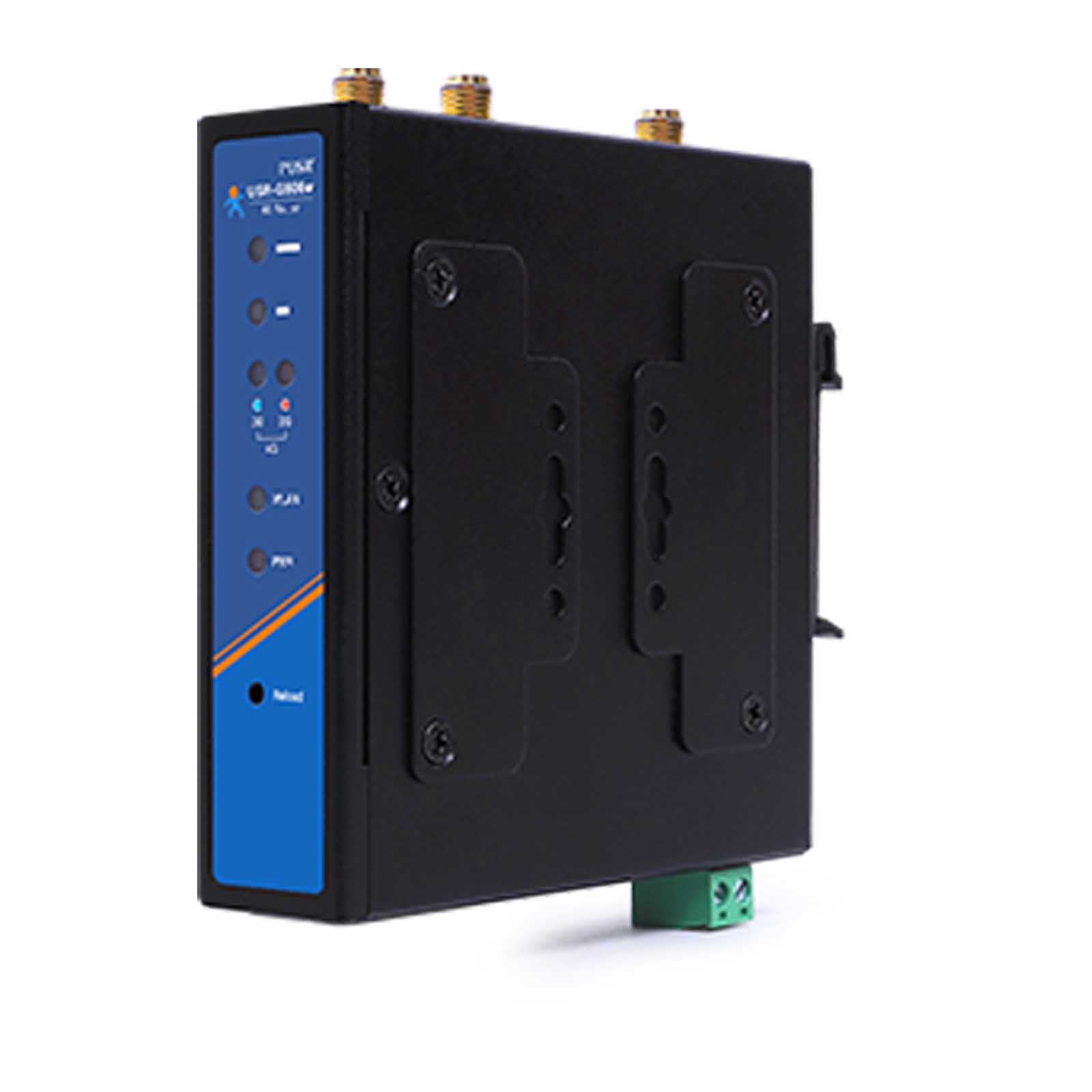

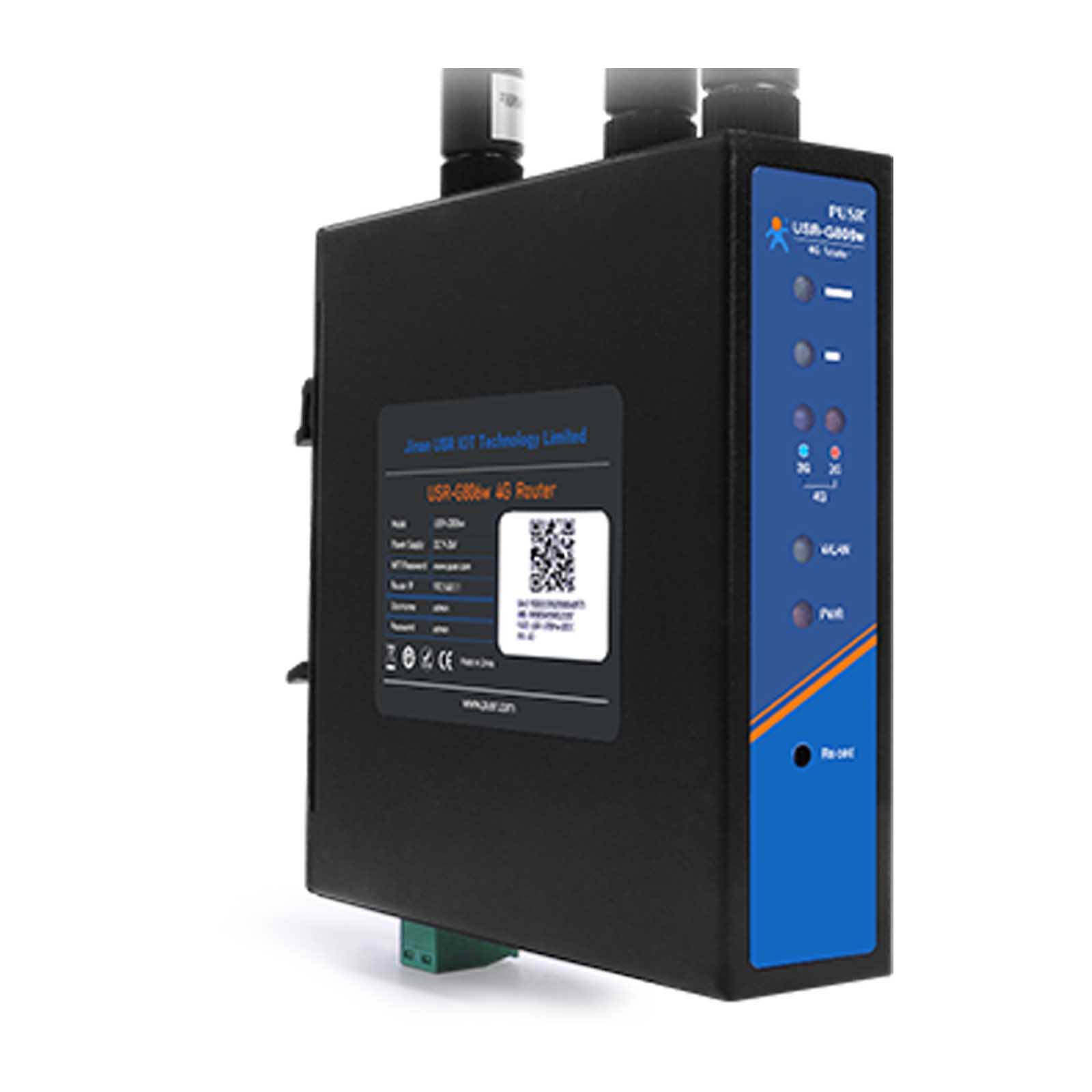

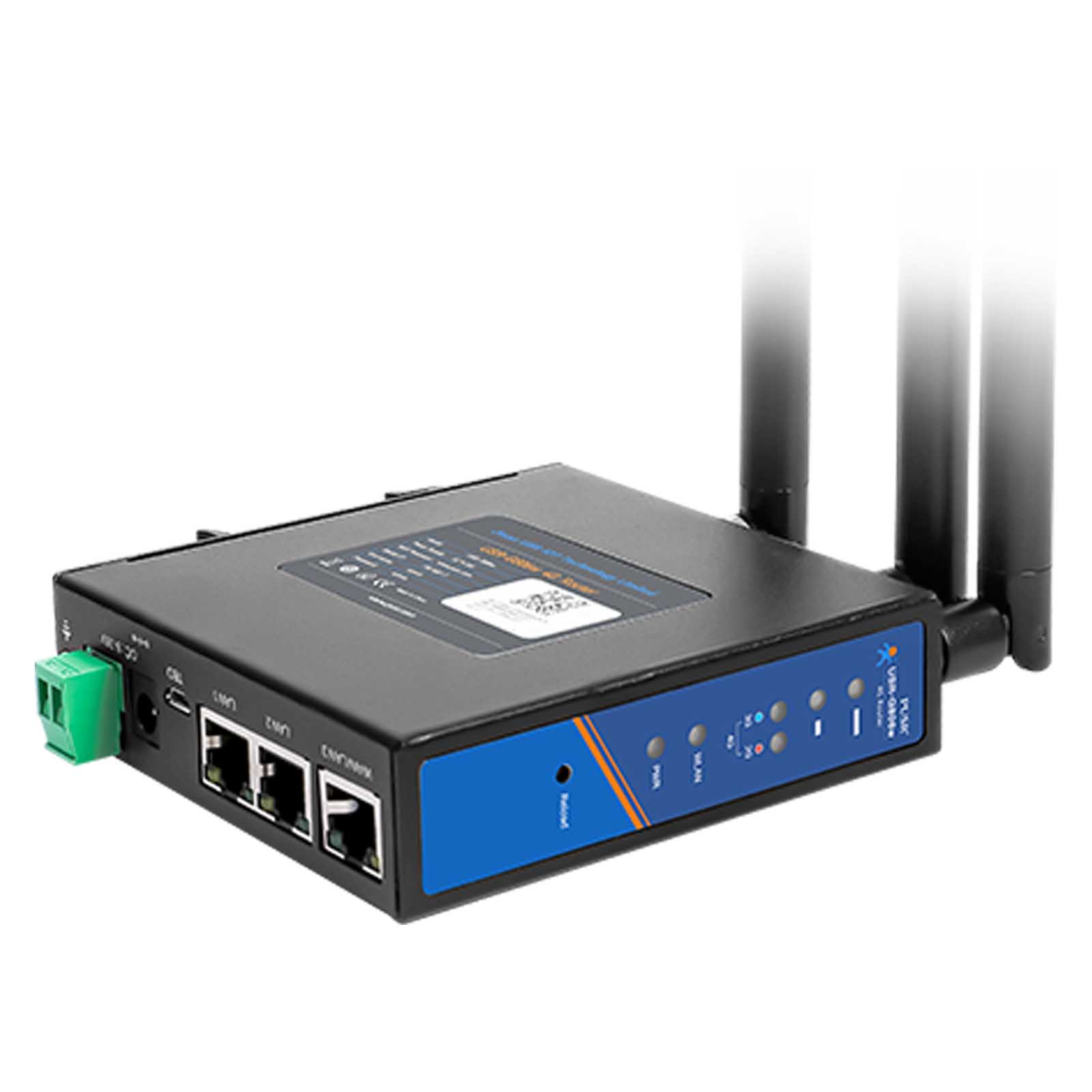

USR-G806w
|
|
|
Cellular Interface
|
|
|
Frequency
|
TDD-LTE:B38/40/41 FDD-LTE：B1/3/7/8/20/28A WCDMA：B1/8 GSM/EDGE:B3/8 |
|
Antenna
|
1 x SMA-K |
|
SIM card
|
1 x (3 V & 1.8 V) Standard 4FF SIM |
|
Ethernet
|
|
|
WAN
|
1 x WAN port (can be configured to LAN) 10/100 Mbps, compliance with IEEE 802.3, supports auto MDI/MDIX,1.5KV network isolation transformer protection |
|
LAN
|
1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX,1.5KV network isolation transformer protection |
|
Indicators
|
|
|
PWR
|
red,always on after powered on |
|
WIFI
|
green,always solid on when WiFi is enabled and working properly |
|
2/3/4G mode indicator
|
2G led is on after connected to 2G network 3G led is on after connected to 3G network Both leds is on after connected to 4G network |
|
SIG
|
Signal strength：2 LED issolidon,strongest signal |
|
WiFi
|
|
|
Standards & Frequency
|
IEEE 802.11b/g/n, 2.4GHz, AP/STA/Repeater mode |
|
Data speed
|
300Mbps |
|
Antenna
|
2 x RP-SMA-K |
|
MIMO
|
2×2 |
|
Transmission distance
|
500 meters by line of sight.Actual transmission distance depends on environment of the site. |
|
WiFi users
|
Up to 20 simultaneous connections |
|
Power Supply
|
DC 12V/1A adapter |
|
Connector
|
DC Power Jack Barrel Type Female 5.5*2.1mm Round socket or 2 PIN industrial terminal block,reverse polarity protection |
|
Input voltage
|
DC 9-36V |
|
Power consumption
|
Average 260mA/12V |
|
Physical Characteristics
|
|
|
Casing material
|
Metal shell, IP30 |
|
Dimensions
|
104.0*102.0*28.0 (L*W*H, antenna pedestal,terminal block and DIN Rail are not included） |
|
Installation
|
Panel mounting, DIN-Rail mounting |
|
EMC
|
Static IEC61000-4-2, level 3 Pulsed Electric Field IEC61000-4-4, level 3 Surge IEC61000-4-5, level 3 |
|
Operating temperature
|
-20℃~+70℃ |
|
Storage temperature
|
-40℃～+125℃（non-condensing） |
|
Operating humidity
|
5%~95%（non-condensing） |
|
Others
|
|
|
Reload
|
Pinhole reset button |
|
TBD
|
Debug interface (TTL Level) |
|
Ground protection
|
Screw |
|
USR-G806w Software Specifications
|
|
|
Network Connection
|
|
|
WAN protocol
|
PPP, PPPoE, DHCP client |
|
LAN protocol
|
ARP, DHCP server, NAT，VLAN |
|
4G network access
|
Auto APN/VPDN, private network Access authentication: CHAP/PAP |
|
WLAN security
|
Open system,WPA/WPA2 PSK TKIP/AES encryption |
|
IP routing
|
Static routing |
|
Network diagnosis
|
Ping,route trace,DNS |
|
Device management
|
|
|
Configuration
|
Web |
|
Remote management
|
SSH, AT command,SNMP,SMS |
|
PUSR platform
|
Remote monitoring,remote upgrade,alarming,base station location,remote access to web pages of the router |
|
Security
|
|
|
Failover backup
|
WiFi WAN, Mobile, Wired options, each of which can be used as an automatic Failover |
|
Firewall
|
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control |
|
VPN
|
Supports PPTP, L2TP, GRE, IPSEC VPN (IKEv1), OPENVPN protocols |
|
Service
|
|
|
DDNS
|
Remote access the device through domain name |
|
Alarm
|
Email,SMS |
|
Others
|
NTP client, timing task |
