Cudy GS1024
|
|
|
Wersja modelu
|
GS1024 4.0 |
|
Interfaces
|
|
| Gigabit RJ45 Ports |
24
|
| Shielded RJ45 Port |
Yes
|
| Extend Mode Ports |
#1~#22
|
| VLAN Mode Ports |
#1~#22
|
| LED |
Power Speed/Link/Act of Each Ethernet Port
|
| Power Interfaces |
AC Inlet
|
| Physical Buttons |
VLAN/Default/Extend DIP Switch
|
|
Performance
|
|
| Max Copper Speed and Distance |
Cat. 3 or higher cable: 100 meters at 10 Mbps Cat. 5 or higher cable: 100 meters at 100 Mbps Cat. 5e or higher cable: 100 meters at Gigabit Cat. 5e or higher cable: 250 meters at 10 Mbps
|
| Copper Speed and Distance Note |
250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
|
| MAC Address Table |
8192
|
| Max Switching Capacity |
42 Gbps
|
| Max Forwarding Rate |
35.712 Mpps
|
| Jumbo Frame |
15 KB
|
| Packet Buffer |
4 Mbit
|
|
Power
|
|
| Basic Power Saving |
Yes
|
| Power Methods |
AC
|
| Power Input |
90-260V~ 50/60Hz
|
| Max Power Consumption |
11W
|
| Idle Power Consumption |
6.8W
|
|
Switching
|
|
| 802.3 Protocols |
802.3x Flow Control 802.3i 10BASE-T 802.3u 100BASE-TX 802.3ab 1000BASE-T
|
| 802.1 Protocols |
802.1p: LAN Layer 2 QoS/CoS
|
| L2 Features |
IGMP Snooping Loop Prevention Loop Detection DSCP QoS 802.1p QoS
|
|
Reliability
|
|
| Grounding Methods |
Three-Prong Plug Grounding Point
|
| EMS |
IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV
IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV |
| Environment |
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
|
Mechanical
|
|
| Dimension |
270×182×44 mm
10.63×7.17×1.73 inches |
| Product Weight |
1071.0 g (37.78 oz.)
|
| Casing Material |
Metal
|
| Installation |
Desktop Rackmount via Brackets
|
|
Package Content
|
|
|

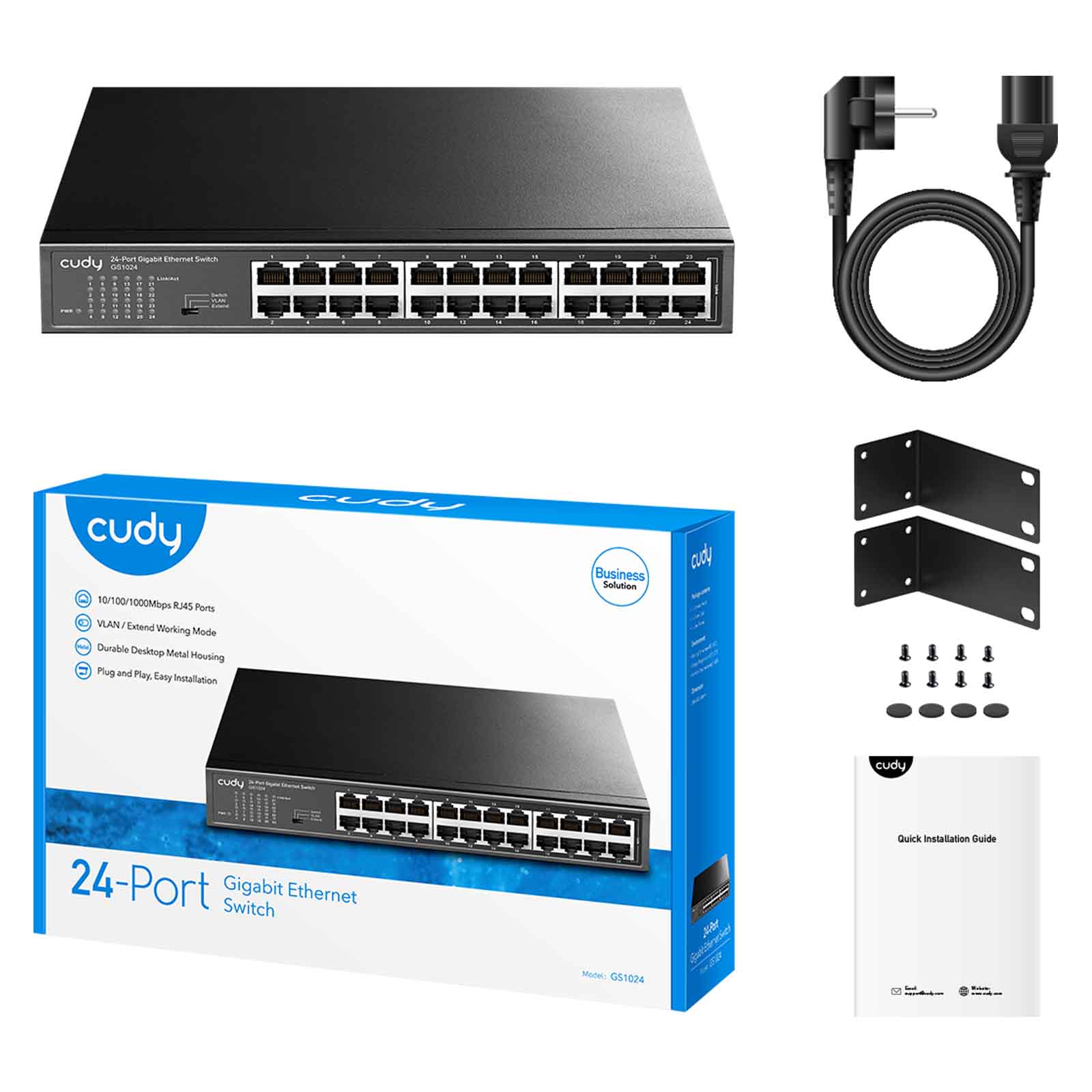

Package Content
|
GS1024 Power Cord Installation Guide Mounting Kit |
|
Ordering Information
|
|
| Retail Package Dimension |
367×245×84 mm
14.45×9.65×3.31 inches |
| Retail Package Weight |
EU: 1716.4 g (60.54 oz.)
|
| Units per Carton |
5
|
| Carton Net Weight |
EU: 8.6 kg (18.96 lbs)
|
| Carton Gross Weight |
EU: 9.3 kg (20.5 lbs)
|
| Carton Dimension |
38×44×26.5 cm
14.96×17.32×10.43 inches |
