MOBILE
|
|
|
Mobile module
|
4G (LTE) – Cat 6 up to 300 Mbps, 3G – up to 42 Mbps |
|
SIM switch
|
2 SIM cards, auto switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection (planned) |
|
Status
|
Signal strength, SINR, RSRP, RSRQ, Bytes sent/received |
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, Email to SMS, SMS to Email, SMS to HTTP, SMS to SMS, SMS auto replay, scheduled SMS (planned), SMPP (planned) |
|
USSD
|
Supports sending and reading Unstructured Supplementary Service Data messages |
|
Black/White list (planned)
|
Operator black/white list |
|
Multiple PDN
|
Possibility to use different PDNs for multiple network access and services |
|
Band management
|
Band lock, Used band status display |
|
APN
|
Auto APN |
|
Bridge mode
|
Direct connection (bridge) between mobile ISP and device on LAN |
|
WIRELESS
|
|
|
Wireless mode
|
802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
|
WiFi security
|
WPA2-Enterprise-PEAP, WPA2-PSK, WPA-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
|
ESSID
|
ESSID stealth mode |
|
Wireless Hotspot
|
Captive portal (Hotspot), internal/external Radius server, built in customizable landing page |
|
ETHERNET
|
|
|
WAN
|
1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
|
Fiber
|
1 x SFP port (cannot work simultaneously with Ethernet WAN port) |
|
LAN
|
4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
|
CONSOLE
|
|
|
Console
|
RS-232 (RJ45) console port for router configuration and debuging |
|
NETWORK
|
|
|
Routing
|
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
|
Network protocols
|
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, UPNP, SSH, DHCP, Telnet, SNMP, MQTT, Wake on LAN (WOL), DLNA |
|
VoIP passthrough support
|
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
|
Connection monitoring
|
Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection |
|
Firewall
|
Port forwards, traffic rules, custom rules |
|
DHCP
|
Static and dynamic IP allocation, DHCP Relay, Relayd |
|
QoS
|
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
|
DDNS
|
Supported >25 service providers, others can be configured manually |
|
Network backup
|
VRRP, Mobile, Wired, Fiber and WiFi WAN options, each of which can be used as an automatic Failover |
|
Load balancing
|
Balance Internet traffic over multiple WAN connections |
|
SSHFS (optional)
|
Possibility to mount remote file system via SSH protocol (not available in standard FW) |
|
SECURITY
|
|
|
Authentication
|
Pre-shared key, digital certificates, X.509 certificates |
|
Firewall
|
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
|
Attack prevention
|
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
|
VLAN
|
Port and tag based VLAN separation |
|
Mobile quota control
|
Custom data limits for both SIM cards |
|
WEB filter
|
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
|
Access control
|
Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
|
VPN
|
|
|
OpenVPN
|
Multiple clients and a server can run simultaneously, 12 encryption methods |
|
OpenVPN Encryption
|
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
|
IPsec
|
IKEv1, IKEv2, with 5 encryption methods for IPsec (DES, 3DES, AES128, AES192, AES256) |
|
GRE
|
GRE tunnel |
|
PPTP, L2TP
|
Client/Server instances can run simultaneously, L2TPv3 support |
|
Stunnel
|
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
|
DMVPN
|
Method of building scalable IPsec VPNs |
|
SSTP
|
SSTP client instance support |
|
Zerotier
|
Zerotier VPN client support |
|
MODBUS
|
|
|
MODBUS TCP SLAVE
|
|
|
ID filtering
|
Respond to one ID in range [1;255] or any |
|
Allow remote access
|
Allow access through WAN |
|
Custom registers
|
Modbus TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend Modbus TCP slave functionality |
|
MODBUS TCP MASTER
|
|
|
Supported functions
|
01, 02, 03, 04, 05, 06, 15, 16 |
|
Supported data formats
|
8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC) |
|
MODBUS RTU MASTER (RS232) (PLANNED)
|
|
|
Supported baud rates
|
From 300 to 115200 |
|
Supported functions
|
01, 02, 03, 04, 05 (only for alarms), 06 (only for alarms), 15 (only for alarms), 16 (only for alarms) |
|
Number of data bits
|
From 5 to 8 |
|
Number of stop bits
|
1 or 2 |
|
Parity
|
None, Even, Odd |
|
Flow
|
None, RTS/CTS, Xon/Xoff |
|
MQTT GATEWAY
|
|
|
Gateway
|
Allows sending commands and receiving data from Modbus Master trough MQTT broker |
|
DATA TO SERVER
|
|
|
Protocols
|
HTTP(S), MQTT, Azure MQTT, Kinesis |
|
MONITORING & MANAGEMENT
|
|
|
WEB UI
|
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
|
FOTA
|
Firmware update from server, automatic notification |
|
SSH
|
SSH (v1, v2) |
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
|
Call
|
Reboot, Status, Mobile data on/off, Output on/off |
|
TR-069
|
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
|
MQTT
|
MQTT Broker, MQTT publisher |
|
SNMP
|
SNMP (v1, v2, v3), SNMP Trap |
|
JSON-RPC
|
Management API over HTTP/HTTPS |
|
Modbus
|
Modbus TCP status/control |
|
RMS
|
Teltonika Remote Management Systems (RMS) |
|
IoT PLATFORMS
|
|
|
Clouds of things
|
Allows monitoring of: Device data, Mobile data, Network info, Availability |
|
ThingWorx
|
Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
|
Cumulocity
|
Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP |
|
Azure IoT Hub
|
Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server |
|
SYSTEM CHARACTERISTICS
|
|
|
CPU
|
Quad-core ARM Cortex A7, 717 MHz |
|
RAM
|
256 MB, DDR3 |
|
FLASH storage
|
256 MB SPI Flash |
|
FIRMWARE/CONFIGURATION
|
|
|
WEB UI
|
Update FW from file, check FW on server, configuration profiles, configuration backup |
|
FOTA
|
Update FW/configuration from server |
|
RMS
|
Update FW/configuration for multiple devices at once |
|
Keep settings
|
Update FW without losing current configuration |
|
FIRMWARE CUSTOMIZATION
|
|
|
Operating system
|
RutOS (OpenWrt based Linux OS) |
|
Supported languages
|
Busybox shell, Lua, C, C++ |
|
Development tools
|
SDK package with build environment provided |
|
SERIAL
|
|
|
RS232
|
RJ45 connector, full RS232 (with RTS, CTS) |
|
Serial functions
|
Console (active by default), Modbus gateway, Modbus RTU master (planned), Serial OverIP, Modem mode (Full or partial) (planned), Ntrip client |
|
USB
|
|
|
Data rate
|
USB 2.0 |
|
Applications
|
Samba share, custom scripts (planned) |
|
External devices
|
Possibility to connect external HDD, flash drive, additional modem, printer |
|
Storage formats
|
FAT, FAT32, NTFS |
|
POWER
|
|
|
Connector
|
2 x 4 pin industrial DC power sockets for main and redundancy power sources |
|
Input voltage range
|
9 – 50 VDC, reverse polarity protection, voltage surge/transient protection |
|
Power consumption
|
idle: <3W, max: 18W |
|

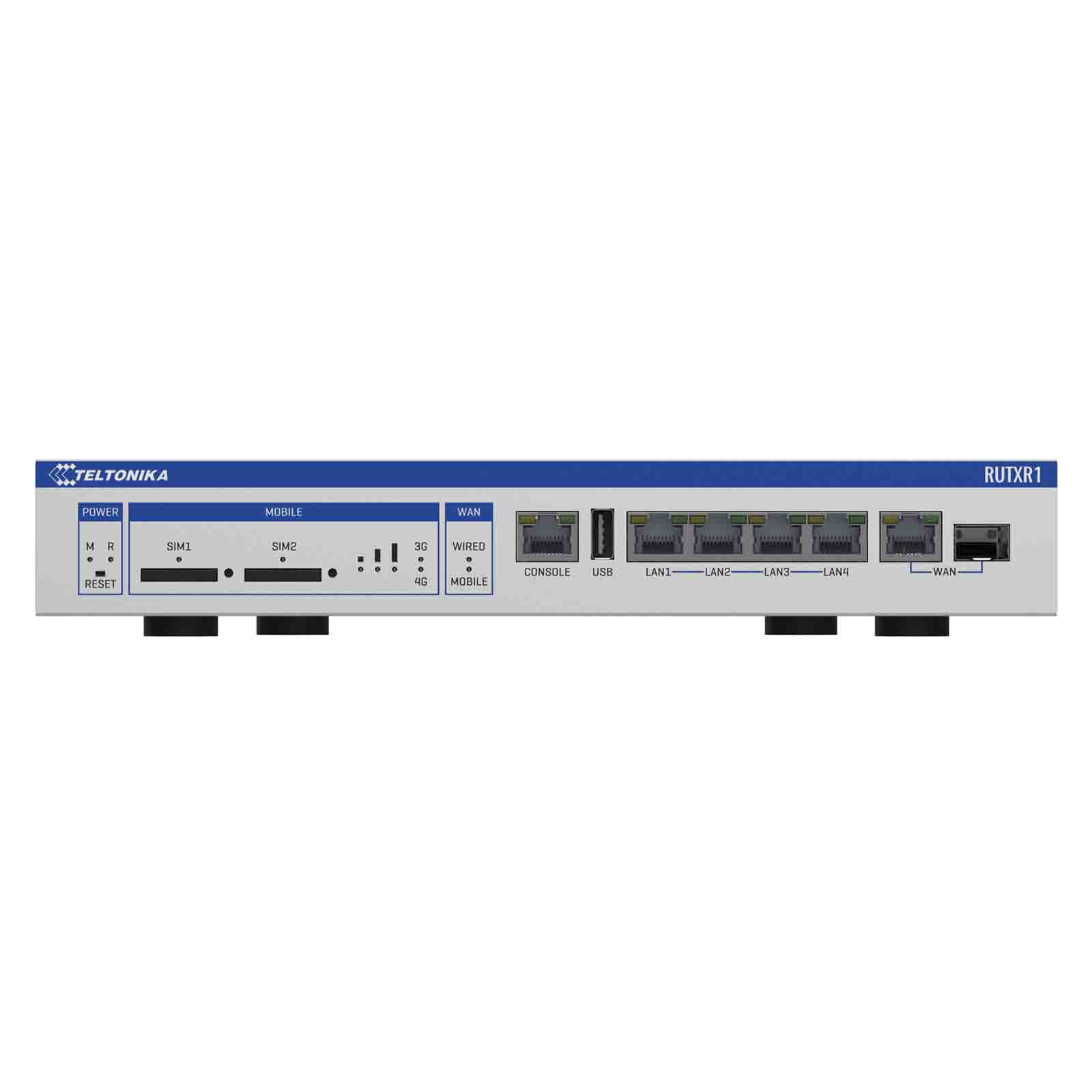

PHYSICAL INTERFACES
|
|
|
Ethernet
|
5 x RJ45 ports, 10/100/1000 Mbps |
|
Console
|
1 x RJ45, RS232 communication |
|
Fiber
|
1 x SFP port |
|
Status LEDs
|
2 x WAN type, 2 x Mobile connection type, 3 x Mobile signal strength, 2 x active SIM, 10 x Ethernet status, 2 x Console status, 2 x Power |
|
SIM
|
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders |
|

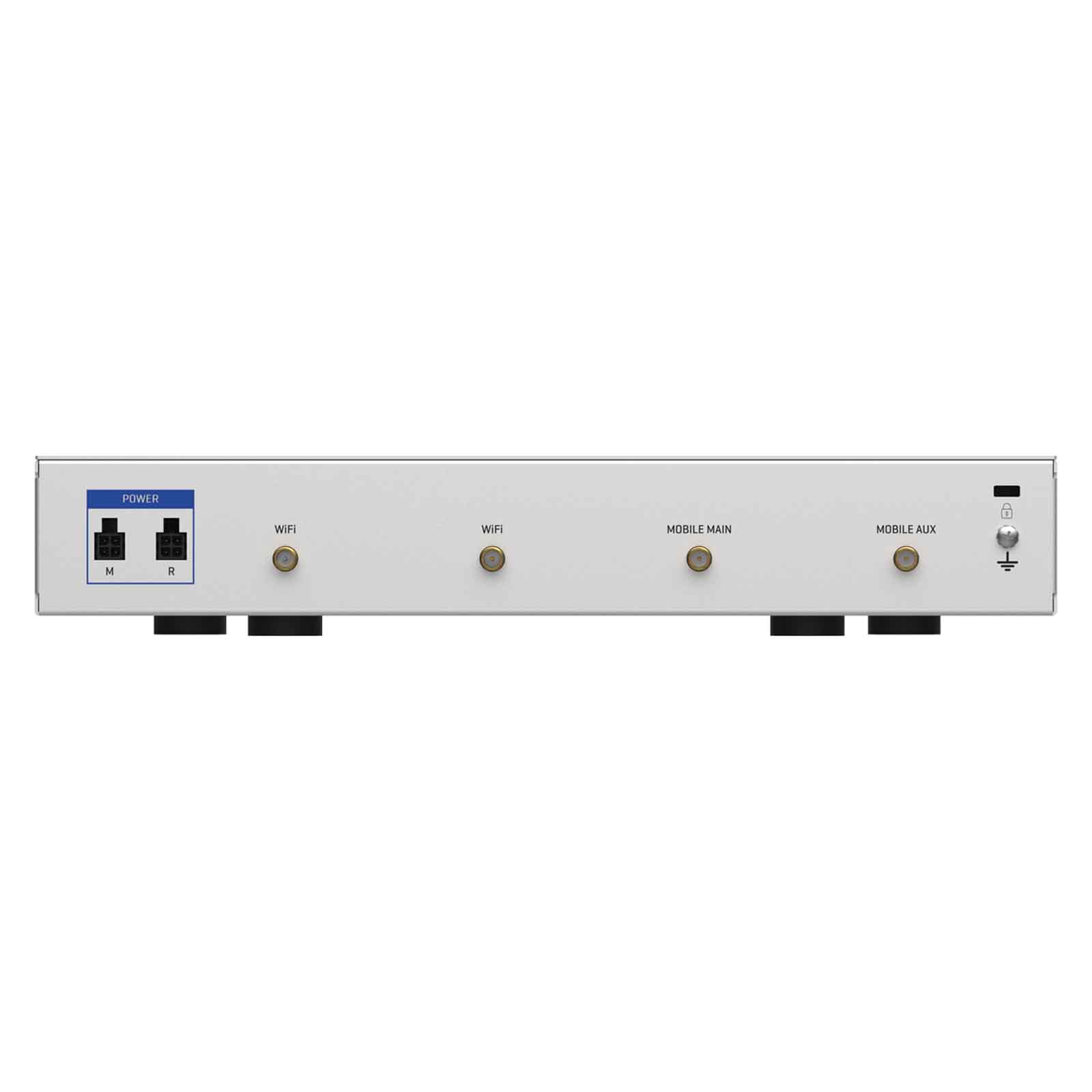

Power
|
2 x 4 pin DC connector |
|

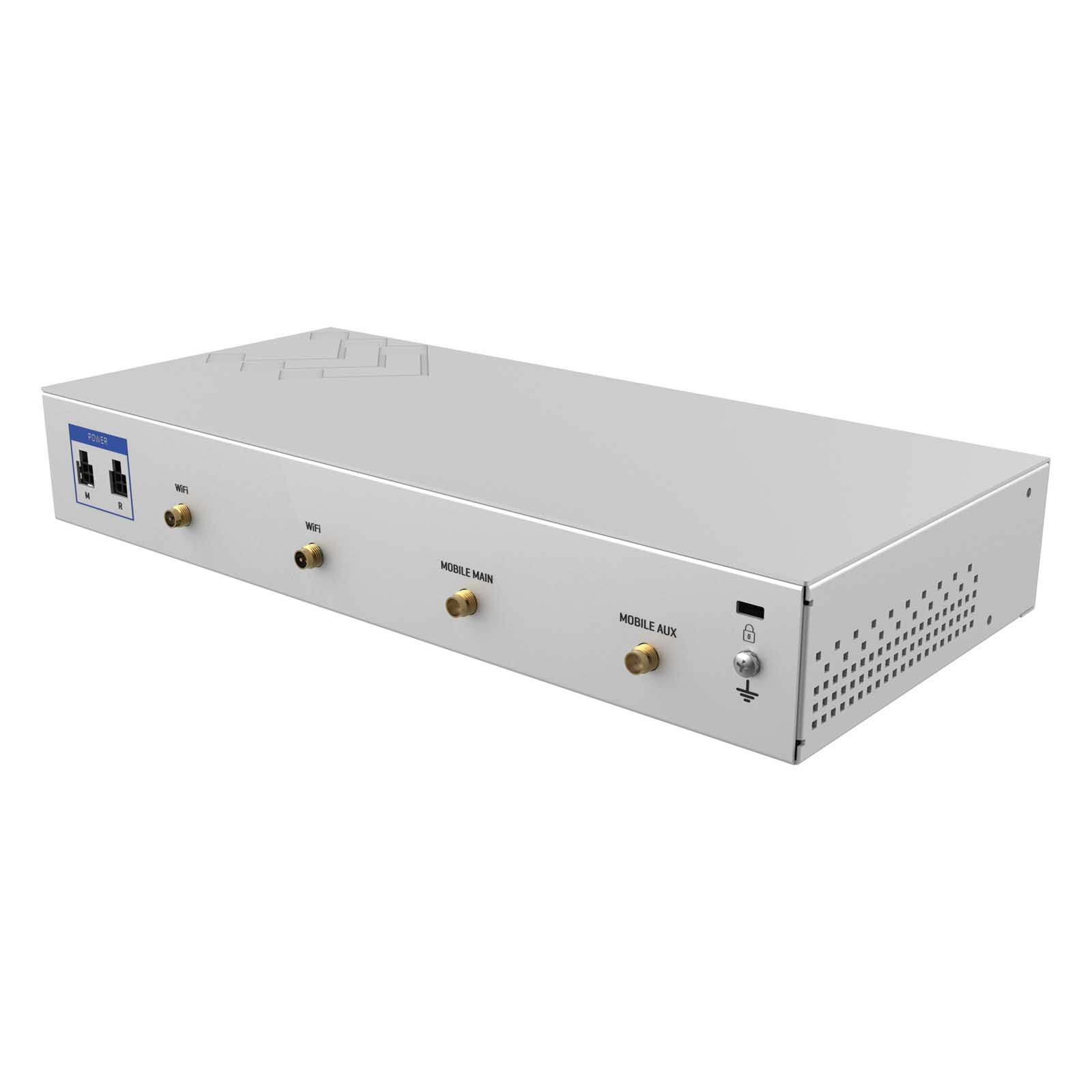

Antennas
|
2 x SMA for LTE, 2 x RP-SMA for WiFi |
|
USB
|
USB A port for external devices |
|
Reset
|
Reboot/User default reset/Factory reset button |
|
Other
|
Grounding screw, lock |
|
PHYSICAL SPECIFICATION
|
|
|
Casing material
|
Full steel housing |
|
Dimensions (W x H x D)
|
272 x 42.6 x 122.6 mm |
|
Weight
|
1050 g |
|
Mounting options
|
Rack mounting, flat surface placement |
|
OPERATING ENVIRONMENT
|
|
|
Operating temperature
|
-40°C to +70°C |
|
Operating humidity
|
10 % to 90 % non-condensing |
