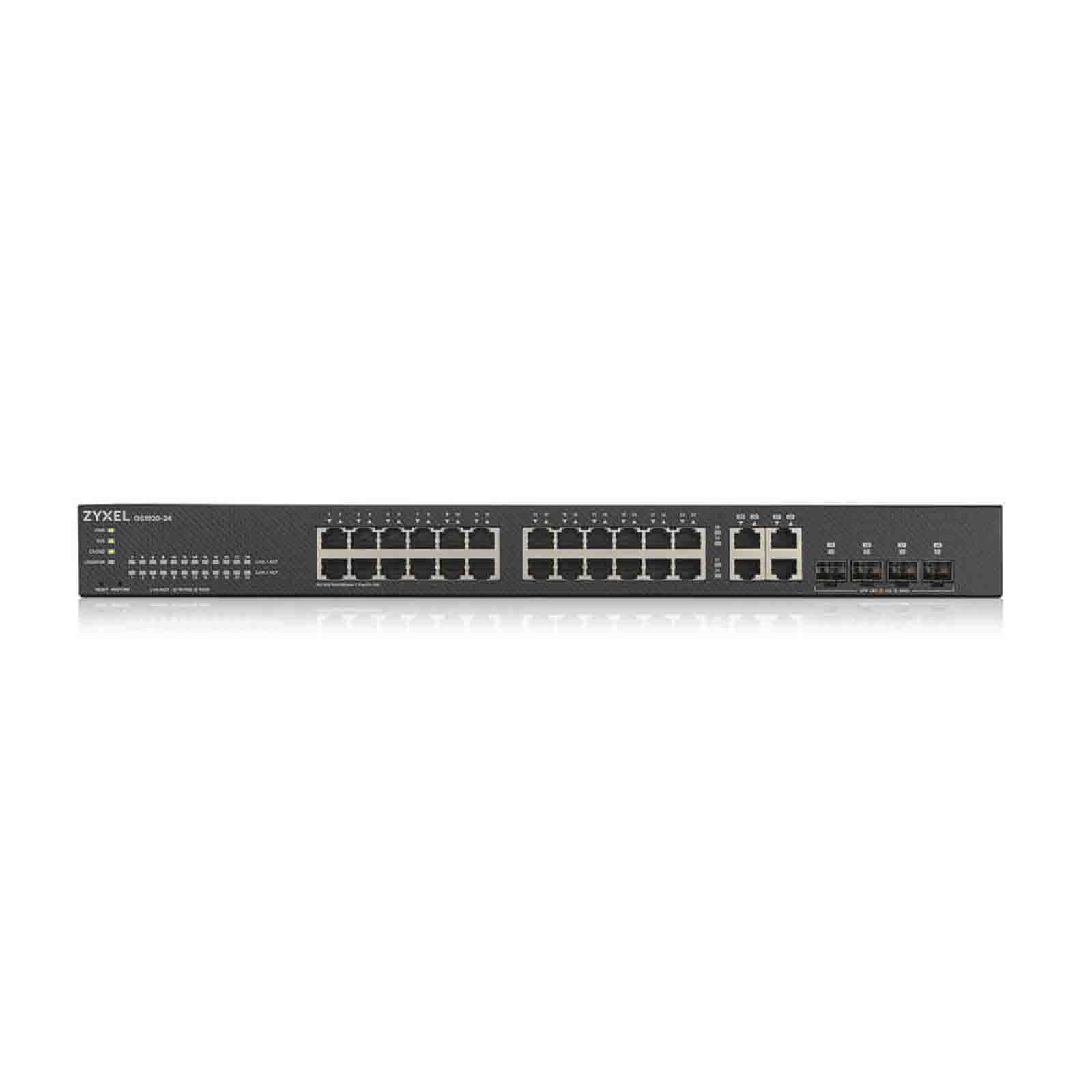

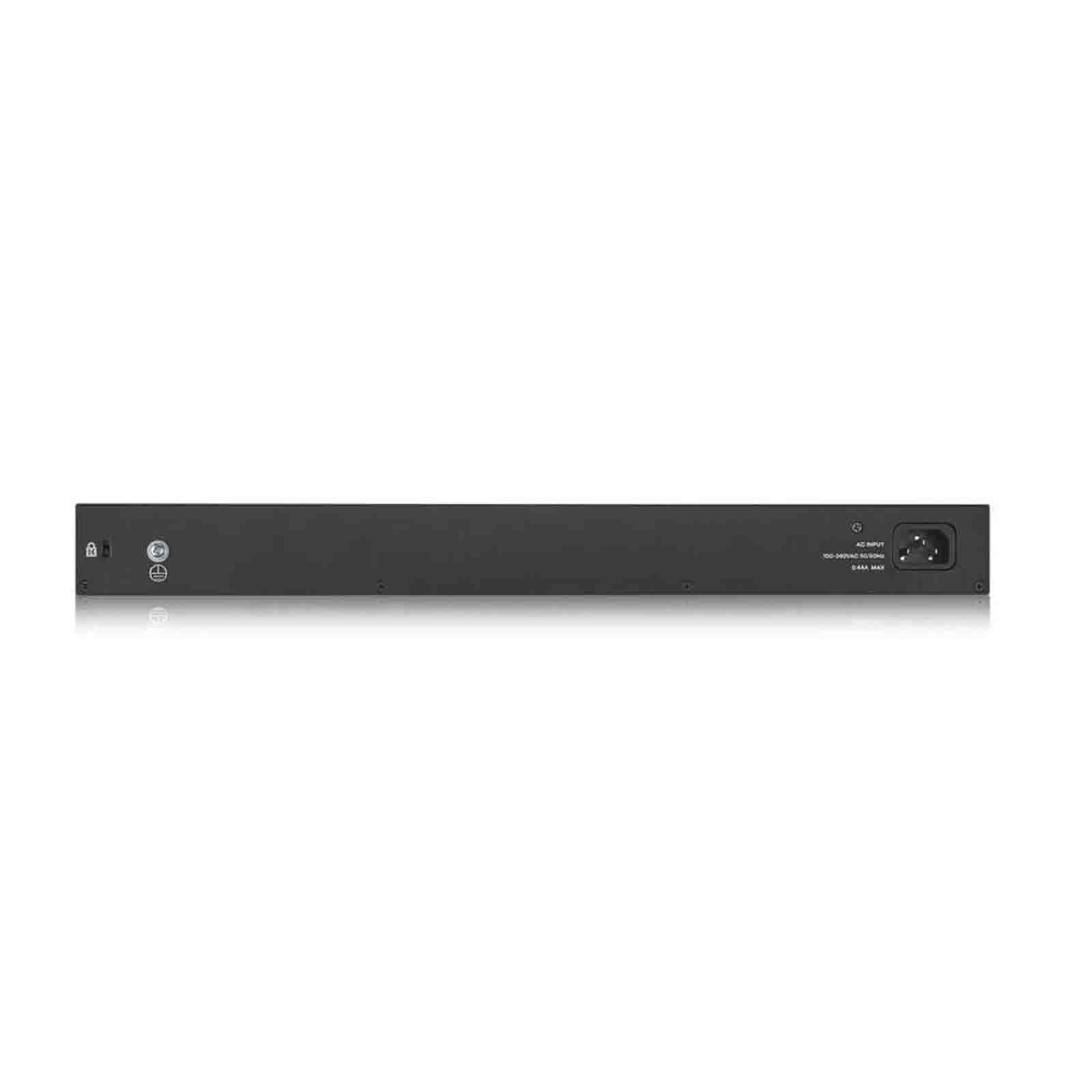

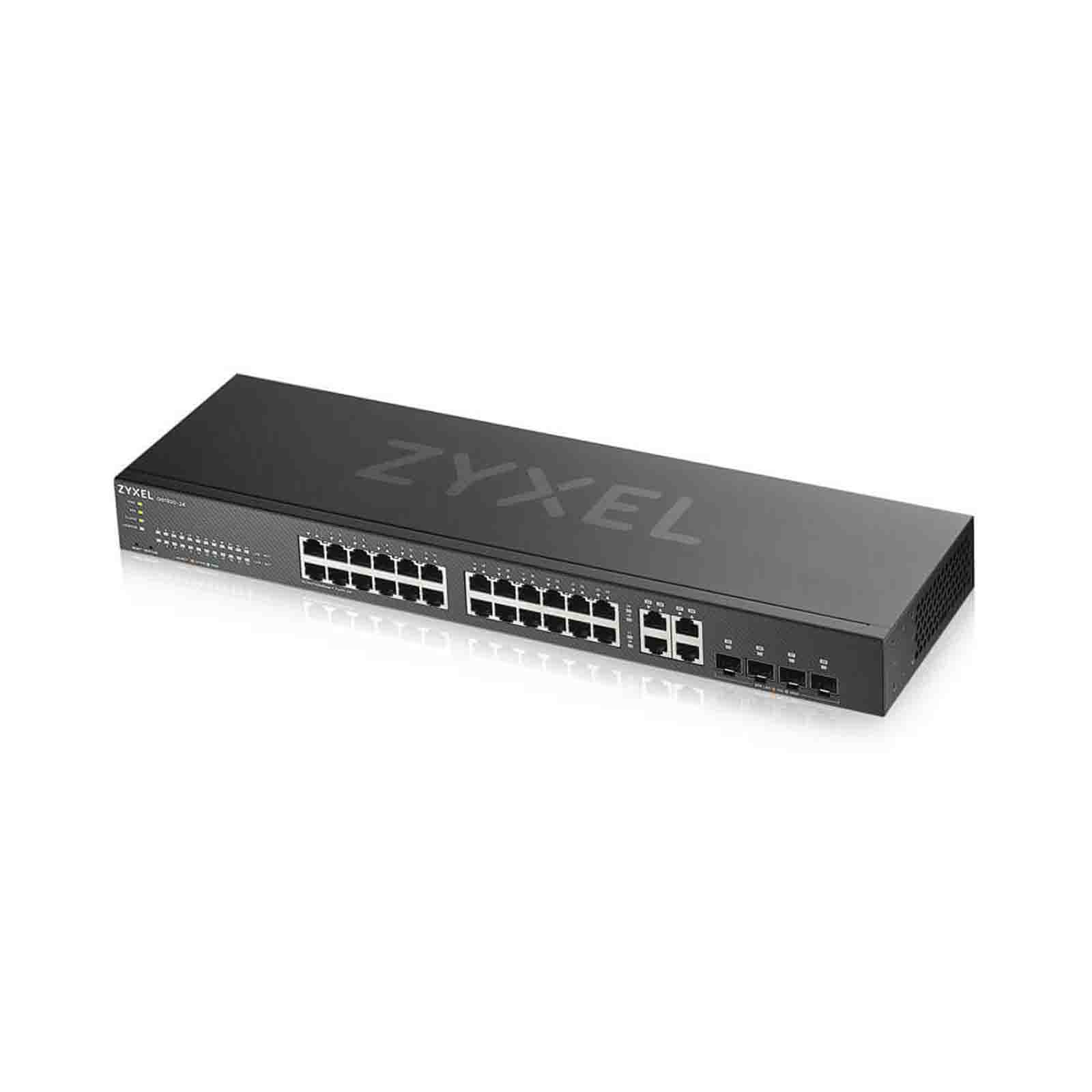

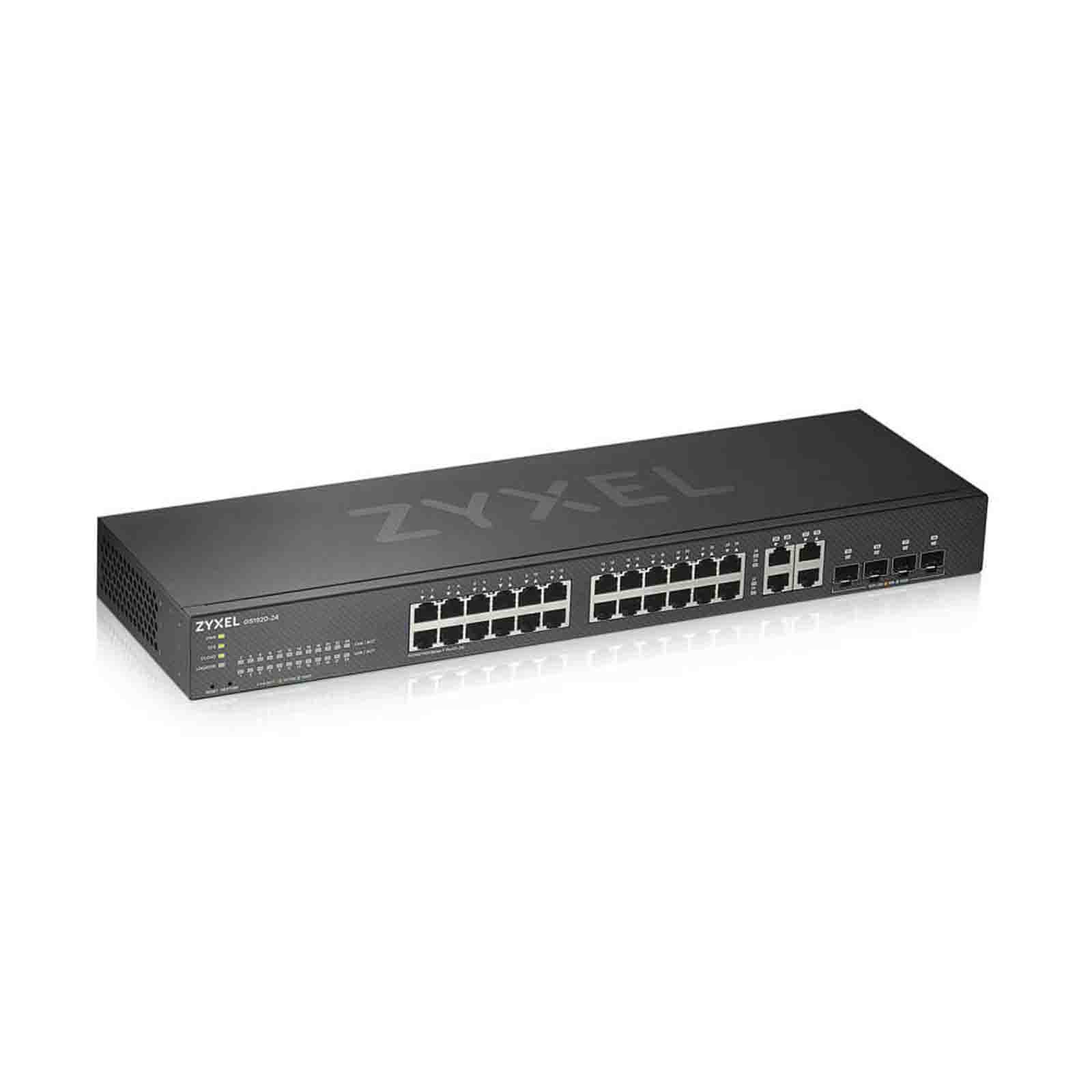

Zyxel GS1920-24v2

Producent: Zyxel

904,25 zł z VAT 735,16 zł netto

Najtańsza dostawa: 16,85 zł

Dostępność: Dostępny

Zyxel GS1920-24v2 to 28-portowy przełącznik gigabitowy typu smart. Wyposażony jest w 24x gigabitowe porty Ethernet oraz 4x sloty combo SFP. GS1920-24v2 to idealne rozwiązanie dla wielu różnych scenariuszy instalacji SMB i dzięki unikalnej kombinacji portów umożliwia łatwą rozbudowę sieci w przyszłości.

Switch GS1920-24v2 posiada inteligentne zarządzanie www i konstrukcję sprzętową klasy enterprise. Zbudowany przy wykorzystaniu najnowszej technologii oferuje wysoką jakość i niezawodność sieciom w MŚP.

Przełączniki serii GS1920 mają obudowę w stylu carbon-style dostosowaną do montażu w szafie Rack (uchwyty są dołączone do zestawu). Wyposażone są w dodatkowy przycisk przywracania poprzedniej konfiguracji.

Seria GS1920 kontynuuje sukces najlepiej sprzedającej się serii GS1920 i oferuje odświeżony wygląd i zarządzanie w chmurze w technologii Zyxel NebulaFlex.  System Zyxel NebulaFlex umożliwia łatwe przełączanie pomiędzy trybem autonomicznym i zarządzanym z chmury za pomocą darmowej platformy Nebula.

Standard Compliance:
  • IEEE 802.3u 100BASE-TX Ethernet
  • IEEE 802.3ab 1000BASE-T Ethernet
  • IEEE 802.3z 1000BASE-X
  • IEEE 802.3af PoE
  • IEEE 802.3at PoE Plus
  • IEEE 802.3az EEE
  • IEEE 802.3x flow control
  • IEEE 802.1AB LLDP/LLDP-MED
  • IEEE 802.3ad LACP aggregation
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
  • IEEE 802.1Q VLAN tagging
  • IEEE 802.1p Class of Service (CoS) prioritization
  • IEEE 802.1X port authentication
Odporność i dostępność:
  • IEEE 802.1D Spanning Tree Protocol (STP)
  • IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
  • IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
  • IEEE 802.3ad LACP (Max # Trunks/Links per Trunk): 8/8
  • Loop guard
  • ErrDisable recovery
  • MRSTP (Zyxel proprietary)
  • Dual configuration files
  • Dual images
Traffic Control:
  • 802.1Q Static VLANs/Dynamic VLANs: 1K/4K
  • Port-based VLAN
  • Protocol-based VLAN
  • VIP Subnet-based VLAN
  • MAC-based VLAN
  • Private VLAN
  • Voice VLAN
  • VLAN ingress filtering
  • LACP algorithm of source/destination MAC/IP
  • GVRP
  • L2PT
Bezpieczeństwo:
  • 802.1X
  • Port security
  • Layer 2 MAC filtering
  • Layer 3 IP filtering
  • Layer 4 TCP/UDP socket filtering
  • Static MAC forwarding
  • Multiple RADIUS servers
  • Multiple TACACS+ servers
  • 802.1x VLAN and 802.1p assignment by RADIUS
  • Login authentication by RADIUS
  • Login authentication by TACACS+
  • TACACS+ accounting
  • Authorization on RADIUS
  • Authorization on TACACS+
  • SSL
  • MAC freeze
  • DHCP snooping IPv4
  • DHCP snooping IPv6
  • ARP inspection
  • Static IP-MAC-Port binding
  • Policy-based security filtering
  • Port isolation
  • IP source guard
  • MAC search
  • Guest VLAN
  • ACL packet filtering (IPv4/IPv6)
  • CPU protection
  • Interface related trap enable/disable (by port)
  • IPv6 duplicated address detection (DAD)
Quality of Service (QoS):
  • No. of hardware queues per port: 8
  • 802.1p queuing methods: SPQ, WRR, WFQ
  • Storm control: broadcast, multicast, unknown unicast (DLF)
  • Port-based rate limiting(ingress/egress)
  • Rate limiting per IP/TCP/UDP per port
  • Policy-based rate limiting
  • 802.3x flow control
  • 802.1p Class of Service (SPQ, WFQ, SPQ/WFQ combination capable)
  • DiffServ (DSCP)
Layer 2 Multicast:
  • L2 multicast
  • IGMP snooping (v1, v2, v3)
  • IGMP snooping fast Leave
  • Configurable IGMP snooping timer and priority
  • IGMP snooping statistics
  • IGMP throttling
  • MVR support
  • IGMP filtering
  • IGMP snooping immediate leave
  • IGMP proxy mode & snooping mode selection
  • MLD snooping
Zarządzanie:
  • SNMP v1, v2c, v3
  • SNMP trap group
  • RMON (1, 2, 3, 9)
  • ICMP echo/echo reply
  • Syslog*
  • IEEE 802.1AB LLDP
  • IEEE 802.1AB LLDP-MED
  • Custom default
  • Syslog (IPv4/IPv6)
  • Display port utilization
  • Support NebulaFlexTMfor hybrid mode
Zarządzanie IPv6:
  • IPv6 over Ethernet (RFC 2464)
  • IPv6 addressing architecture (RFC 4291)
  • Dual stack (RFC 4213)
  • ICMPv6 (RFC 4443)
  • Path MTU (RFC 1981)
  • Minimum path MTU size of 1280 (RFC 5095)
  • Encapsulation for maximum MTU of 1500
  • Neighbor discovery (RFC 4861)
  • DHCPv6 relay
  • Default DHCP client mode
  • DAD (Duplicated Address detection)
Funkcje:
  • Standalone management by Web interface
  • Cloud management by Nebula Control Center
  • Zyxel iStackingTM
  • Web interface
  • Management through SNMP
  • Remote firmware upgrade by Web
  • Configuration saving and retrieving
  • Configure clone
  • DHCP relay per VLAN
  • DHCP client IPv4
  • DHCP client IPv6
  • Daylight saving
  • NTP Server (IPv4/IPv6) – Support DNS format
  • Port mirroring
  • Scheduled PoE
  • PoE default consumption mode
  • Restore to last custom default
MIB:
  • Zyxel private common MIB
  • RFC 1066 TCP/IP-based MIB
  • RFC 1213, 1157 SNMPv2c/v3 MIB
  • RFC 1493 bridge MIB
  • RFC 1643 Ethernet MIB
  • RFC 1757 RMON Group 1, 2, 3, 9
  • RFC 2011, 2012, 2013 SNMPv2 MIB
  • RFC 2233 SMIv2 MIB
  • RFC 2358 Ethernet-like MIB
  • RFC 2674 bridge MIB extension
  • RFC 2819, 2925 remote management MIB
  • RFC 3621 power Ethernet MIB
  • RFC 4022 management information base for transmission control protocol
  • RFC 4113 management information base for user datagram protocol
  • RFC 4292 IP forwarding table MIB
  • RFC 4293 Management Information Base (MIB) for IP
Certyfikaty:
  • Safety: LVD, BSMI
  • EMC: FCC Part 15 (Class A), CE EMC (Class A), BSMI ENC
  • RoHS: Level A
Zyxel One Network:
  • ZON Utility
  • Smart Connect
GS1920-24v2

Typ
Smart Switch
Porty
24x porty 10/100/1000BASE-T
4x porty combo SFP 100/1000 Mb/s
Przepustowość
56 Gb/s
Forwarding rate
42 Mp/s
Packet buffer
1.5 Mb
Rozmiar tablicy MAC
16K
Flash/RAM
32 MB/256 MB
Zasilanie
100 - 240 V AC,50/60 Hz
Maks. pobór mocy
22.5W
Budżet PoE
Brak
Wymiary urządzenia
441 x 131 x 44 mm
Waga opakowania
2.85 kg
Zawartość opakowania
urządzenie, kabel zasilający, uszy Rack
Brak wentylatora
Tak
