Cudy M3000
|
|
|
Wersja modelu
|
M3000 1.0 |
|
CPU
|
|
| CPU Details |
1.3 GHz Dual-Core, ARM Cortex-A53
|
|
Memory/Storage
|
|
| Flash/ROM |
128 MB (1 Gbit) NAND
|
| DDR/RAM |
256 MB (2 Gbit) DDR3
|
|
Wireless
|
|
| 5 GHz Wi-Fi Speed |
2402 Mbps
|
| 2.4 GHz Wi-Fi Speed |
574 Mbps
|
| 5 GHz Wi-Fi Streams |
2T2R (2×2 MIMO)
|
| 2.4 GHz Wi-Fi Streams |
2T2R (2×2 MIMO)
|
| Wi-Fi Antennas |
5× Internal
|
| 5 GHz Antenna Gain Max |
5.1dBi
|
| 2.4 GHz Antenna Gain Max |
4.2dBi
|
| FEM or PA/LNA |
5 GHz: 3× Internal 2.4 GHz: 2× Internal
|
| Beamforming |
True
|
| Range Performance |
Max: 220 m (722 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
| Wall Performance |
Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'') |
| Indoor Coverage Reference |
2 Pack: 200 m² (2100 sq ft)
3 Pack: 270 m² (2900 sq ft) Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room. |
|
Interfaces
|
|
| 2.5G RJ45 Ports |
1
|
| Gigabit RJ45 Ports |
1
|
| Ethernet Notes |
The 2.5G port is the WAN port, the Gigabit port is LAN port
|
| LED |
System Speed/Link/ACT of Ethernet Port
|
| Physical Buttons |
WPS Button Reset Button
|
| Power Input |
DC Jack
|
|
Power
|
|
| Power Methods |
DC
|
| DC |
12V 1A
|
| Power Adapter |
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC |
| Max Power Consumption (W) |
11.5W
|
| Idle Power Consumption (W) |
4.2W
|
|
Reliability
|
|
| Environment |
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing |
|
Certifications
|
|
|
Certifications
|
FCC, CE |
|
Mechanical
|
|
| Installation |
Desktop
|
| Dimension |
Φ110×154.5 mm
Φ4.33×6.08 inches |
| Product Weight |
360 g (12.7 oz.)
|
|

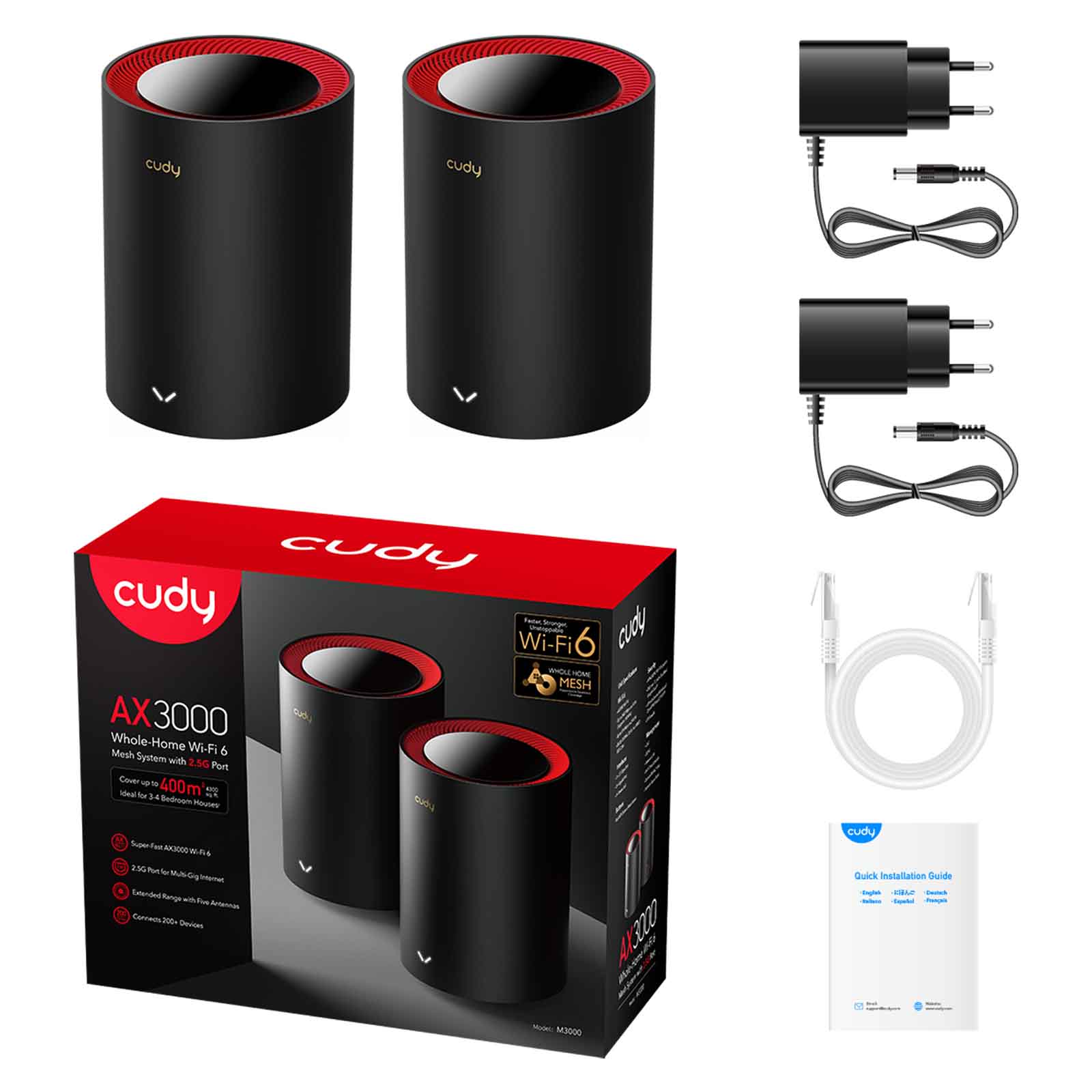

Package Content
|
|
|
Package Content
|
M3000 Power Adapter Ethernet Cable Installation Guide |
|
Ordering Information
|
|
|
Retail Package Weight
|
1-Pack | EU / US: 680 g (23.99 oz.) 2-Pack | EU / US: 1100 g (38.8 oz.) 3-Pack | EU / US: 1827 g (64.45 oz.) |
| Retail Package Dimension |
1-Pack:
145×130×265 mm 5.71×5.12×10.43 inches 2-Pack: 330×130×265 mm 12.99×5.12×10.43 inches 3-Pack: 380×130×265 mm 14.96×5.12×10.43 inches |
| Units per Carton |
1-Pack: 16 2-Pack: 8 3-Pack: 4
|
| Carton Dimension |
1-Pack: 57×56×26 cm
22.44×22.05×10.24 inches 2-Pack: 55×54.5×35.3 cm 21.65×21.46×13.9 inches 3-Pack: 53.6×40×28.7 cm 21.1×15.75×11.3 inches |
| Carton Gross Weight |
1-Pack | EU / US: 12.2 kg (26.9 lbs)
2-Pack | EU / US: 12 kg (26.46 lbs) 3-Pack | EU / US: 8.2 kg (18.08 lbs) |
| Carton Net Weight |
1-Pack | EU / US: 10.9 kg (24.03 lbs)
2-Pack | EU / US: 11.5 kg (25.35 lbs) 3-Pack | EU / US: 7.3 kg (16.09 lbs) |
|
Software
|
|
|
Wersja modelu
|
M3000 1.0 |
|
Wireless
|
|
| Wi-Fi Standards |
Wi-Fi 6
|
| Max Wi-Fi Modulation |
1024-QAM
|
| Wi-Fi Efficiency |
OFDMA MU-MIMO BSS Color
|
| Max Capacity |
512
|
| Recommended Client Upper Limit |
200
|
| Max Wi-Fi Channel Width |
160 MHz
|
| Wi-Fi Security |
WPA/WPA2/WPA3
|
| Guest Network |
2.4 GHz, 5 GHz
|
| WPS |
True
|
|
General
|
|
| Operation Modes |
Wi-Fi Router Access Point Range Extender WISP Client
|
| Mesh |
Cudy Mesh
|
| Mesh Backhaul |
Wireless Backhaul Wired Backhaul
|
| Multi-Band Backhaul |
True
|
| WAN Mode |
DHCP Static IP PPPOE PPTP L2TP
|
| Internet Failover Sequence |
WAN WISP
|
|
Network
|
|
| QoS |
Per-User Rate Limiting
|
| DHCP |
Address Reservation DHCP Client List Server
|
| IP Versions |
IPv4/IPv6
|
| IPv6 Protocols |
Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
|
| IPTV/VLAN |
Bridge Tag VLAN VoIP VLAN IPTV VLAN
|
| TTL Customization |
Extend Spoof Custom
|
| IGMP |
IGMP Proxy IGMP Snooping
|
| Forwarding |
Port Forwarding Port Triggering UPnP DMZ
|
| Firewall |
SPI Firewall DoS Protection Block PING
|
| Application Layer Gateway |
IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
|
|
Utilities
|
|
| VPN Server |
WireGuard OpenVPN IPsec Zerotier PPTP L2TP
|
| VPN Client |
WireGuard OpenVPN IPsec Zerotier PPTP L2TP
|
| DNS Options |
DNS over TLS Manual DNS Rebind Protection Override Clients' DNS
|
| DNS over TLS Providers |
Cloudflare Google Quad9 Custom
|
| Wake on LAN |
True
|
| Online Detection |
True
|
|
Management
|
|
| Parental Controls |
Profiles Settings Offline Time Online Time Pause the Internet Web Filter
|
| All Devices Management |
Wi-Fi Time Schedule MAC Filter IP/MAC Binding
|
| Per-Devices Management |
Internet On/Off VPN On/Off Online Time Schedule Device Rename
|
| Content Management |
Domain Filter IP Filter
|
|
System
|
|
| LED Control |
True
|
| Local Control Method |
Config Web Page App Control
|
| Remote Control Method |
Config Page via HTTPS App Control TR069/TR098/TR111/TR143/TR181
|
| Firmware Upgrade |
Local Update App (Over the Air) Online Update
|
| Reliability |
Timed Reboot Backup and Restore
|
| Diagnostic Tools |
Diagnosis Ping Traceroute NSLookup System Log
|
| Languages |
English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
|
|
Dashboard
|
|
| Panel |
Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
|
| Charts |
Mesh Topology Internet Speed WISP Speed Wi-Fi Speed
|
