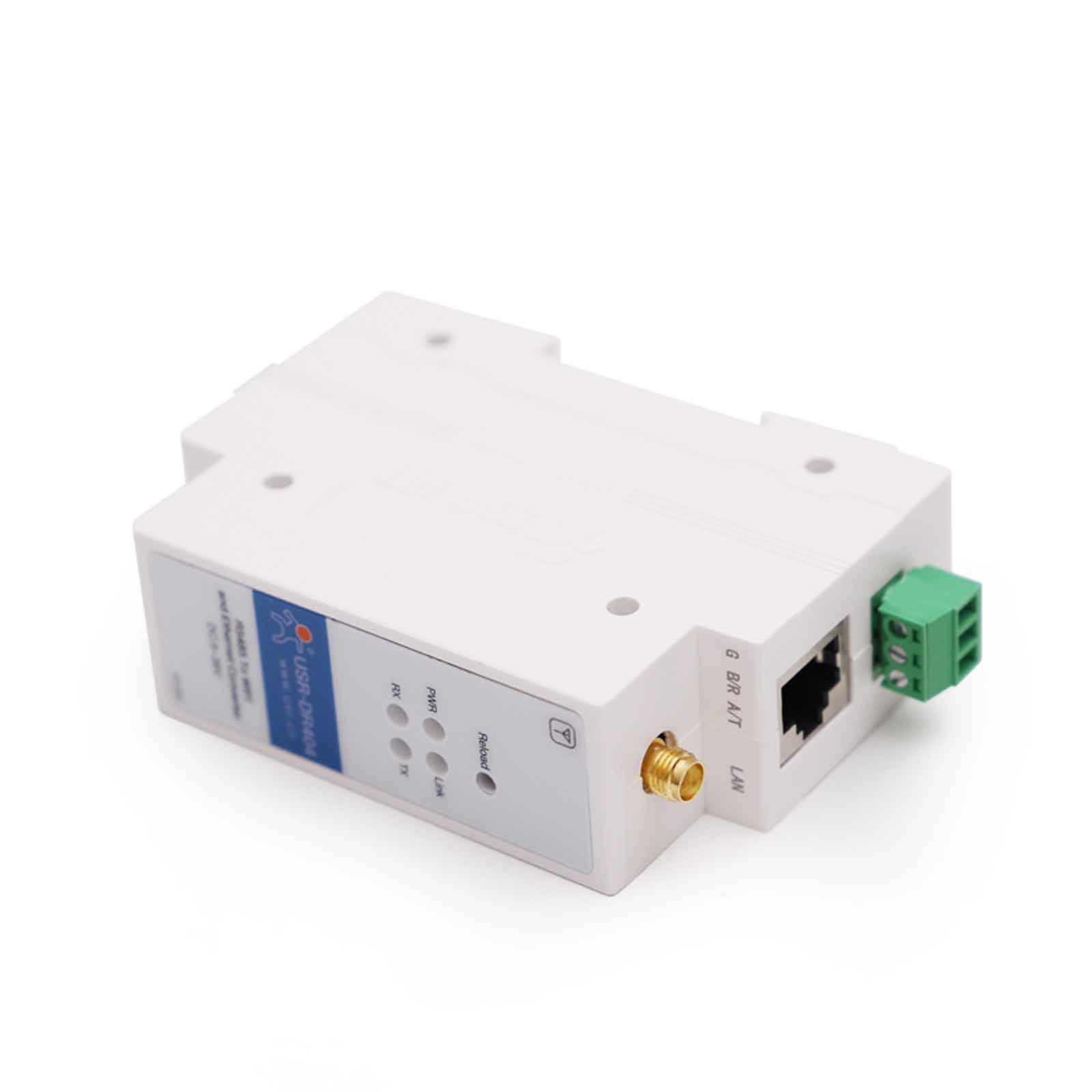

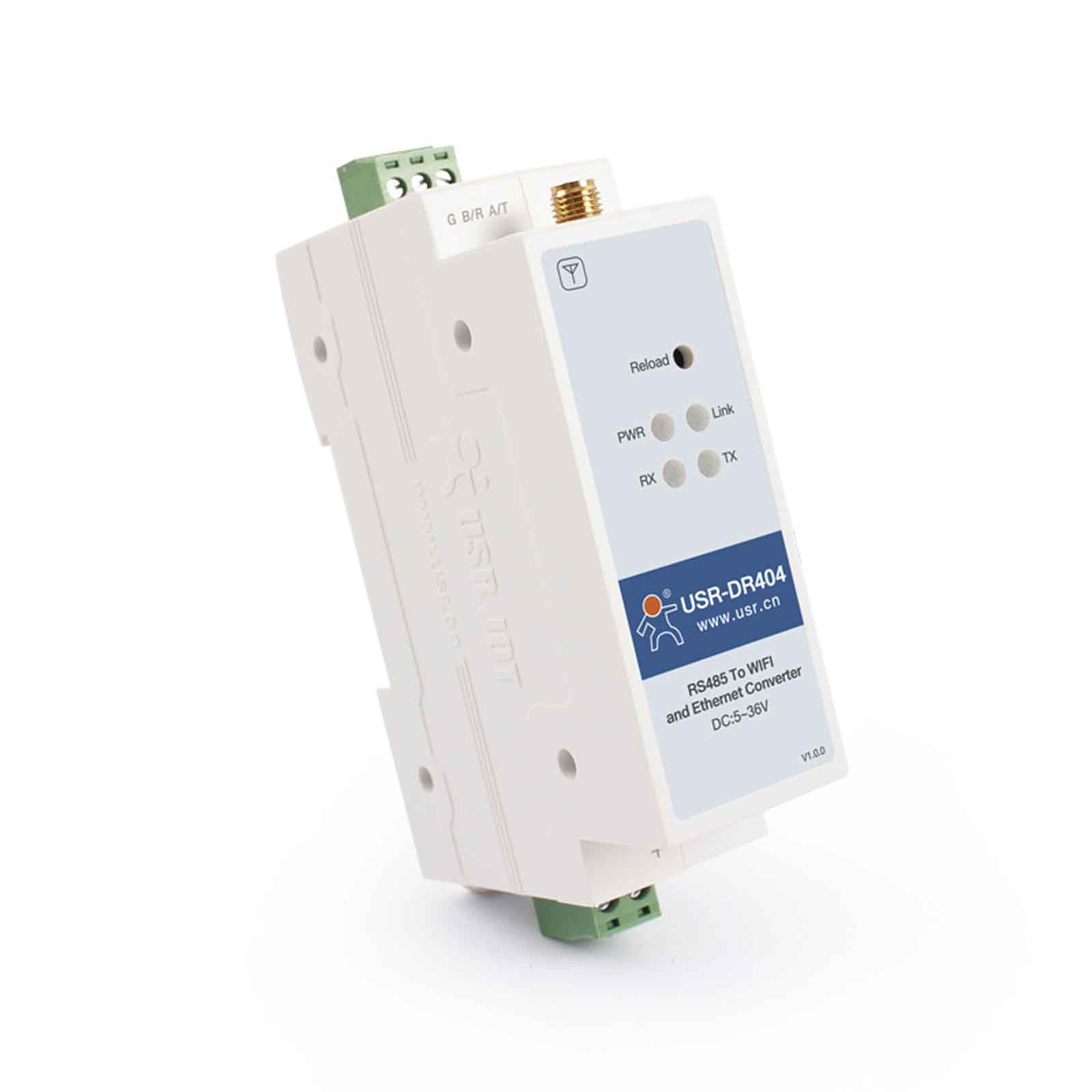

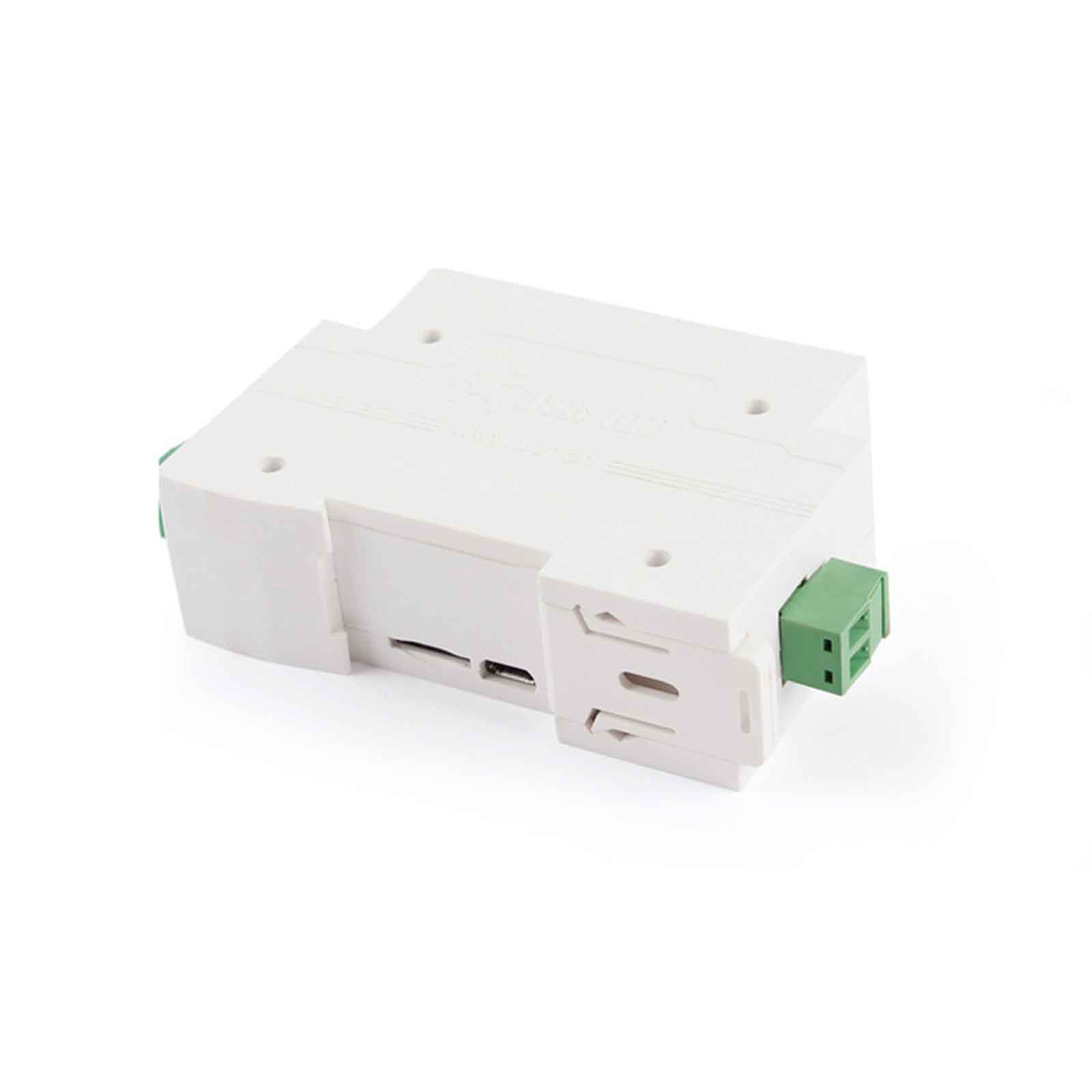

USR-DR404
|
|
|
Port Number
|
1x Ethernet Ports: 1x WAN/LAN |
|
Buffer
|
RX/TX: Max 4K bytes |
|
Protection
|
2KV Electromagnetic isolation for Ethernet port |
|
Speed Rate
|
10/100 Mb/s, MDI/MDIX |
|
Wi-Fi
|
|
|
Certificate
|
FCC/CE |
|
WiFi
|
802.11 b/g/n |
|
FrequencyRange
|
2.412GHz-2.484GHz |
|
TransmitPower
|
802.11b: +19dBm(Max.@11Mbps) 802.11g: +18dBm(Max.@54Mbps) 802.11n: +17dBm(Max.@HT20,MCS7) +17dBm(Max.@HT40,MCS7) |
|
User can configure power
|
|
|
ReceiveSensitivity
|
802.11b: -89dBm(@11Mbps) 802.11g: -81dBm(@54Mbps) 802.11n: -73dBm(@HT20,MCS7) -71dBm(@HT40,MCS7) |
|
Hardware
|
|
|
InterfaceStandard
|
RS485:300～230.4Kbps |
|
485 interface (anti surge, anti thunder, overcurrent protection)
|
|
|
Input Voltage
|
DC5～36V |
|
Operating Temp
|
-40℃～85℃ |
|
StorageTemp
|
-40℃～125℃ |
|
Size
|
109.66 x 28 x 64.71 mm |
|
Software
|
|
|
Network Mode
|
Station/AP/AP+Station |
|
Security
|
WPA-PSK/WPA2-PSK |
|
Encryption
|
TKIP/AES |
|
Work Mode
|
Transparent transmission/Serial command/ https Client/Modbus TCP<=>Modbus RTU |
|
SettingCommand
|
AT+ command |
|
Networking Protocol
|
TCP/UDP/ARP/ICMP/DHCP/DNS/https |
|
Max Client Numberin TCP Server Mode
|
24 |
|
Configuration
|
Web server＋AT command |
|
Customer application software
|
Support customize application software |
