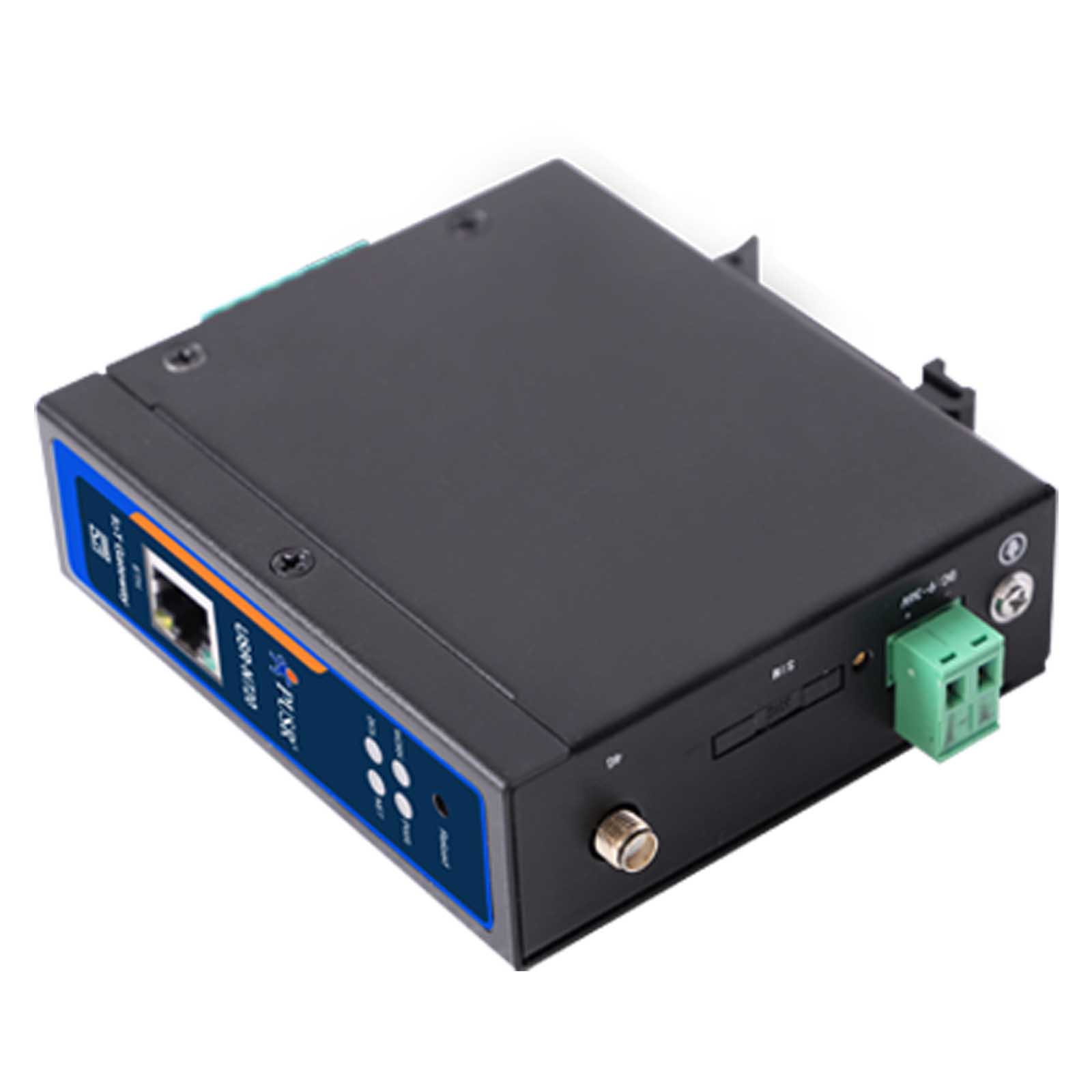

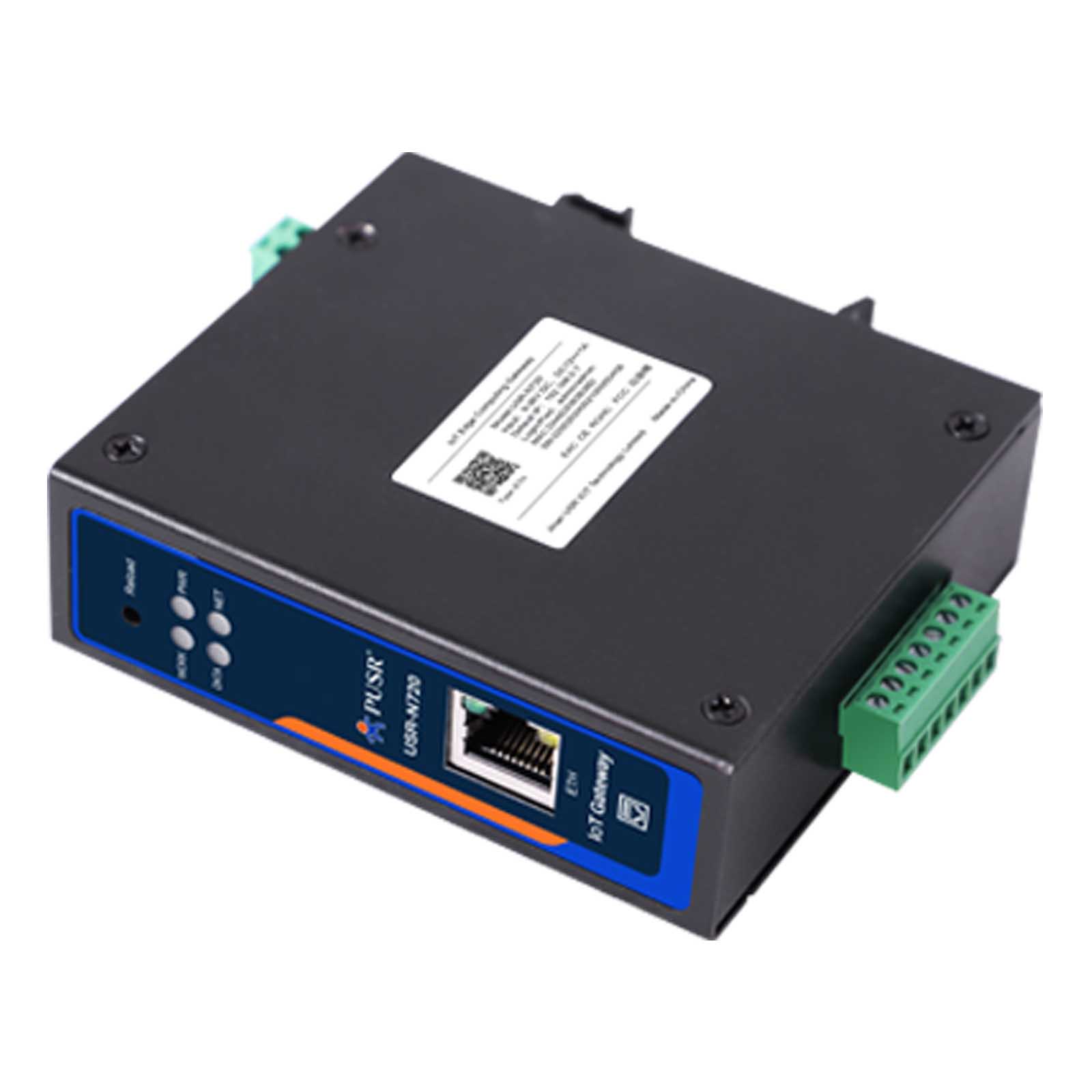

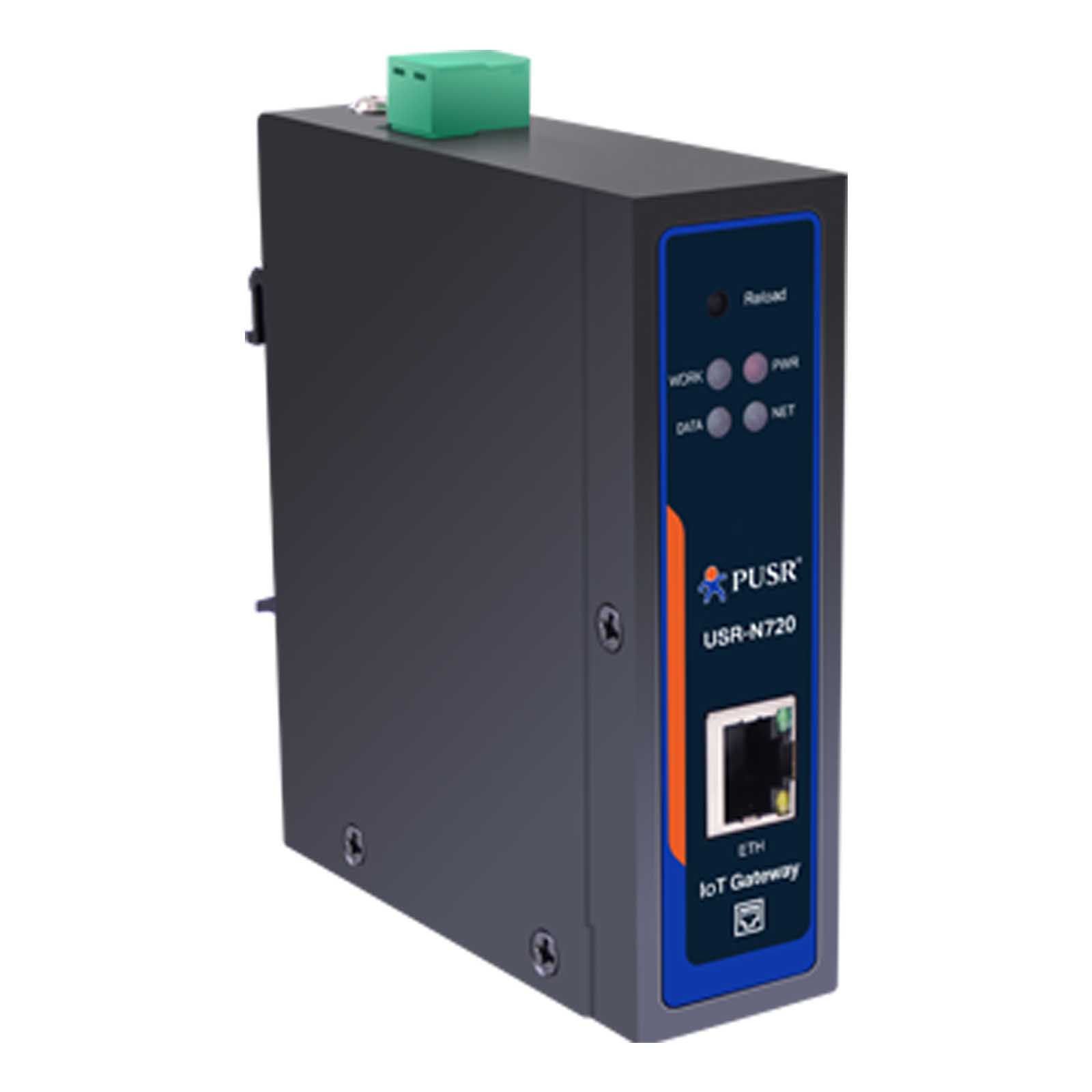

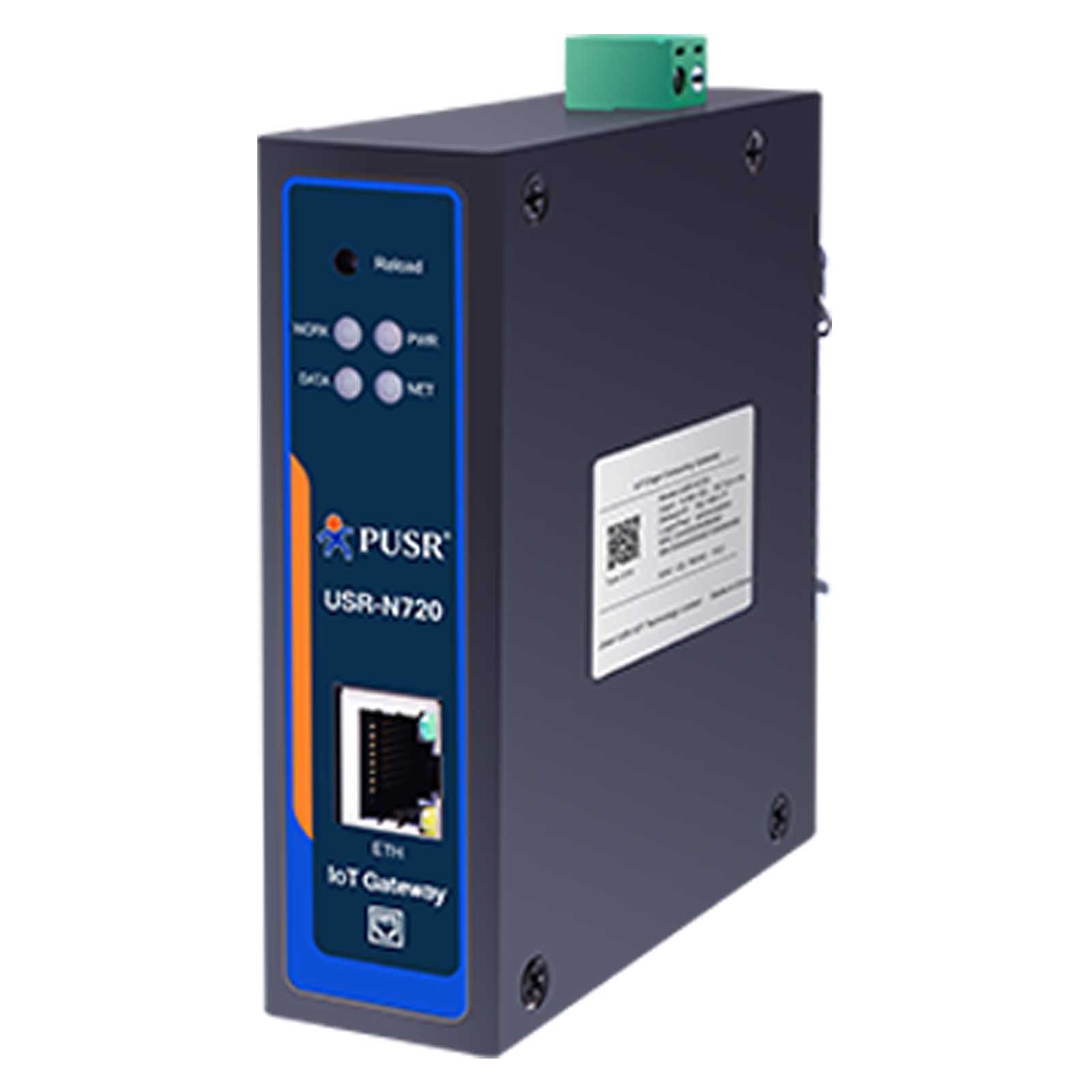

USR-N720-ETH
|
|
|
Processor
|
RISC-V core |
|
Frequency
|
Up to 600MHZ |
|
Power
|
|
|
Power Supply
|
DC 9-36V, 2-pin terminal blocks |
|
Consumption
|
Avr: 75mA@12V Max: 85mA@12V |
|
Ethernet
|
|
|
Port Number
|
1 x RJ45 |
|
Rate
|
10 /100 Mbps, auto MDI/MDX |
|
Protection
|
2KV electromagnetic isolation |
|
Serial Port
|
|
|
Port Number
|
2 x RS485, 7-pin terminal blocks |
|
Baud rate
|
600 bps~230400 bps |
|
Data Bits
|
7, 8 |
|
Stop Bit(s)
|
1, 2 |
|
Parity Bit
|
None, Even, Odd |
|
Physical Character
|
|
|
Dimensions(mm)
|
98.5 x 30 x 86 (not including terminal blocks) 118.5 x 30 x 95.1 (Including teiminal blocks) |
|
Installation
|
DIN rail or wall mounting |
|
Operating Temperature
|
-40～85℃ |
|
Storage Temperature
|
-40~105℃ |
|
Operating Humility
|
5%～95%（Non-condensing） |
|
Storage Humility
|
5%～95%（Non-condensing） |
|
Basic Features
|
|
|
Network protocol
|
IP,TCP,MQTT,SSL/TLS,ICMP,ARP,DNS,NTP,DHCP, IPv4 |
|
IP Assignment
|
Static/DHCP |
|
DNS Service
|
√ |
|
Built-in Webpage
|
√ |
|
Config Method
|
Built-in Webpage, Config Software |
|
Work Mode
|
TCP Server/TCP client 2x independent TCP connection supported |
|
Edge acquisition protocol
|
Modbus RTU, DLT645/2007 |
|
Data reporting format
|
Json, Modbus TCP |
|
Data points
|
Up to 1000 points |
|
MQTT
|
Standard MQTT protocol Easy access to mainstream paltform: Thingsboard, AWS, Azure, etc. 2x independent MQTT connection supported |
|
SSL Encryption
|
√ |
|
Offline data cache
|
External SD card |
|
Others
|
|
|
Certificate
|
*CE, *FCC, *RoHS, *WEEE |
