NOWOŚĆ

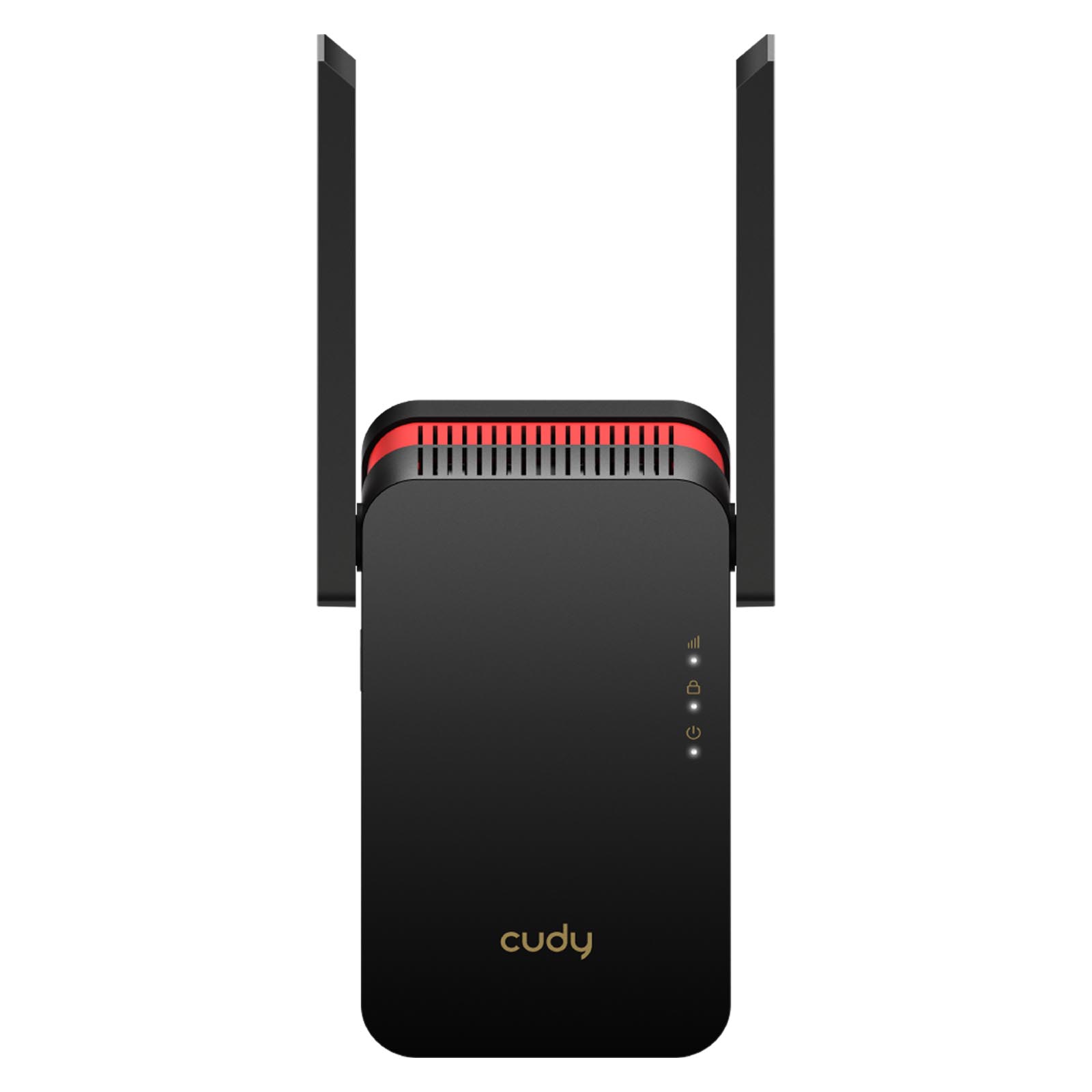

Cudy RE3000

Cudy RE3000 to wzmacniacz sygnału Wi-Fi 6 AX3000 Mesh. Wzmacniacz sygnału wyposażony jest w AX3000 WiFi 6 o dużej przepustowości port Gigabit Ethernet.

Wystarczy nacisnąć przyciski WPS, aby natychmiast zakończyć konfigurację, a hasło pozostanie takie samo jak w przypadku oryginalnego Wi-Fi.

Whole-Home Mesh

Tworzy jednolity zasięg, który zawsze łączy użytkownika z najlepszym węzłem Wi-Fi.

Łatwa konfiguracja

Naciśnij przyciski WPS i wprowadź oryginalną nazwę i hasło Wi-Fi.

Najważniejsze cechy:

Współpracuje z każdym routerem Wi-Fi
Dual-Band Wi-Fi 6 AX3000 (2402 Mb/s w 5 GHz i 574 Mb/s w 2,4 GHz
Dwurdzeniowy procesor Cortex-A53 1,3 GHz
Obsługa OFDMA, Beamforming i MU-MIMO
1x port Gigabit Ethernet 10/100/1000 Mb/s
1x WPS
Do 50 podłączonych urządzeń
Satelita Cudy Mesh + Access Point + Wzmacniacz sygnału
Wielopasmowy jednoczesny backhaul
Ethernet Backhaul
Aplkacja Cudy App

Cudy RE3000
Wersja modelu	RE3000 1.0
CPU
CPU Details	1.3 GHz Dual-Core, ARM Cortex-A53
Memory/Storage
Flash/ROM	16 MB (128 Mbit) NOR
DDR/RAM	256 MB (2 Gbit) DDR3
Wireless
5 GHz Wi-Fi Speed	2402 Mbps
2.4 GHz Wi-Fi Speed	574 Mbps
5 GHz Wi-Fi Streams	3T3R (3×3 MIMO)
2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
Wi-Fi Antennas	2× Fixed, 1 × Internal
2.4 GHz Antenna Gain Max	2.1dBi
5 GHz Antenna Gain Max	3.9dBi
FEM or PA/LNA	5 GHz: 3× Internal 2.4 GHz: 2× Internal
Range Performance	Max: 150 m (492 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')
Interfaces
Gigabit RJ45 Ports	1
LED	Signal Strength WPS Power
Physical Buttons	WPS Button Reset Button
Power Input	AC Plug
Power Input Note	EU, US, UK Plug are Available
Power
Power Methods	AC
AC	100V ~ 240V
Reliability
Environment	Operating Temperature: 0 ℃ ~ 50 ℃ (32 ℉ ~ 122 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing
Certifications
Certifications	FCC, CE
Mechanical
Install in a Daisy Chain	Recommend to install less than 3 repeaters in a wireless chain.
Installation	Plug-In-Socket
Dimension	129.6×80×48.6 mm 5.1×3.15×1.91 inches
Product Weight	EU: 279 g (9.84 oz.) UK: 282 g (9.95 oz.) US: 276 g (9.74 oz.)

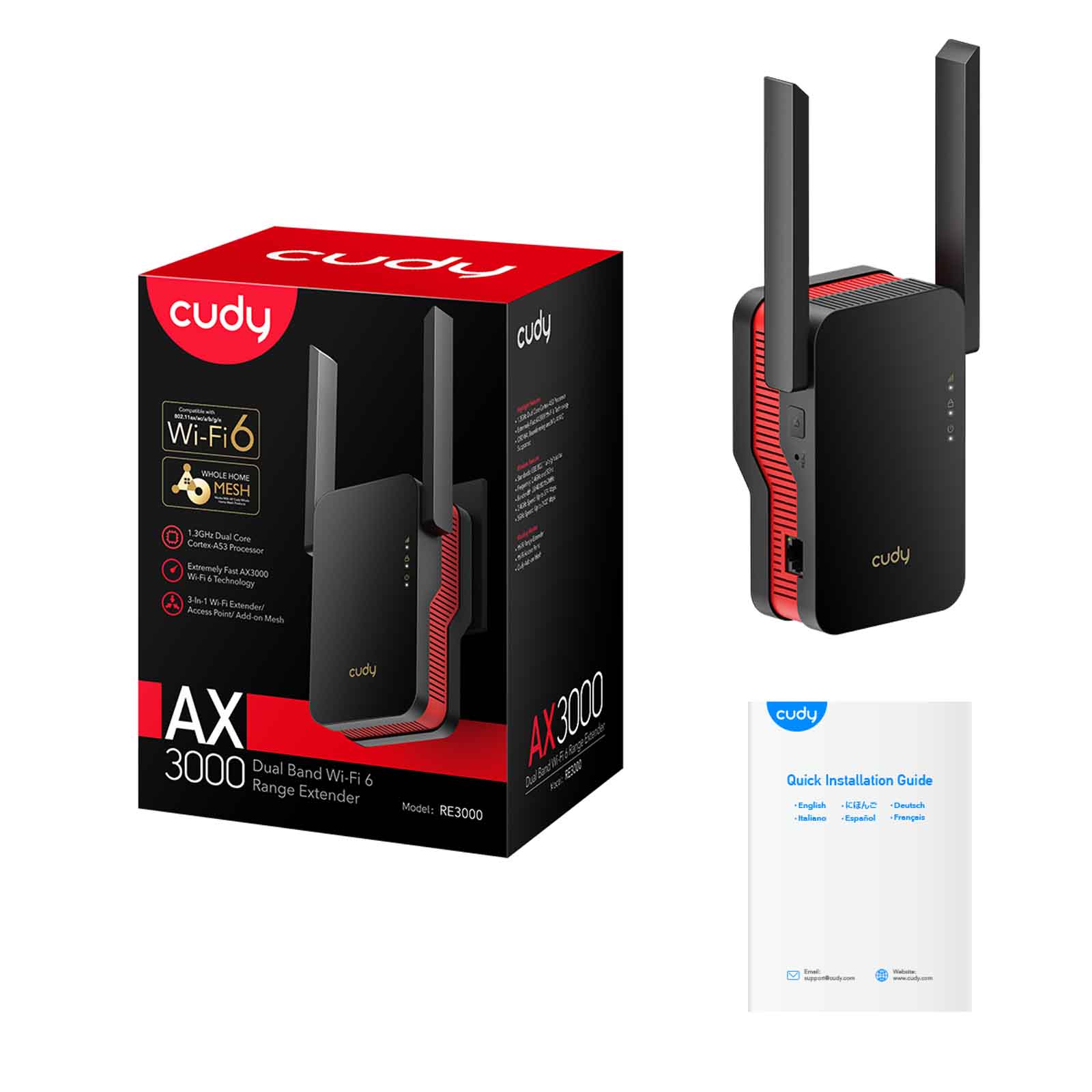

Package Content
Package Content	RE3000 Installation Guide
Ordering Information
Retail Package Weight	EU: 417 g (14.71 oz.) UK: 405 g (14.29 oz.) US: 422 g (14.89 oz.)
Retail Package Dimension	161×120×96 mm 6.34×4.72×3.78 inches
Units per Carton	30
Carton Net Weight	EU: 12.5 kg (27.56 lbs) UK: 12.1 kg (26.68 lbs) US: 12.7 kg (28 lbs)
Carton Gross Weight	EU: 13.3 kg (29.32 lbs) UK: 13.1 kg (28.88 lbs) US: 13.2 kg (29.1 lbs)
Carton Dimension	50.4×37.7×34.1 cm 19.84×14.84×13.43 inches

Software
Wersja modelu	RE3000 1.0
Wireless
Wi-Fi Standards	Wi-Fi 6
Max Wi-Fi Modulation	1024-QAM
Wi-Fi Efficiency	OFDMA MU-MIMO BSS Color
Max Capacity	512
Recommended Client Upper Limit	50
Max Wi-Fi Channel Width	160 MHz
Wi-Fi Security	WPA/WPA2/WPA3
WPS	True
General
Operation Modes	Access Point Range Extender
Mesh	Cudy Mesh Satellite
Mesh Backhaul	Wireless Backhaul Wired Backhaul
Multi-Band Backhaul	True
System
LED Control	True
Local Control Method	Config Web Page App Control
Remote Control Method	App Control
Firmware Upgrade	Local Update App (Over the Air) Online Update
Reliability	Timed Reboot Backup and Restore
Dashboard
Panel	Connected Devices Host Network Status Wi-Fi Status LAN Status System Version
System
Diagnostic Tools	Ping Traceroute NSLookup System Log
Languages	English Bengali Catalan Czech German Greek Spanish French Hebrew Croatian Hungarian Italian Japanese Khmer Korean Dutch Norwegian Polish Portuguese Romanian Russian Slovak Swedish Thai Turkish Ukrainian Vietnamese Simplified Chinese Traditional Chinese
Dashboard
Charts	Mesh Topology
General
Internet Failover Sequence	Wired Wireless
