Cudy LT300
|
|
Wersja modelu
|
LT300 2.0 |
CPU
|
|
CPU Details |
580 MHZ Single-Core, MIPS24KEC
|
Memory/Storage
|
|
Flash/ROM |
8 MB (64 Mbit ) NOR
|
DDR/RAM |
64 MB (512 Mbit) DDR2
|
Cellular
|
|
Cellular Standards |
4G Cat. 4
|
Cellular Antennas |
2× Fixed
|
SIM Options |
1× Nano SIM Slot
|
Available Versions |
EU, CN
|
EU Version Cellular
|
|
Suitable Region |
Europe, Middle East, Africa
|
Max DL Speed |
150 Mbps (LTE-FDD), 130 Mbps (LTE-TDD)
|
Max UL Speed |
50 Mbps (LTE-FDD), 30 Mbps (LTE-TDD)
|
Advanced |
DL 2×2 MIMO
|
Cellular Bands |
LTE-FDD: B1/3/5/7/8/20/28
LTE-TDD: B38/40/41 WCDMA: B1/5/8 |
Wireless
|
|
2.4 GHz Wi-Fi Speed |
300 Mbps
|
2.4 GHz Wi-Fi Streams |
2T2R (2×2 MIMO)
|
Wi-Fi Antennas |
2× Internal
|
2.4 GHz Antenna Gain Max |
2.83 dBi
|
FEM or PA/LNA |
2.4 GHz: 2× Internal
|
Range Performance |
Max: 100 m (328 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
Wall Performance |
One wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 10 cm (4'') |

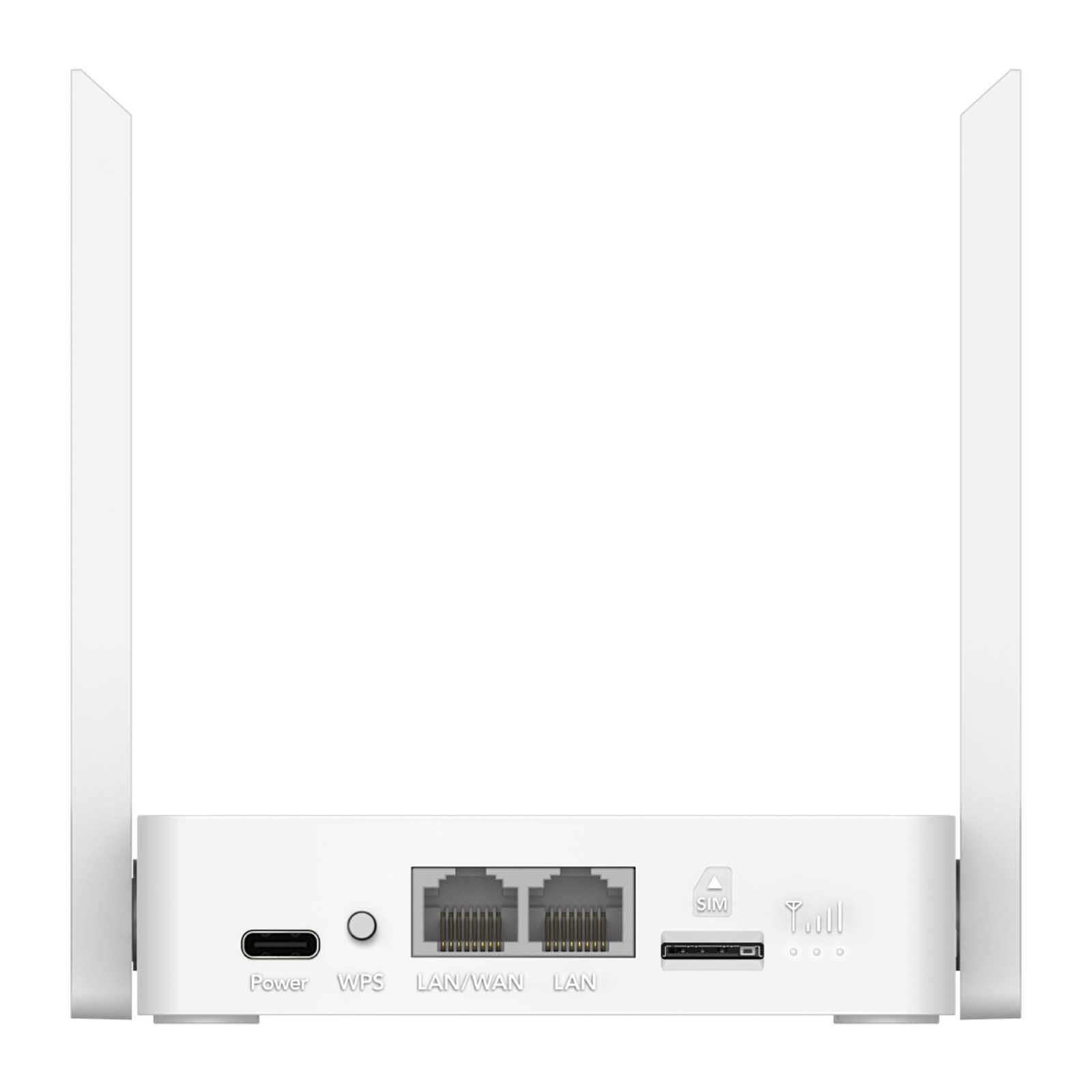

Interfaces
|
|
Physical Buttons |
WPS Button Reset Button
|
10/100 Mbps RJ45 Ports |
2
|
Ethernet Notes |
1× RJ45 port is WAN/LAN configurable, and the rest are LAN ports
|
LED |
System Cellular Signal Strength
|
Power Input |
DC Jack
|
Power
|
|
Power Methods |
DC
|
DC Input |
12V 1A
|
Power Adapter |
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC |
Max Power Consumption (W) |
8W
|
Idle Power Consumption (W) |
3W
|
Reliability
|
|
EMC |
ESD: Contact: 4kV; Air: 8kV
|
Environment |
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Operating Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 90% non-condensing |
Certifications
|
|
Certifications
|
FCC, CE |
Mechanical
|
|
Dimension |
118×80×27.5 mm
4.65×3.15×1.08 inches |
Product Weight |
172.2 g (6.07 oz.)
|
Installation |
Desktop
|

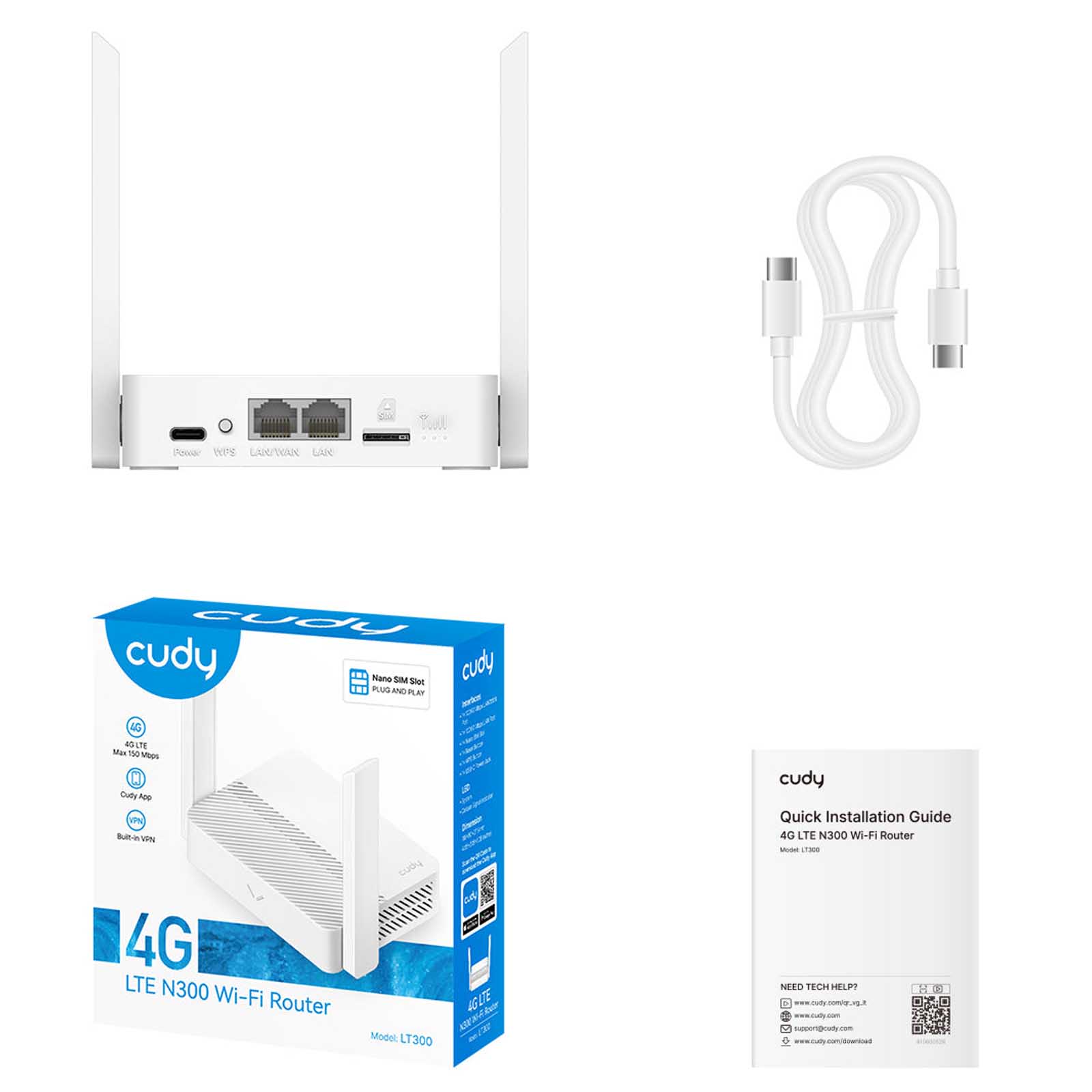

Package Content
|
|
Package Content
|
LT300 Power Adapter Ethernet Cable Installation Guide |
Ordering Information
|
|
Retail Package Weight |
EU: 366.5 g (12.93 oz.)
|
Retail Package Dimension |
176×140.5×56 mm
6.93×5.53×2.2 inches |
Units per Carton |
40
|
Carton Net Weight |
EU: 14.62 kg (32.23 lbs)
|
Carton Gross Weight |
EU: 15.44 kg (34.04 lbs)
|
Carton Dimension |
60×30×37.5 cm
23.62×11.81×14.76 inches |
Software
|
|
Wersja modelu
|
LT300 2.0 |
Wireless
|
|
Wi-Fi Standards |
Wi-Fi 4
|
Max Wi-Fi Modulation |
64-QAM
|
Max Capacity |
64
|
Recommended Client Upper Limit |
30
|
Max Wi-Fi Channel Width |
40 MHz
|
Wi-Fi Security |
WPA/WPA2/WPA3
|
Guest Network |
2.4 GHz
|
WPS |
True
|
General
|
|
Operation Modes |
Cellular Router Wi-Fi Router WISP
|
Cellular APN |
Band Select (Band Lock) Cellular Mode Select Data Roaming APN Profile Manual APN Profile MBN MTU Value
|
Cellular Mode |
4G Only 3G Only Auto
|
WAN Mode |
DHCP Static IP PPPOE L2TP PPTP
|
Internet Failover Sequence |
WAN WISP Cellular
|
Network
|
|
QoS |
Per-User Rate Limiting
|
DHCP |
Address Reservation DHCP Client List Server
|
IP Versions |
IPv4/IPv6
|
IPv6 Protocols |
Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
|
IPTV/VLAN |
Bridge Tag VLAN
|
TTL Customization |
Extend Spoof Custom
|
IGMP |
IGMP Proxy IGMP Snooping
|
Forwarding |
Port Forwarding Port Triggering UPnP DMZ
|
Firewall |
SPI Firewall DoS Protection Block PING
|
Application Layer Gateway |
IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
|
Utilities
|
|
VPN Server |
WireGuard OpenVPN PPTP L2TP
|
VPN Client |
WireGuard OpenVPN PPTP L2TP
|
DNS Options |
Manual DNS Rebind Protection Override Clients' DNS
|
Online Detection |
True
|
Management
|
|
Parental Controls |
Profiles Settings Offline Time Online Time Pause the Internet Web Filter
|
All Devices Management |
Wi-Fi Time Schedule MAC Filter IP/MAC Binding
|
Per-Devices Management |
Internet On/Off VPN On/Off Online Time Schedule Device Rename
|
Content Management |
Domain Filter IP Filter
|
System
|
|
Local Control Method |
Config Web Page App Control
|
Remote Control Method |
App Control Config Page via HTTP
|
Firmware Upgrade |
Local Update App (Over the Air) Online Update
|
Diagnostic Tools |
Diagnosis Ping Traceroute NSLookup System Log
|
Languages |
English German Spanish French Hebrew Italian Portuguese Korean
|
Reliability |
Timed Reboot Backup and Restore
|
Dashboard
|
|
Panel |
Internet Status Devices Management Cellular Status WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
|
Charts |
Cellular Speed Internet Speed WISP Speed Wi-Fi Speed
|
