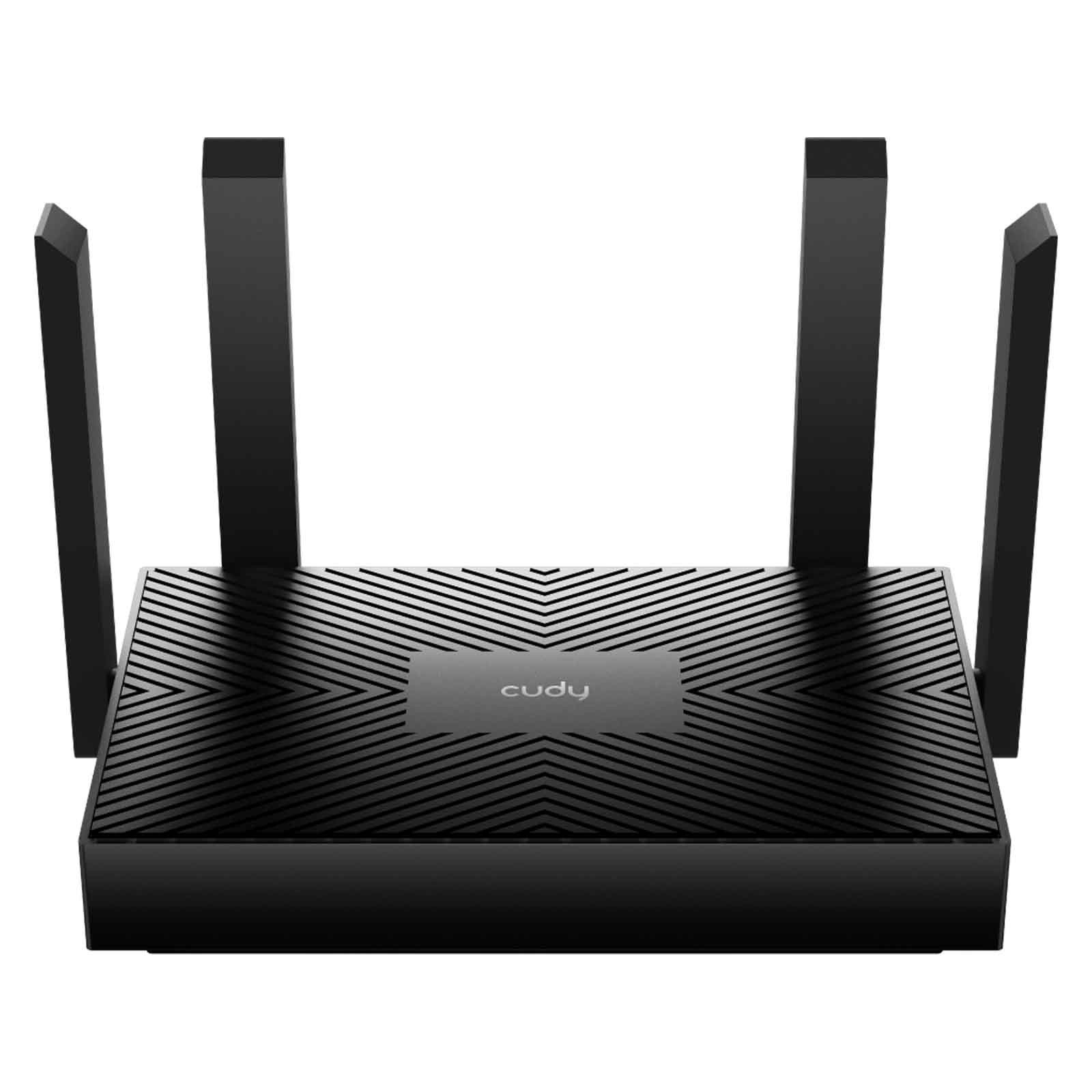

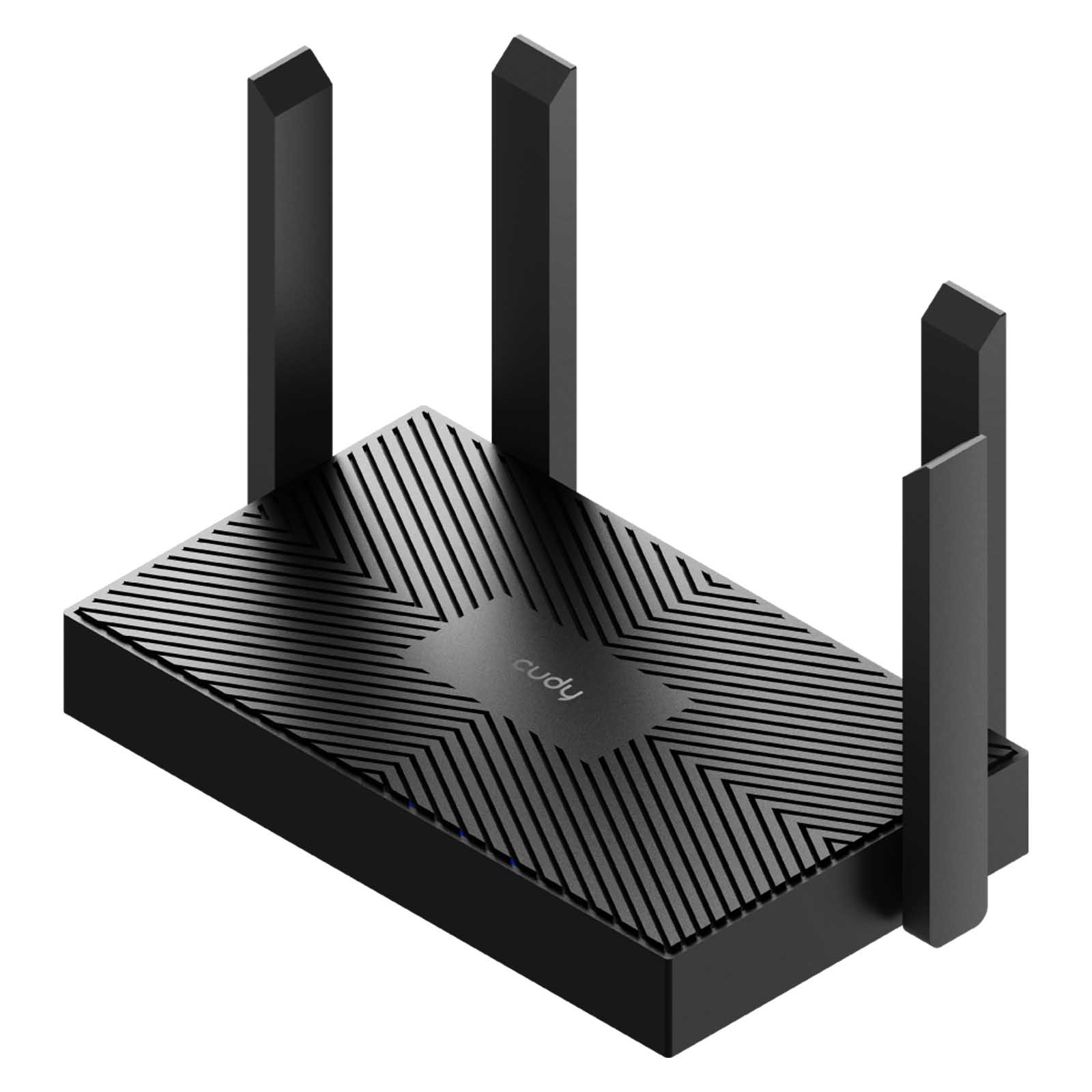

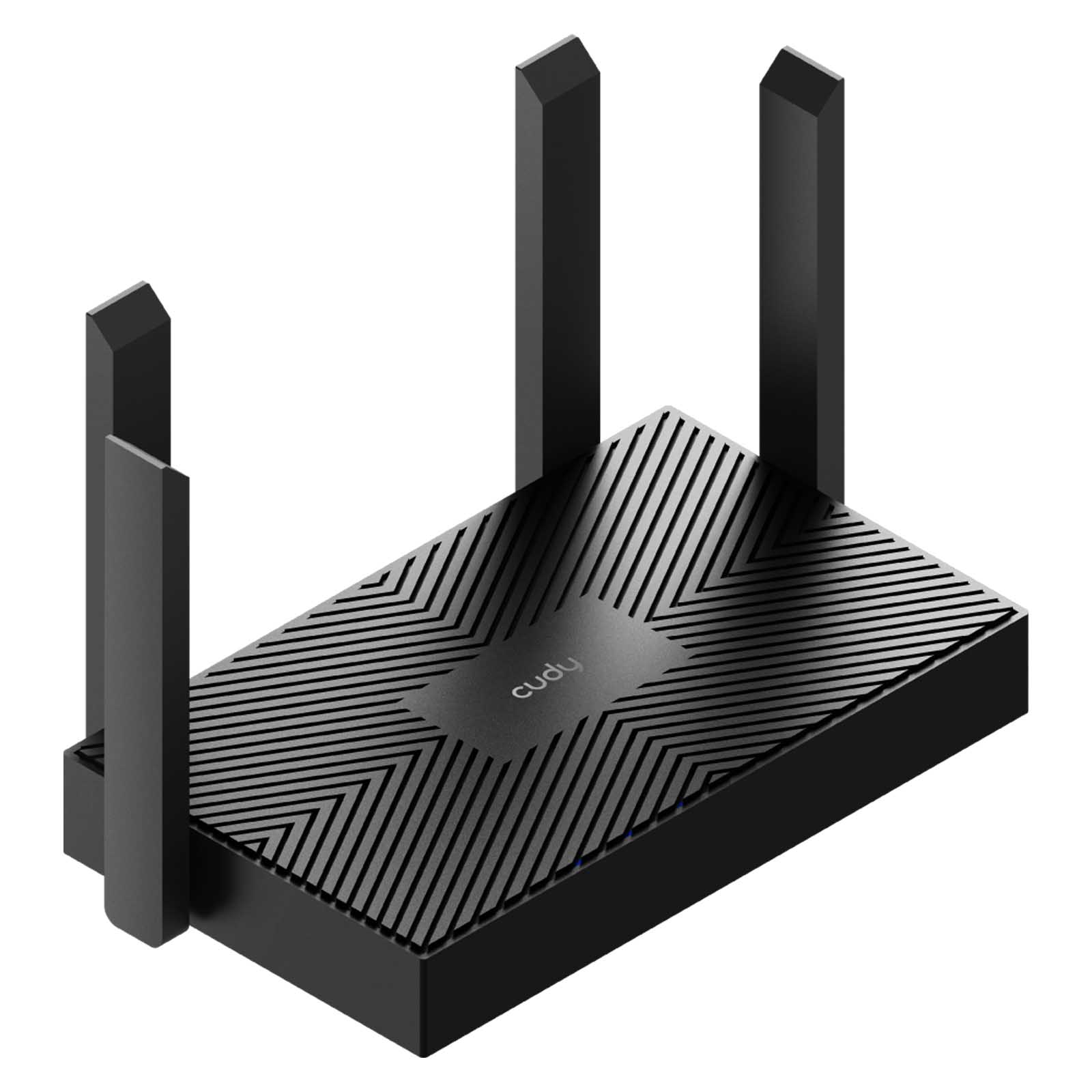

Cudy WR1500

Cudy WR1500 to gigabitowy router Wi-Fi 6 typu Mesh AX1500. Cudy WR1300 to gigabitowy router WiFi 6 z 4x portami Gigabit Ethernet oraz funkcjami wydajności OFDMA i MU-MIMO, odpowiedni do domowego internetu o prędkości do 1000 Mb/s, umożliwiający podłączenie wielu urządzeń i zmniejszenie opóźnień.

Prędkość Wi-Fi 6 do 1,5 Gb/s

Ciesz się płynnym przesyłaniem strumieniowym, pobieraniem plików i grami dzięki niezwykle szybkiej prędkości Wi-Fi 6.

Szeroki zasięg

Technologia Beamforming i cztery anteny zapewniają skupiony odbiór sygnału przez urządzenia znajdujące się w dużej odległości.

Aplikacja Cudy

Zarządzanie siecią z telefonu. Ten model obsługuje zdalne sterowanie w chmurze i sterowanie lokalne za pośrednictwem aplikacji Cudy.

Najważniejsze cechy:

4-strumieniowe dwuzakresowe Wi-Fi 6
1201 Mbps + 300 Mbps Wi-Fi
4x porty Gigabit Ethernet
Obejmuje 100m² (1,100 ft²)
Do 60 podłączonych urządzeń
Beamforming
Tryby pracy: Wi-Fi Router, Access Point, Range Extender, WISP, Client
Cudy Mesh, VPN Client
IPv6/IPv4, IPTV/VLAN, TR069
Aplkacja Cudy App, Cloud Control

Cudy WR1500
Wersja modelu	WR1500 1.0
CPU
CPU Details	1 GHz CPU
Memory/Storage
Flash/ROM	16 MB (128 Mbit) NOR
DDR/RAM	128 MB (1 Gbit) DDR2
Wireless
5 GHz Wi-Fi Speed	1201 Mbps
2.4 GHz Wi-Fi Speed	300 Mbps
5 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
2.4 GHz Wi-Fi Streams	2T2R (2×2 MIMO)
Wi-Fi Antennas	4× Fixed
FEM or PA/LNA	5 GHz: 2× Internal 2.4 GHz: 2× Internal
Beamforming	True
Range Performance	Max: 170 m (558 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions.
Wall Performance	Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'')

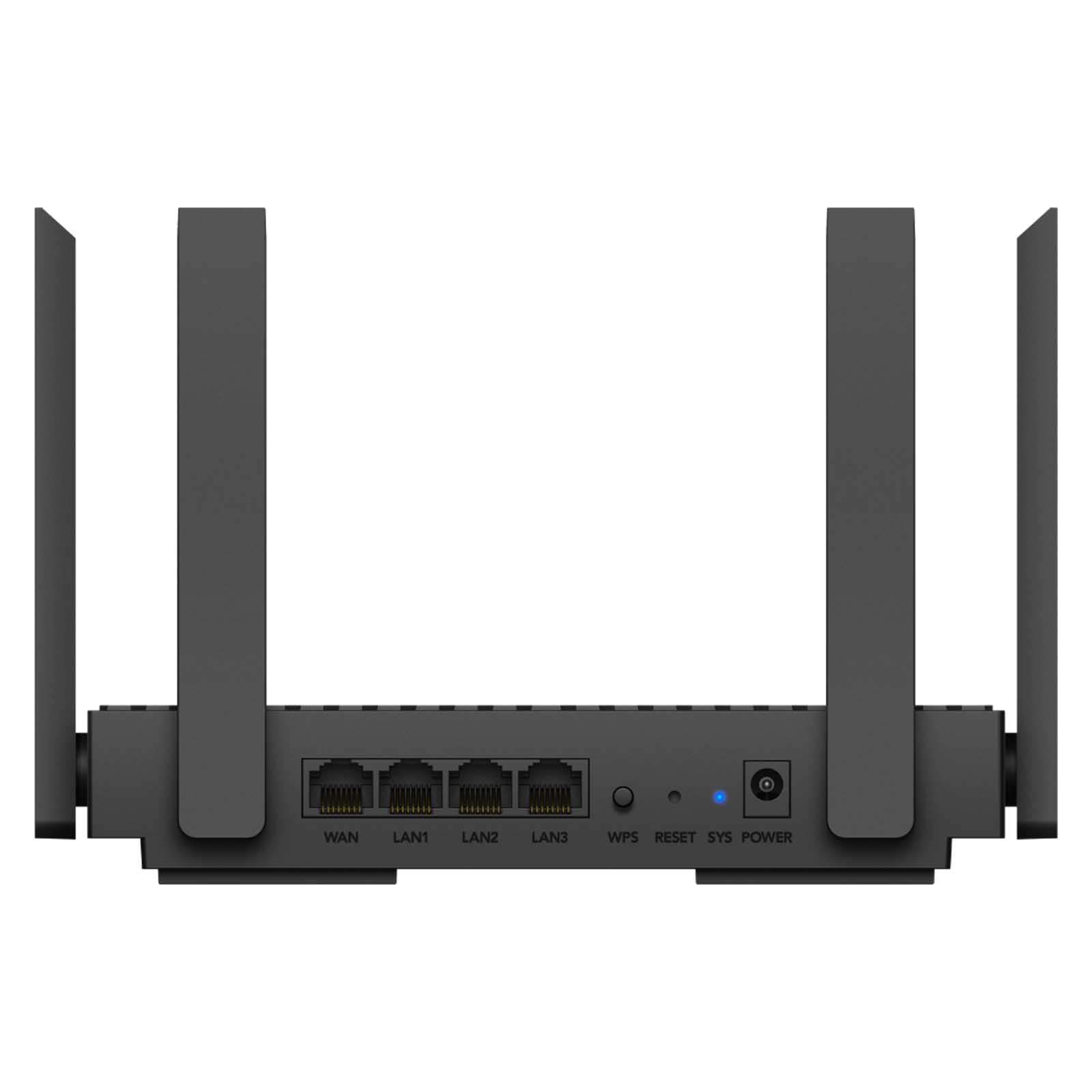

Interfaces
Gigabit RJ45 Ports	4
Ethernet Notes	1× WAN port, the rest are LAN ports
LED	System
Physical Buttons	WPS Button Reset Button
Power Input	DC Jack
Power
Power Methods	DC
DC Input	12V 1A
Power Adapter	Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1A DC
Max Power Consumption (W)	10W
Reliability
Environment	Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing
Certifications
Certifications	FCC, CE
Mechanical
Installation	Desktop Wall-mount
Dimension	183.3×109×35 mm 7.22×4.29×1.38 inches
Product Weight	EU: 220 g (7.76 oz.) ZH: 224.6 g (7.92 oz.)

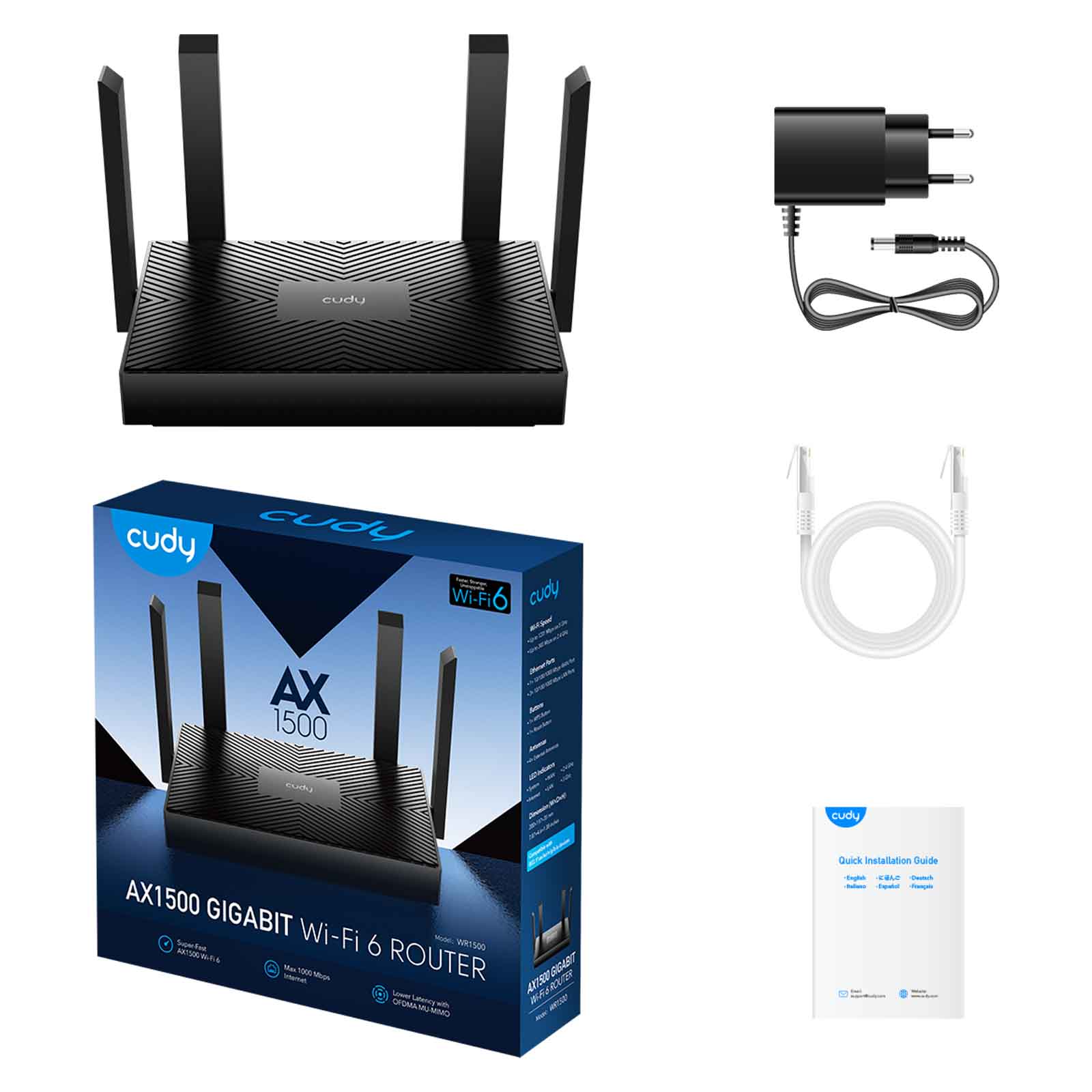

Package Content
Package Content	WR1500 Power Adapter Ethernet Cable Installation Guide
Ordering Information
Retail Package Weight	EU: 559 g (19.72 oz.) BR: 549 g (19.37 oz.) ZH: 519.3 g (18.32 oz.)
Retail Package Dimension	240×230×60 mm 9.45×9.06×2.36 inches
Units per Carton	20
Carton Dimension	49.5×32.5×48 cm 19.49×12.8×18.9 inches
Carton Gross Weight	EU: 12.1 kg (26.68 lbs) BR: 12.1 kg (26.68 lbs) ZH: 11.4 kg (25.13 lbs)
Carton Net Weight	EU: 11.2 kg (24.69 lbs) BR: 11.0 kg (24.25 lbs) ZH: 10.5 kg (23.15 lbs)

Cudy WR1500
Wersja modelu	WR1500 1.0
Wireless
Wi-Fi Standards	Wi-Fi 6
Max Wi-Fi Modulation	1024-QAM
Wi-Fi Efficiency	Beamforming
Max Capacity	128
Recommended Client Upper Limit	60
Max Wi-Fi Channel Width	80 MHz
Wi-Fi Security	WPA/WPA2/WPA3
WPS	True
General
Operation Modes	Wi-Fi Router Access Point Range Extender WISP Client
Mesh	Cudy Mesh
Mesh Backhaul	Wireless Backhaul Wired Backhaul
Multi-Band Backhaul	True
WAN Mode	DHCP Static IP PPPOE PPTP L2TP
Network
QoS	Per-User Rate Limiting
DHCP	Address Reservation DHCP Client List Server
IP Versions	IPv4/IPv6
IPv6 Protocols	Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
IPTV/VLAN	Bridge Tag VLAN VoIP VLAN IPTV VLAN
IGMP	IGMP Proxy IGMP Snooping
Forwarding	Port Forwarding UPnP DMZ
Firewall	SPI Firewall Block PING
Utilities
VPN Client	PPTP L2TP Wireguard
DNS Options	Manual DNS Rebind Protection Override Clients' DNS
Wake on LAN	True
Online Detection	True
Management
Parental Controls	Profiles Settings Offline Time Online Time Pause the Internet Web Filter
All Devices Management	Wi-Fi Time Schedule MAC Filter IP/MAC Binding
Per-Devices Management	Internet On/Off VPN On/Off Online Time Schedule Device Rename
Content Management	Domain Filter IP Filter
System
Local Control Method	Config Web Page App Control
Remote Control Method	Config Page via HTTPS App Control TR069/TR098/TR111/TR143/TR181
Firmware Upgrade	Local Update App (Over the Air) Online Update
Reliability	Timed Reboot Backup and Restore
Diagnostic Tools	Diagnosis Ping Traceroute NSLookup System Log
Languages	English Portuguese Russian Spanish Ukrainian French Simplified Chinese
Dashboard
Panel	Internet Status Mesh Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
Charts	Mesh Topology Internet Speed WISP Speed Wi-Fi Speed
