Cudy WR1200
|
|
CPU |
580 MHz Single-Core, MIPS24KEC
|
Memory/Storage
|
|
Flash/ROM |
8 MB (64 Mbit ) NOR
|
DDR/RAM |
64 MB (512 Mbit) DDR2
|
Wireless
|
|
5 GHz Wi-Fi Speed |
867 Mbps
|
2.4 GHz Wi-Fi Speed |
300 Mbps
|
5 GHz Wi-Fi Streams |
2T2R (2×2 MIMO)
|
2.4 GHz Wi-Fi Streams |
2T2R (2×2 MIMO)
|
Wi-Fi Antennas |
4× Fixed
|
Beamforming |
True
|
Range Performance |
Max: 170 m (558 ft)
Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. |
Wall Performance |
Two wooden walls with thickness < 10 cm (4'')
One concrete wall with thickness < 20 cm (7'') |
Interfaces
|
|

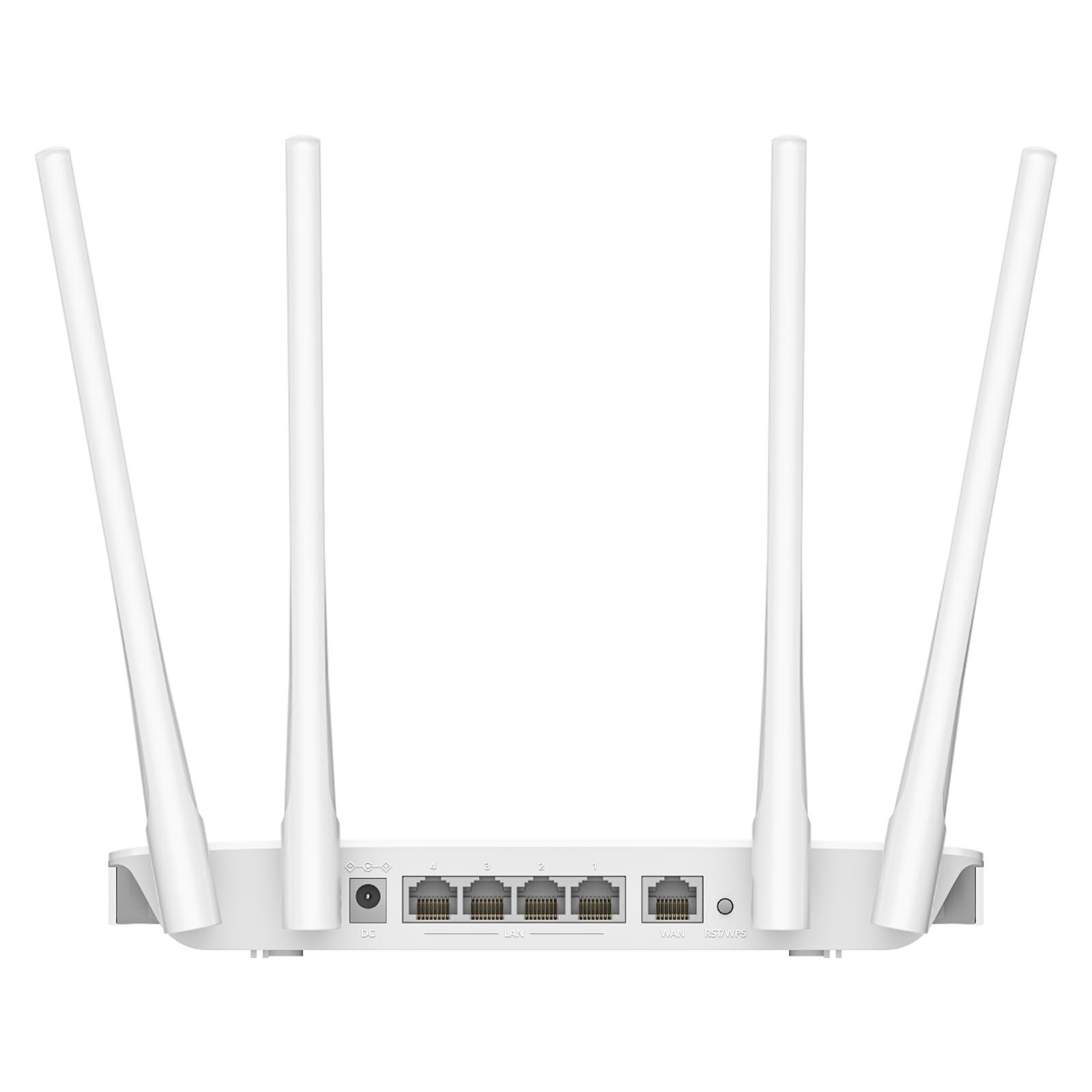

10/100 Mbps RJ45 Ports |
5
|
Ethernet Notes |
1× WAN port, the rest are LAN ports
|

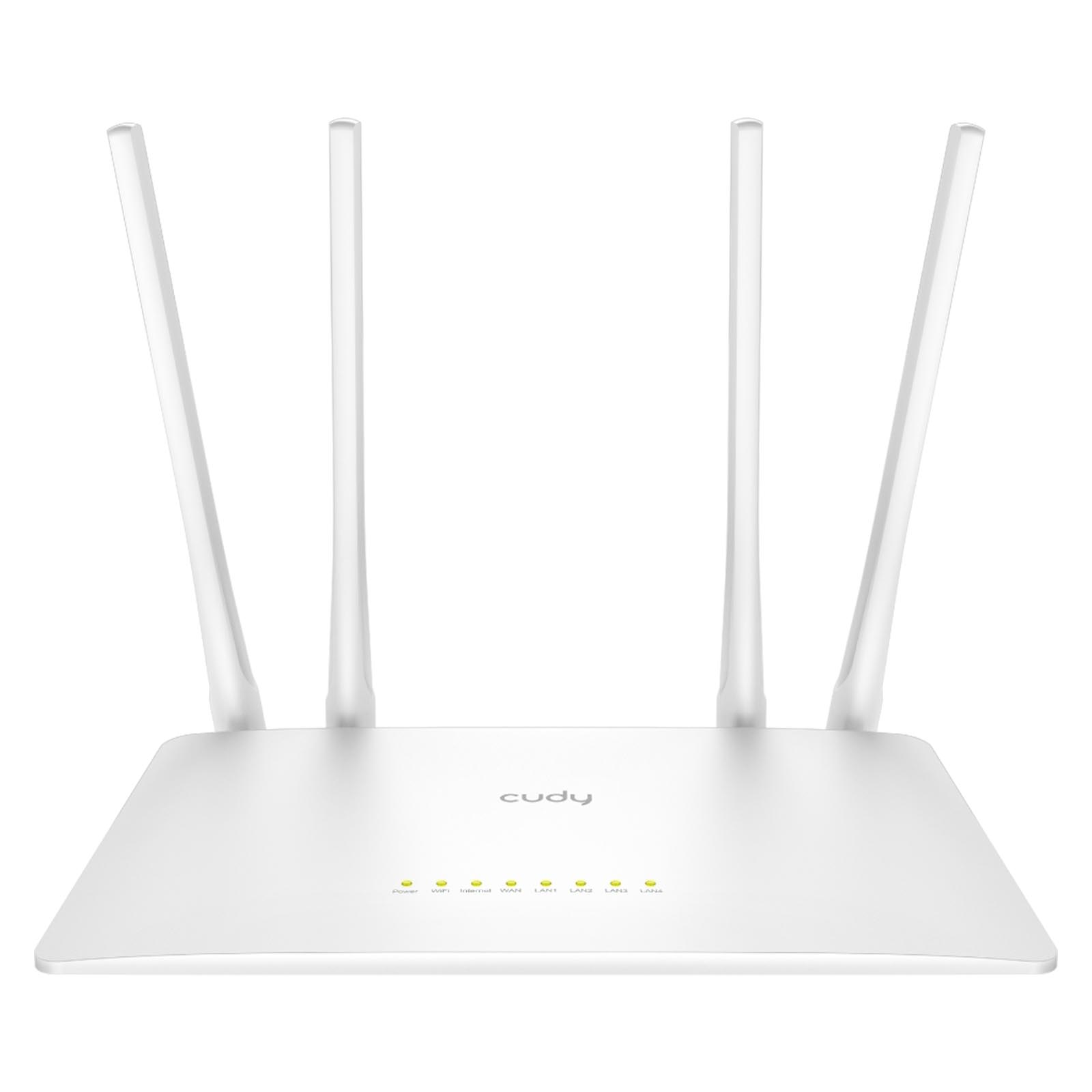

LED |
Power Internet Speed/Link/ACT of Ethernet Port Wi-Fi
|
Physical Buttons |
WPS Button Reset Button
|
Power Input |
DC Jack
|
Power
|
|
Power Methods |
DC
|
DC |
12V 1A
|
Power Adapter |
Input: 100 ~ 240 V, 50/60 Hz AC
Output: 12V 1A DC |
Reliability
|
|
Environment |
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉)
Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensing |
Certifications
|
|
FCC, CE | |
Mechanical
|
|
Installation |
Desktop Wall-mount
|
Dimension |
220 x 135 x 30 mm
8.66 x 5.31 x 1.18 inches |
Product Weight |
EU: 259 g (9.14 oz.) EU: 249.4 g (8.8 oz.)
|

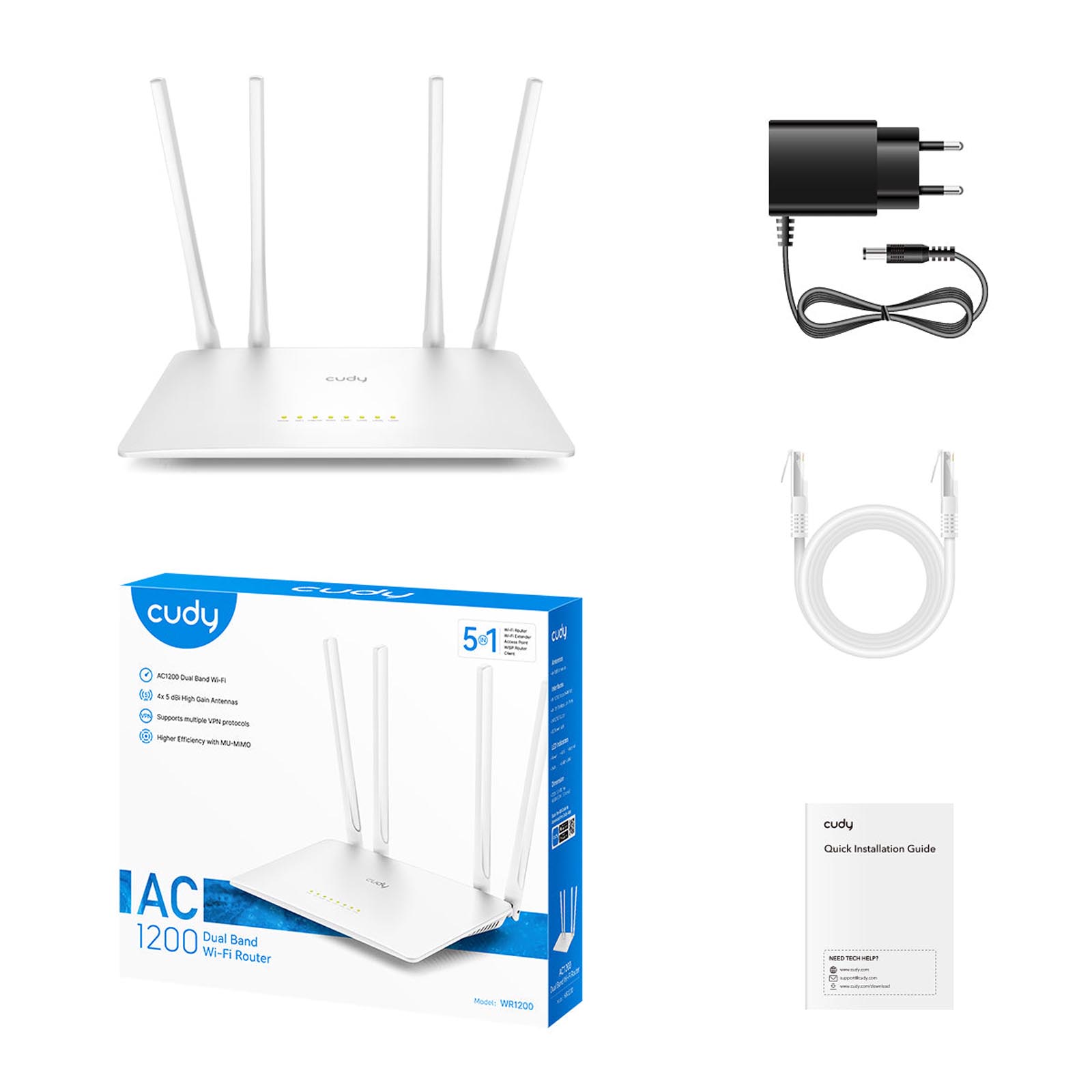

Package Content |
WR1200 Power Adapter Ethernet Cable Installation Guide
|
Wersja modelu
|
Wersja WR1200 2.1 |
Wireless
|
|
Standardy Wi-Fi |
Wi-Fi 5
|
Maksymalna modulacja Wi-Fi |
modulacja 256-QAM
|
Wydajność Wi-Fi |
Technologia MU-MIMO
|
Notatka dotycząca wydajności Wi-Fi |
MU-MIMO dostępne w paśmie 5 GHz
|
Maksymalna pojemność |
128
|
Zalecany górny limit klienta |
40
|
Maksymalna szerokość kanału Wi-Fi |
80MHz
|
Bezpieczeństwo Wi-Fi |
WPA/WPA2/WPA3
|
Sieć gościnna |
Częstotliwość: 2,4 GHz, 5 GHz
|
WPS |
Tak
|
General
|
|
Tryby pracy |
Router Wi-Fi Punkt dostępu Rozszerzacz zasięgu Bridge Klient
|
Tryb WAN |
DHCP Statyczny adres IP PPPOE PPTP L2TP
|
Sekwencja przełączania awaryjnego Internetu |
Bridge
|
Network
|
|
QoS |
Per-User Rate Limiting
|
DHCP |
Address Reservation DHCP Client List Server
|
IP Versions |
IPv4/IPv6
|
IPv6 Protocols |
Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite
|
IPTV/VLAN |
Bridge Tag VLAN VoIP VLAN IPTV VLAN
|
TTL Customization |
Extend Spoof Custom
|
IGMP |
IGMP Proxy IGMP Snooping
|
Forwarding |
Port Forwarding Port Triggering UPnP DMZ
|
Firewall |
SPI Firewall DoS Protection Block PING
|
Application Layer Gateway |
IPSec Passthrough L2TP Passthrough PPTP Passthrough FTP Passthrough TFTP Passthrough H323 Passthrough SIP Passthrough RTSP Passthrough
|
Utilities
|
|
VPN Client |
OpenVPN Wireguard PPTP L2TP
|
DNS Options |
Manual DNS Rebind Protection Override Clients' DNS
|
Wake on LAN |
True
|
Online Detection |
True
|
Management
|
|
Parental Controls |
Profiles Settings Offline Time Online Time Pause the Internet Web Filter
|
All Devices Management |
Wi-Fi Time Schedule MAC Filter IP/MAC Binding
|
Per-Devices Management |
Internet On/Off VPN On/Off Online Time Schedule Device Rename
|
Content Management |
Domain Filter IP Filter
|
System
|
|
Local Control Method |
Config Web Page App Control
|
Remote Control Method |
TR069/TR098/TR111/TR143/TR181 Config Page via HTTP
|
Firmware Upgrade |
Local Update
|
Reliability |
Timed Reboot Backup and Restore
|
Diagnostic Tools |
Diagnosis Ping Traceroute NSLookup System Log
|
Languages |
English German Spanish French Hebrew Italian Portuguese Ukrainian Russian Korean
|
Dashboard
|
|
Panel |
Internet Status Devices Management WAN Status LAN Status WISP Status Wi-Fi Status VPN Status DHCP Server Status System Version
|
Charts |
Internet Speed WISP Speed Wi-Fi Speed
|
