NOWOŚĆ

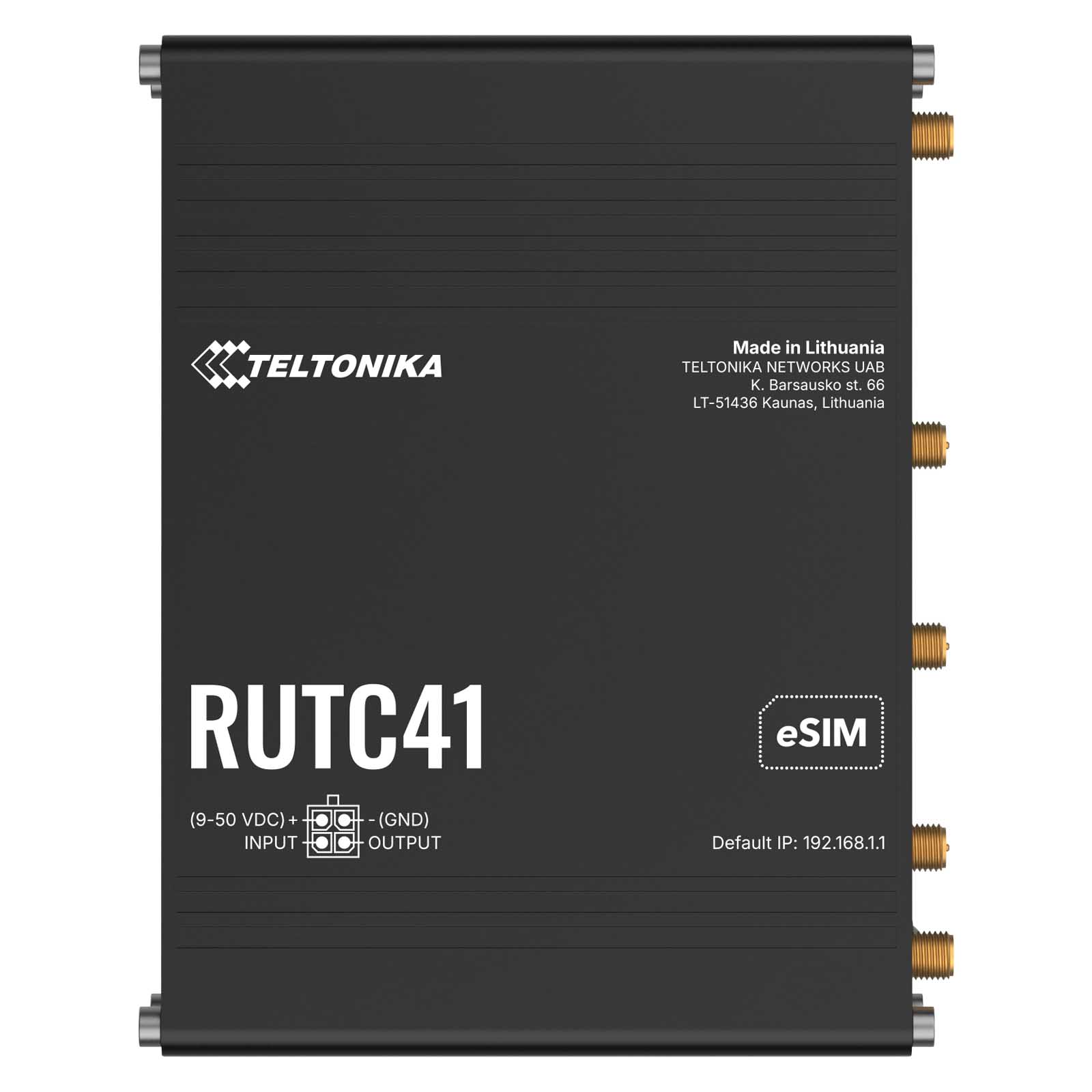

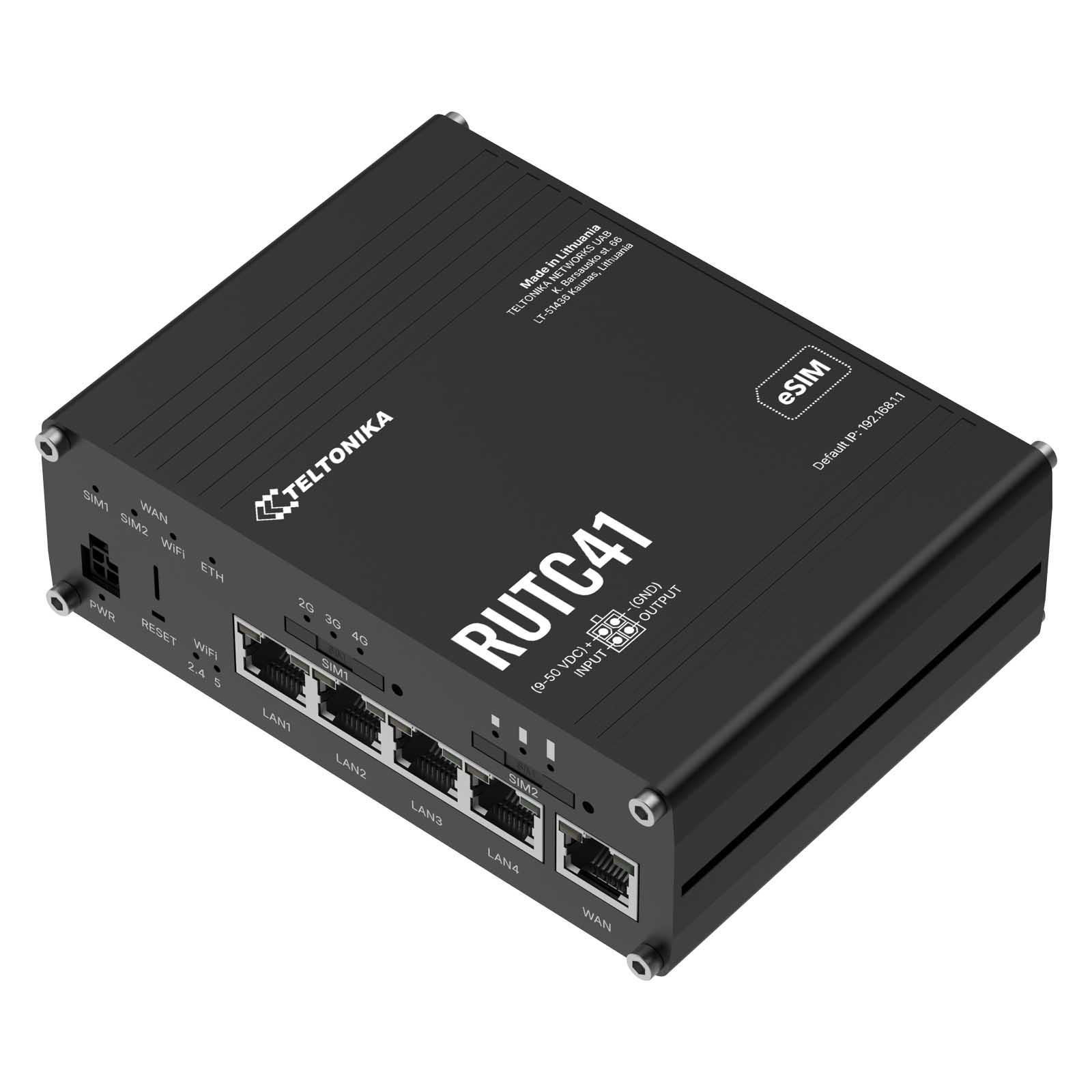

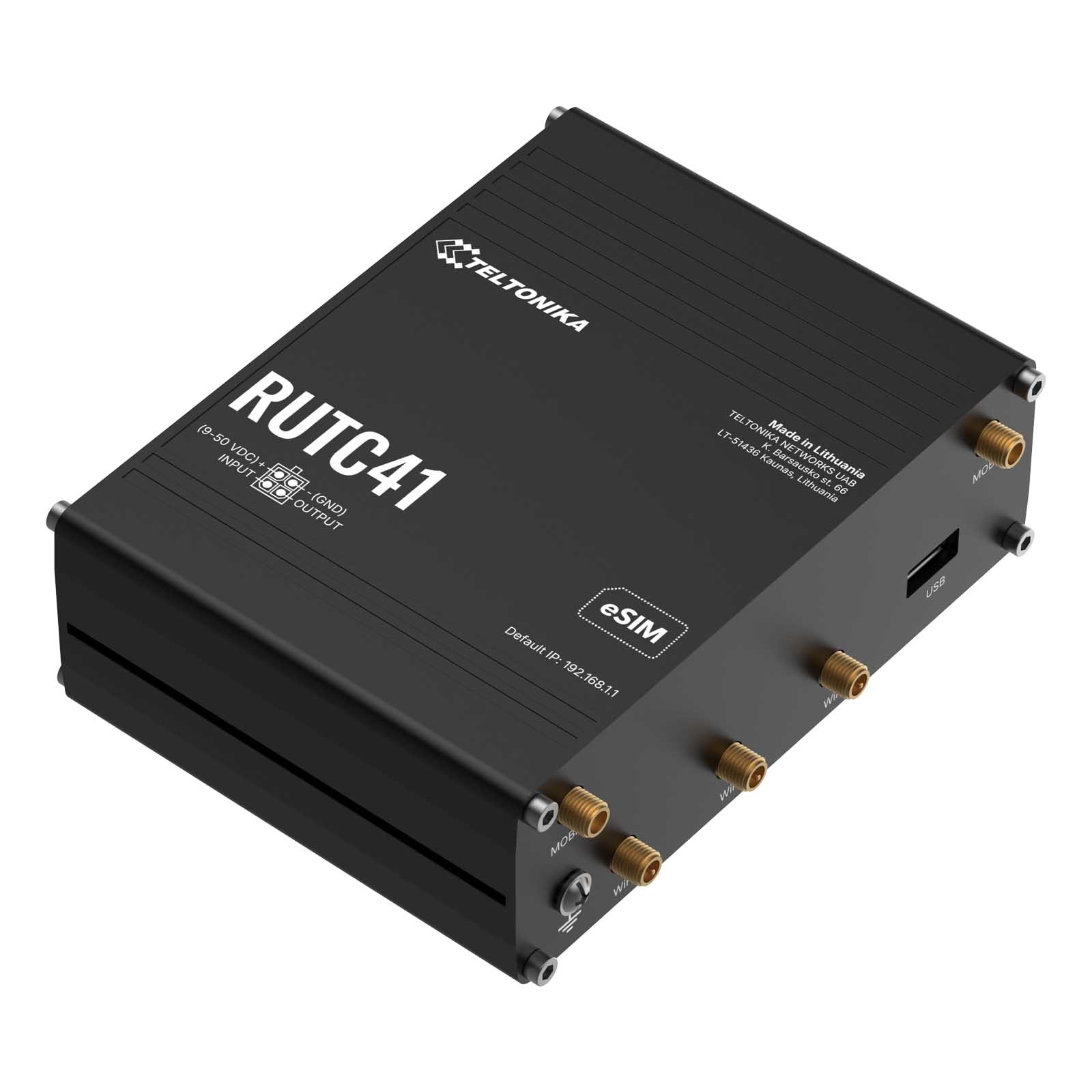

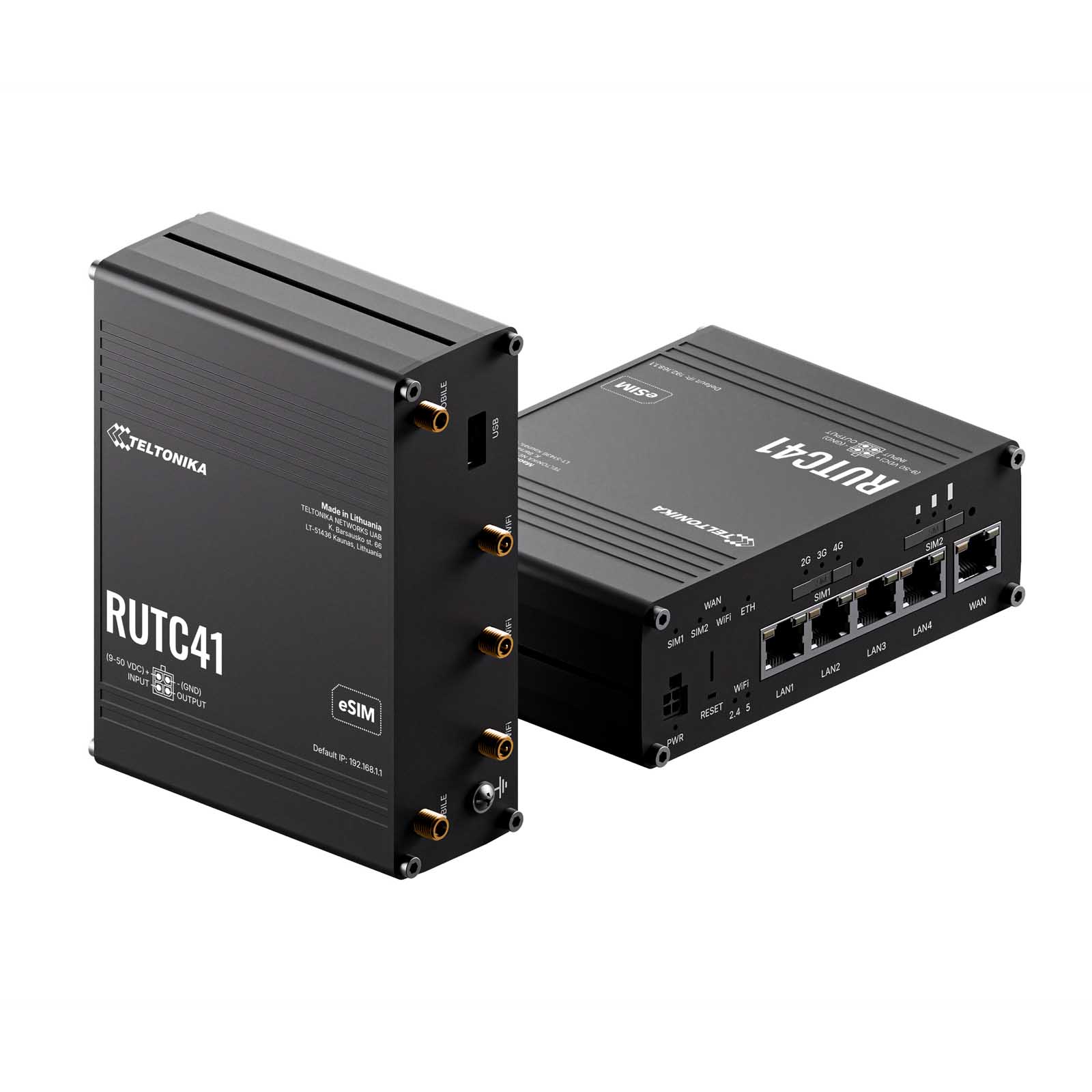

Teltonika RUTC41 edge router 4G (RUTC41000000)

Teltonika RUTC41 (RUTC41000000) to wydajne rozwiązanie do przetwarzania danych na miejscu, przeznaczone do zastosowań przemysłowych.

Teltonika RUTC41 to wysokowydajne, a jednocześnie kompaktowe i wszechstronne urządzenie, które łączy w sobie łączność 4G Cat 4 z zaawansowaną mocą obliczeniową oraz dwuzakresowym Wi-Fi 6. Wbudowana obsługa platformy Docker pozwala na uruchamianie aplikacji kontenerowych bezpośrednio na routerze. Wyposażony w 1 GB pamięci RAM, dwurdzeniowy procesor 1,3 GHz oraz funkcje RutOS klasy przemysłowej, RUTC41 zapewnia bezpieczną sieć, integrację z chmurą oraz rejestrator danych w czasie rzeczywistym w jednym wytrzymałym urządzeniu.

Stworzony z myślą o kontroli: inteligentne zarządzanie energią słoneczną

W obliczu zmiennych cen energii i zmiennych warunków produkcji w instalacjach fotowoltaicznych tradycyjna logika falowników i optymalizacja oparta na chmurze nie są w stanie nadążyć. Router brzegowy 4G RUTC41 firmy Teltonika zapewnia niezawodną warstwę sterowania na miejscu, która interpretuje dane w czasie rzeczywistym, zachowuje autonomię w przypadku utraty łączności oraz lokalnie realizuje inteligentną optymalizację. Dzięki dwurdzeniowemu procesorowi, obsłudze Docker oraz przewodowym połączeniom z falownikiem, RUTC41 umożliwia szybkie podejmowanie decyzji na obrzeżach sieci, jednocześnie bezpiecznie przekazując dane operacyjne do zdalnych platform analitycznych.

Teltonika RUTC41 (RUTC41000000) obsługuje pasma:

4G (LTE-FDD): B1, B3, B5, B7, B8, B20, B28
4G (LTE-TDD): B38, B40, B41
3G: B1, B8
2G: B3, B8

Zawartość zestawu:

Router RUTC41
Zasilacz 24 W - Teltonika PR3P2EU3 zasilacz 12V 2A
2x anteny LTE (obrotowe, męskie SMA) - Teltonika PR1US440 antena LTE 4dBi SMA
3x anteny WiFi (obrotowe, RP-SMA męskie) - Teltonika PR14RD35 antena Wi-Fi dual-band RP-SMA
Kabel ethernet (1.5 m)
Adapter na kartę SIM - Teltonika SIM adapter kit (PR5MEC19)
QSG (skrócona instrukcja obsługi)
Pudełko

Najważniejsze cechy:

4G Cat 4 - Wykorzystaj inteligentniejsze przetwarzanie brzegowe w sieci 4G
Większa moc obliczeniowa - Dwurdzeniowy procesor, 1 GB pamięci RAM i 8 GB pamięci flash
Obsługa Dockera - Uruchamiaj kontenery Docker bezpośrednio na routerze, aby wdrażać niestandardowe rozwiązania
Wi-Fi 6 - Dwuzakresowa technologia MIMO dla wielu użytkowników zapewniająca doskonałą wydajność sieci bezprzewodowej

Mobile

Mobile module: 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/ 5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL Mbps
eSIM: Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
3GPP Release: Release 9
SIM switch: 2 SIM cards and 1 eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, SIM provider, operator, network type, cell ID, LAC, TAC, ARFCN, UARFCN, EARFCN
SMS: SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD: Supports sending and reading Unstructured Supplementary Service Data messages
Block/Allow list: Operator block/allow list (by country or separate operators)
Multiple PDN: Possibility to use different PDNs for multiple network access and services
Band management: Band lock, Used band status display
SIM idle protection service: Provides the possibility to configure the router to periodically switch to the unused SIM card and establish a data connection in order to prevent the SIM card from being blocked
SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
APN: Auto APN
Bridge: Direct connection (bridge) between mobile ISP and device on LAN
Passthrough: Router assigns its mobile WAN IP address to another device on LAN
Framed routing: Framed routing: support an IP network behind 5G UE

Wireless

Wireless mode: 802.11b/g/n/ac/ax (Wi-Fi 6) with data transmission rates up to 2402Mbps on 5GHz, 576Mbps on 2.4GHz (Dual Band, MU-MIMO)
Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
SSID/ESSID: SSID stealth mode and access control based on MAC address
WiFi users: Up to 500 simultaneous connections
Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)
Wireless MAC filter: Allowlist, blocklist
Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information
TravelMate: Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

WAN: 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN: 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall: Port forward, traffic rules, custom rules, TTL target customisation
Firewall status page: View all your Firewall statistics, rules, and rule counters
Port management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
Network topology: Visual representation of your network, showing which devices are connected to which other devices
DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
DDNS: Supported >77 service providers, others can be configured manually
DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
Network backup: Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
Load balancing: Balance Internet traffic over multiple WAN connections
Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
Hotspot 2.0: Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks
SSHFS: Possibility to mount remote file system via SSH protocol
VRF support: Initial virtual routing and forwarding (VRF) support
Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history
IGMP Proxy: Possibility to relay multicast membership messages between hosts and a router, enabling multicast traffic to flow across different network segments
Port Mirroring: Mirroring network traffic on Ethernet ports for monitoring and analysis

Security

802.1x: Port-based network access control client and server support
Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
Firewall: Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
VLAN: Port and tag-based VLAN separation
Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number
WEB filter: Block list for blocking out unwanted websites, allow list for specifying allowed sites only
Access control: Flexible access control of SSH, Web interface, CLI and Telnet
Certificate Manager: Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates

VPN

OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods
OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
GRE: GRE tunnel, GRE tunnel over IPsec support
PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
SSTP: SSTP client instance support
ZeroTier: ZeroTier VPN client support
WireGuard: WireGuard VPN client and server support
Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
Tailscale: Tailscale offers speed, stability, and simplicity over traditional VPNs. Encrypted point-to-point connections using the open source WireGuard protocol
Netbird: Open-source VPN management platform built on top of WireGuard® making it easy to create secure private networks for your organization or home
EoIP: Ethernet over IP (EoIP) Tunneling is a MikroTik RouterOS protocol based on GRE RFC 1701 that creates an Ethernet tunnel between two routers on top of an IP connection
OpenConnect: Cross-platform multi-protocol SSL VPN client which supports a number of VPN protocols

BacNET

Supported modes: Router
Supported connection types: TCP
Configuration options: Support for multiple BACnet/IP interfaces, Network number assignment, Preconfigured BDT entries for BBMD (BACnet Broadcast Management Device)

OPC UA

Supported modes: Client, Server
Supported connection types: TCP

MODBUS

Supported modes: Server, Client
Supported connection types: TCP, USB
Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

Data to Server

Protocol: HTTP(S), MQTT, Azure MQTT
Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

Supported modes: Station, Outstation
Supported connection: TCP

DLMS/COSEM

DLMS Support: DLMS - standard protocol for utility meter data exchange
Supported modes: Client
Supported connection types: TCP, USB

API

Teltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA: Firmware update from server, automatic notification
SSH: SSH (v1, v2)
SMS: SMS status, SMS configuration
Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
Email: Receive email message status alerts of various services
TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT: MQTT Broker, MQTT publisher
SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC: Management API over HTTP/HTTPS
RMS: Teltonika Remote Management System (RMS)

IoT Platforms

ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub: Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
AWS IoT Core: Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

DOCKER

Docker Support: Supports running isolated applications and services using Docker containers, enabling custom software environments and microservices deployment directly on the device

System Characteristics

CPU: Mediatek, Dual-core, 1.3 GHz, ARM Cortex A53
RAM: 1 GB, DDR4
FLASH storage: 16 MB serial NOR flash, 8 GB eMMC Flash

Firmware/Configuration

WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA: Update FW
RMS: Update FW/configuration for multiple devices at once
Keep settings: Update FW without losing current configuration
Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

Operating system: RutOS (OpenWrt based Linux OS)
Supported languages: Busybox shell, Lua, C, C++
Development tools: SDK package with build environment provided
GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
Package Manager: The Package Manager is a service used to install additional software on the device

USB

Data rate: USB 2.0
Applications: Samba share, USB-to-serial
External devices: Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter
Storage formats: FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input/Output

Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high
Output: 1 x Digital Output, Open collector output, max output 50 V, 300 mA
Events: Email, RMS, SMS
I/O juggler: Allows to set certain I/O conditions to initiate event

Power

Connector: 4-pin industrial DC power socket
Input voltage range: 9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive): Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC
Power consumption: Idle: < 5.5 W, Max: < 13.5 W

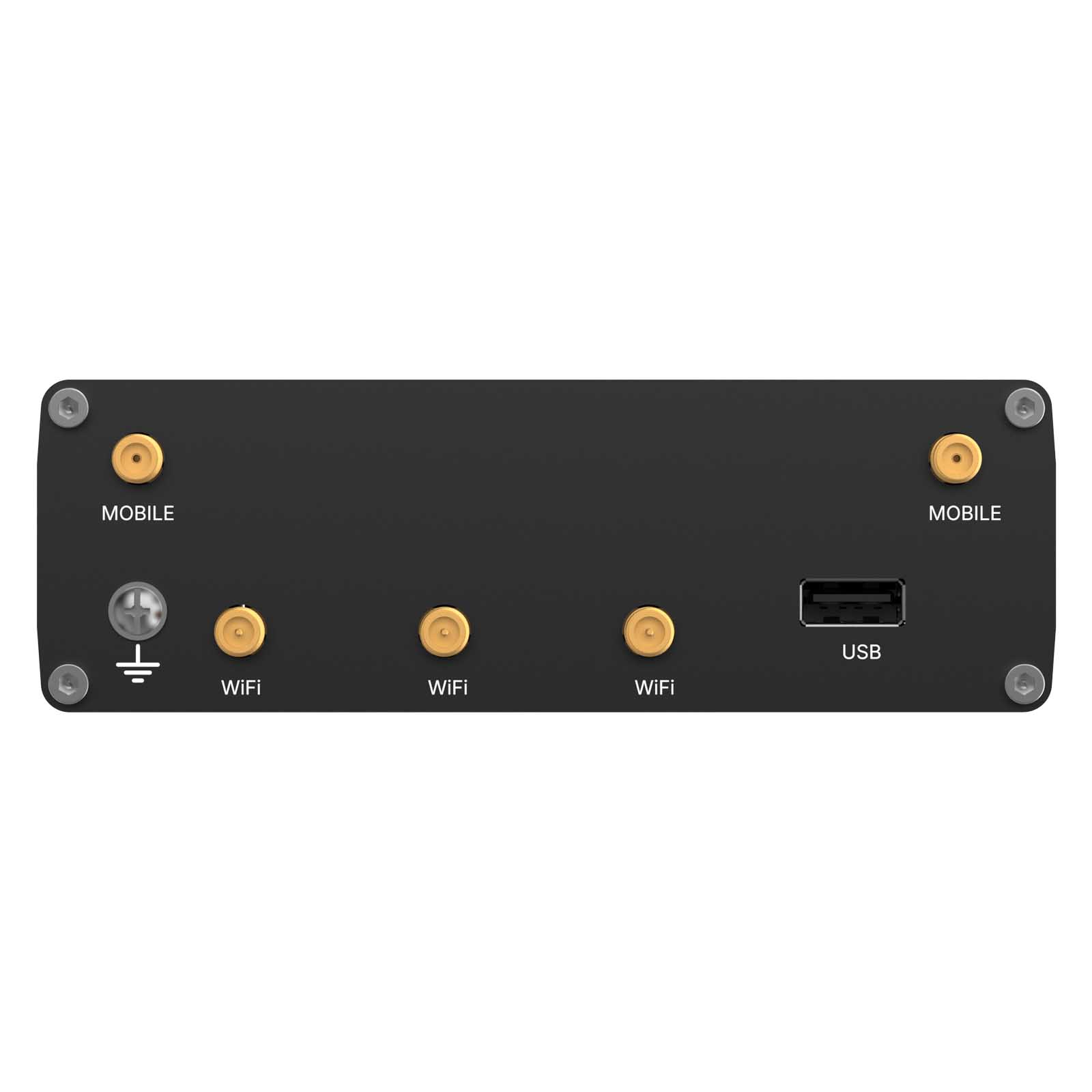

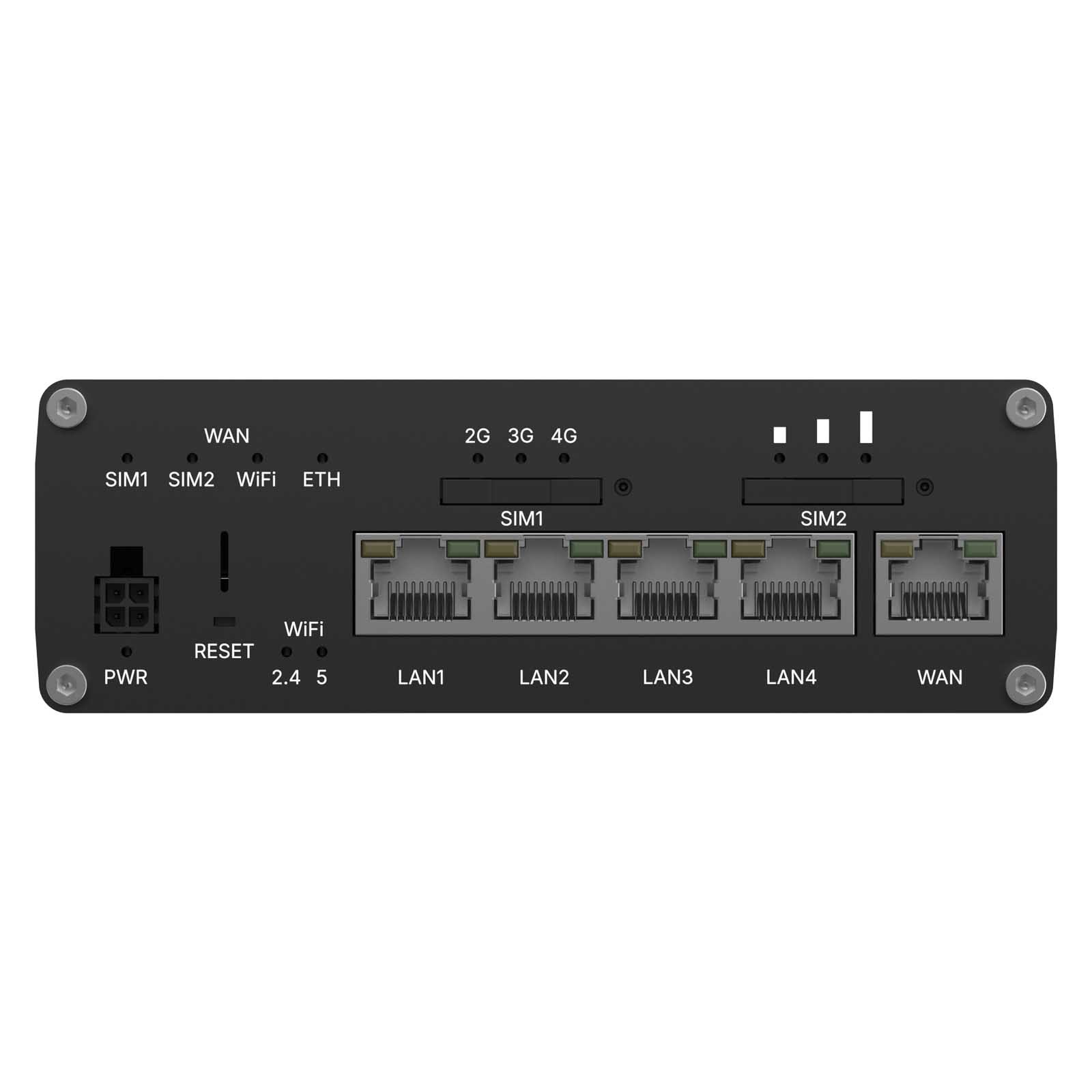

Physical Interfaces

Ethernet: 5 x RJ45 ports, 10/100/1000 Mbps
I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs: 4 x WAN type, 3 x Mobile connection type, 3 x Mobile connection strength, 10 x LAN status, 1 x Power, 2 x 2.4G and 5G Wi-Fi
SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power: 1 x 4-pin power connector
Antennas: 2 x SMA for Mobile, 3 x RP-SMA for Wi-Fi
USB: 1 x USB A port for external devices
Reset: Reboot/User default reset/Factory reset button
Other: 1 x Grounding screw

Physical Specification

Casing material: Anodized aluminium housing and panels
Dimensions (W x H x D): 130.4 x 42.6 x 104 mm
Weight: 480 g
Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature: -40 °C to 75 °C
Operating humidity: 10% to 90% non-condensing
Ingress Protection Rating: IP30

Regulatory & Type Approvals

Regulatory: REACH, RoHS, CE, UKCA, CB, WEEE

Produkty Pokrewne/Powiązane

Teltonika BAT120 zasilacz awaryjny (BAT120000000)

UPS dla urządzeń Teltonika RUT2xx, RUT95x, RUT3xx, RUTXxx, TRB14x, TRB2xx, TSW110, TCR100 oraz nowszych modeli Teltonika

Producent: Teltonika

468,38 zł z VAT 380,80 zł netto

szt

Teltonika PR14RD35 antena Wi-Fi dual-band, 3.5dBi, RP-SMA

Antena Wi-Fi dual-band 2.4/5GHz, wtyk RP-SMA, 3.5dBi

Producent: Teltonika

30,59 zł z VAT 24,87 zł netto

szt

NOWOŚĆ

Teltonika PR1CS530 antena 5G LTE, prosta, 2.8dBi, SMA

Antena 5G LTE, prosta, wkręcana, 2.8dBi, SMA

Producent: Teltonika

27,81 zł z VAT 22,61 zł netto

szt

Teltonika PR1KC640 antena dachowa 5G combo MIMO mobile/GNSS/WiFi, SMA, 3m

Antena dachowa 5G combo MIMO mobile/GNSS/WiFi, SMA 3m

Producent: Teltonika

522,75 zł z VAT 425,00 zł netto

szt

Teltonika PR1KC647 antena dachowa 5G combo MIMO, mobile, SMA, 3m

Antena dachowa 5G

Producent: Teltonika

475,70 zł z VAT 386,75 zł netto

szt

Teltonika PR1KCI49 antena dachowa 5G combo MIMO, mobile/GNSS, SMA, 3m

Antena dachowa 5G Combo MIMO Mobile/GNSS

Producent: Teltonika

509,69 zł z VAT 414,38 zł netto

szt

Teltonika PR1KS536 antena 5G, magnetyczna, mobile, 3.6dBi, SMA, 1,5m

Antena magnetyczna 5G mobile, 3.6dBi, SMA, 1,5m

Producent: Teltonika

49,40 zł z VAT 40,16 zł netto

szt

Teltonika PR1US440 antena LTE, 4dBi, SMA

Antena LTE, wkręcana, SMA, 4dBi

Producent: Teltonika

20,25 zł z VAT 16,46 zł netto

szt

Teltonika PR1US540 antena 5G, mobile, 4.5dBi, SMA

Antena 5G mobile, 4.5dBi, SMA

Producent: Teltonika

21,57 zł z VAT 17,54 zł netto

szt

Teltonika PR2AM20M kabel zasilający samochodowy, 4-piny

Kabel zasilający samochodowy, 4-piny

Producent: Teltonika

34,50 zł z VAT 28,05 zł netto

szt

Teltonika PR2FK20M kabel zasilający z 4-stykowym zaciskiem śrubowym

Kabel zasilający z 4-stykowym zaciskiem śrubowym

Producent: Teltonika

40,39 zł z VAT 32,84 zł netto

szt

Teltonika PR2PP10B kabel zasilający 4-pin na 4-pin

4-pinowy kaebl zasilający z wyjściem na 4-piny

Producent: Teltonika

45,49 zł z VAT 36,98 zł netto

szt

NOWOŚĆ

Teltonika PR315PS3 uniwersalny 4-pinowy zasilacz 24V 1A 24W

Zasilacz 24V 1A 24W wyposażony w 4-pinowy wtyk, przeznaczony do zasilania routerów marki Teltonika
W zestawie wejścia: EU (Typ C), US (Typ A), UK (Typ G) oraz AU (Typ I)

Producent: Teltonika

67,96 zł z VAT 55,25 zł netto

szt

Teltonika PR324EUB pasywny gigabitowy injector PoE 24V 1A 24W

Pasywny gigabitowy Injector PoE 24V 1A 24W

Producent: Teltonika

93,68 zł z VAT 76,16 zł netto

szt

Teltonika PR3P2EU3 4-pinowy zasilacz 12V 2A 24W

Zasilacz 12V 2A 24W wyposażony w 4-pinowy wtyk, przeznaczony do zasilania routerów marki Teltonika

Producent: Teltonika

49,11 zł z VAT 39,93 zł netto

szt

Teltonika PR4MK04K złącze 4-pinowe z zaciskami

4-pinowa wtyczka z zaciskami stykowymi

Producent: Teltonika

28,13 zł z VAT 22,87 zł netto

szt

Teltonika PR5MEC00 Din Rail Kit

Uchwyt do montowania na szynie DIN dla urządzeń Teltonika

Producent: Teltonika

34,50 zł z VAT 28,05 zł netto

szt

Teltonika PR5MEC11 Compact Din Rail Kit (088-00257)

Uchwyt do montowania na szynie DIN dla routerów marki Teltonika

Producent: Teltonika

16,10 zł z VAT 13,09 zł netto

szt

Teltonika PR5MEC12 surface mounting kit

Zestaw do montażu na płaskiej powierzchni np. na biurku czy ścianie

Producent: Teltonika

26,35 zł z VAT 21,42 zł netto

szt

Teltonika PR5MEC19 SIM adapter kit

Zestaw adapterów na kartę SIM

Producent: Teltonika

8,63 zł z VAT 7,02 zł netto

szt

Teltonika PR5MEC21 4-pinowy kabel zasilający z dostępem do wejść/wyjść

4-pinowy zasilacz z dostępem do I/O

Producent: Teltonika

39,98 zł z VAT 32,50 zł netto

szt

Teltonika PR5MEC23 Din Rail Kit Adapter

Uchwyt do montowania na szynie DIN dla urządzeń marki Teltonika

Producent: Teltonika

62,73 zł z VAT 51,00 zł netto

szt

Teltonika PR5MEC32 RJ45 Dust Cover, 5-Pack

Zaślepki otworów RJ45 utrzymują kurz i zanieczyszczenia z dala od nieużywanych portów RJ45. Opakowanie 5 szt.

Producent: Teltonika

24,17 zł z VAT 19,65 zł netto

szt

Teltonika RUTC50 router 5G (RUTC50200000)

Przemysłowy router 5G wyposażony w 5x portów Gigabit Ethernet, dwuzakresowe WiFi o standardzie 802.11ax, Dual-SIM, GNSS (GPS), port USB, 512 MB pamięci RAM DDR3 i oprogramowanie RutOS do zaawansowanych rozwiązań sieciowych

Producent: Teltonika

3 156,40 zł z VAT 2 566,18 zł netto

szt
