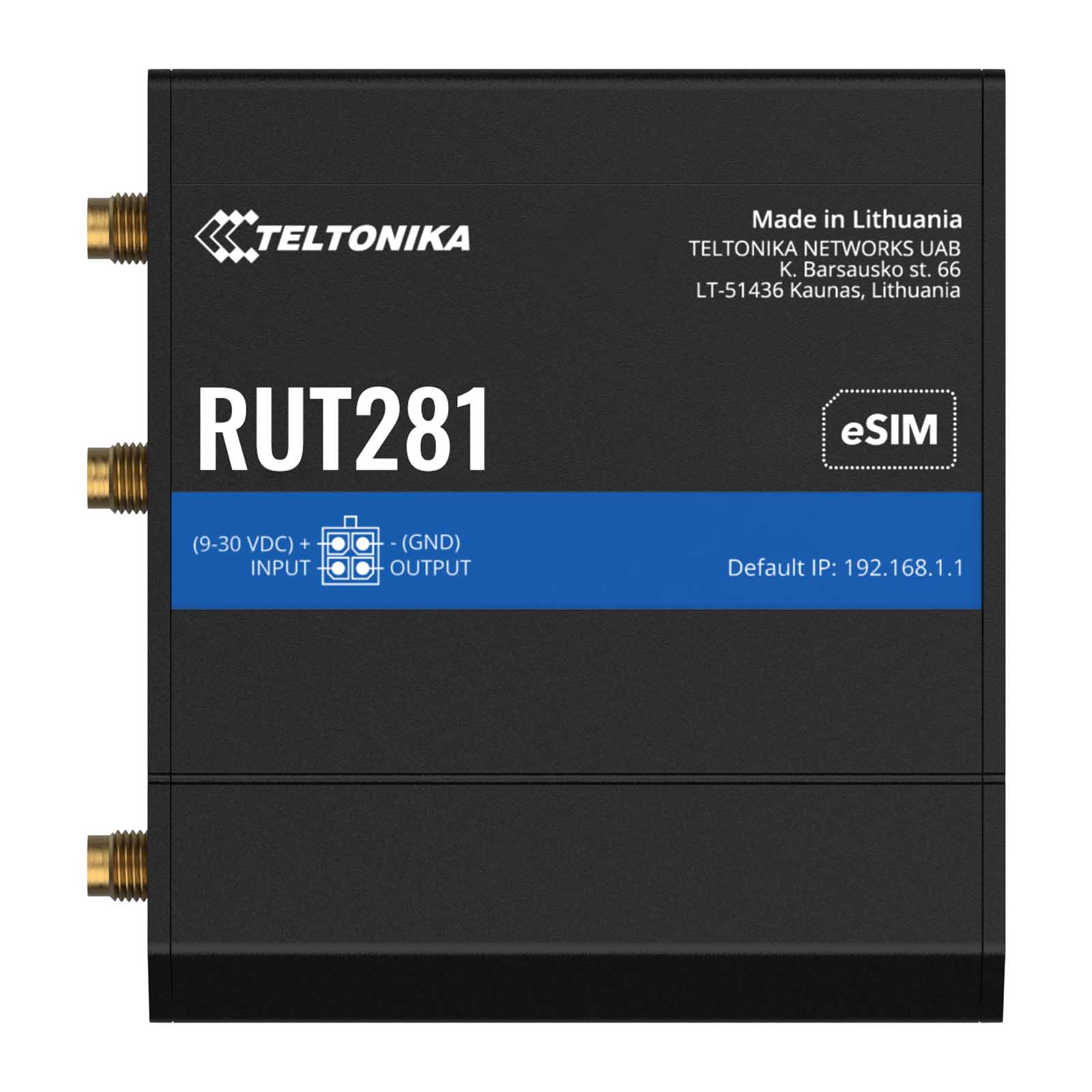

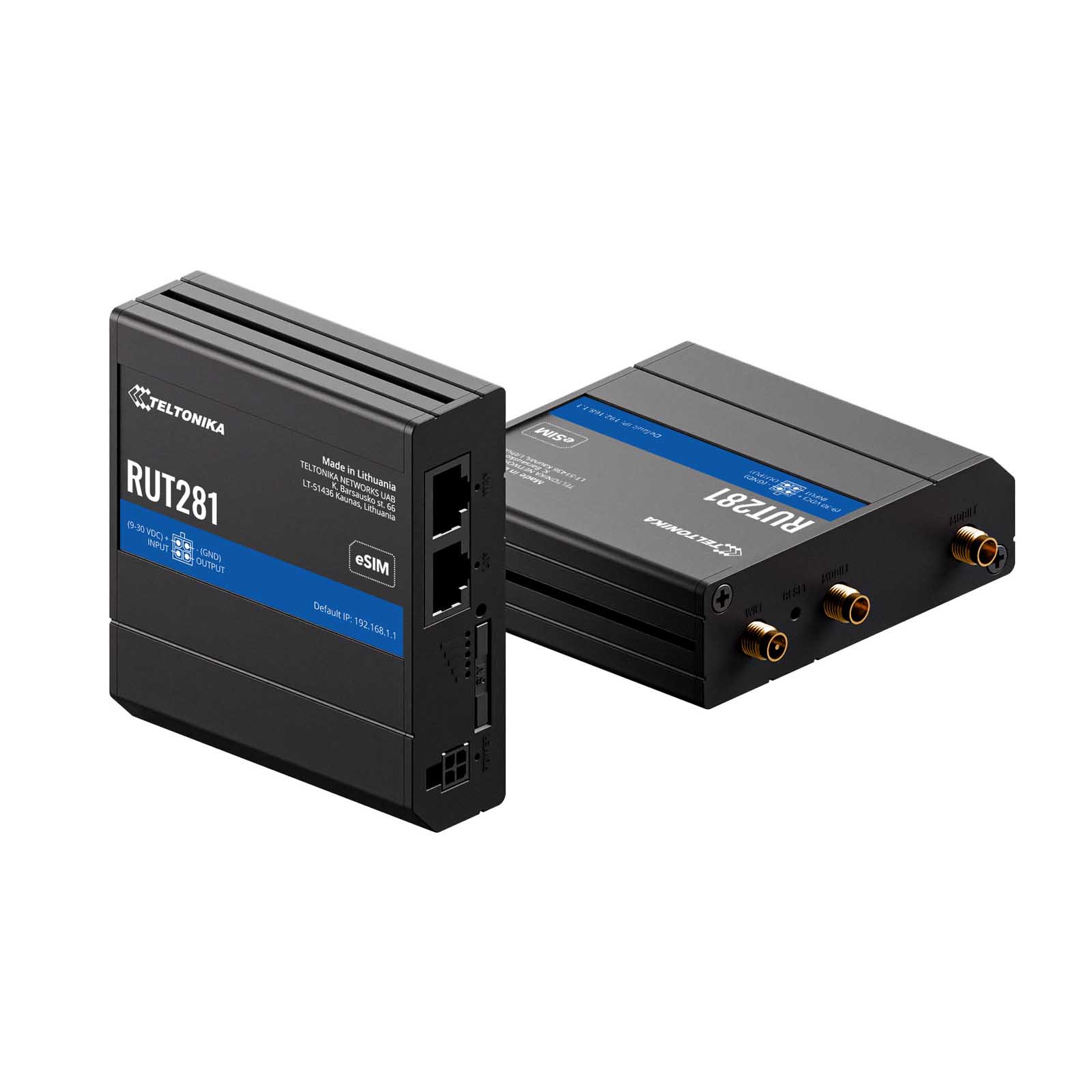

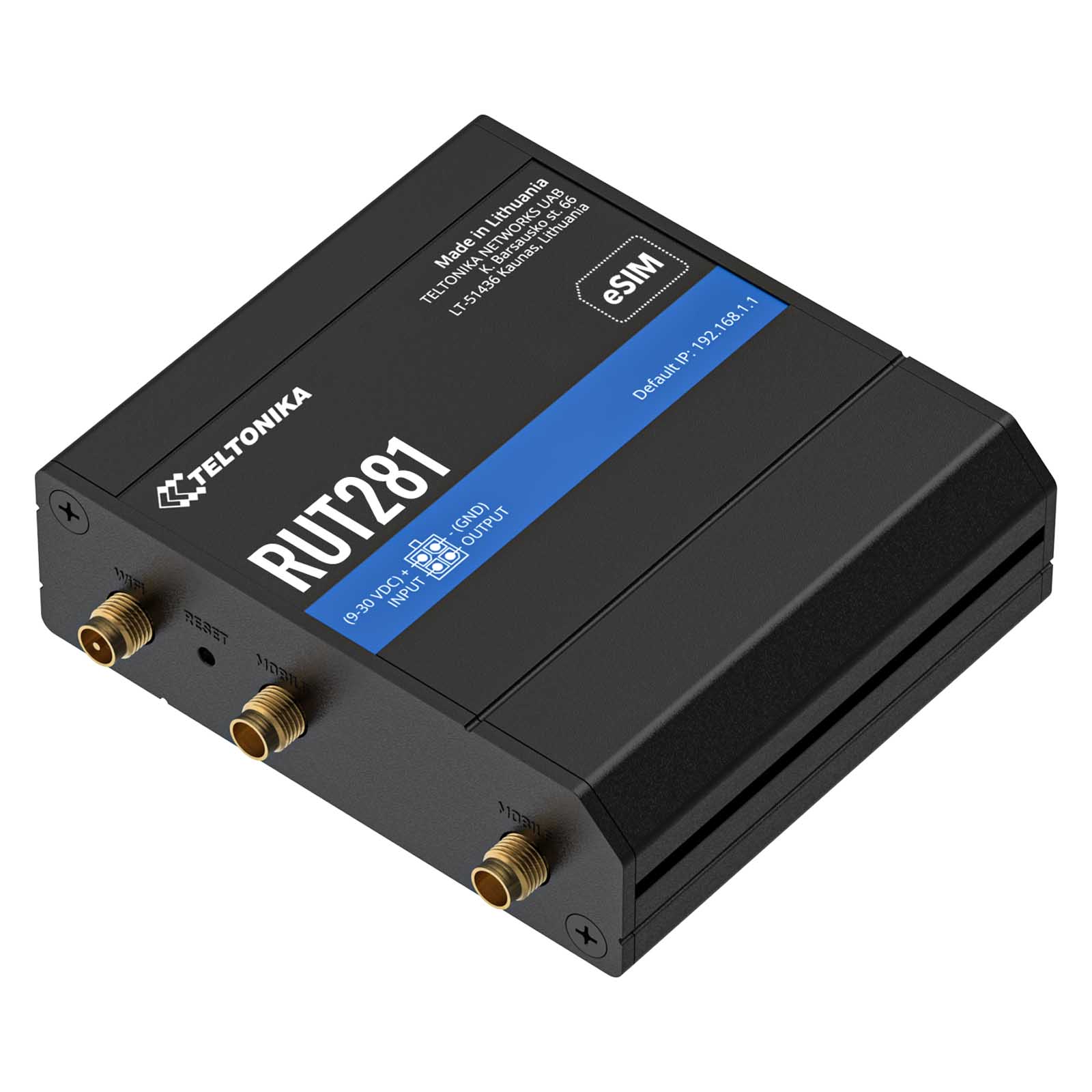

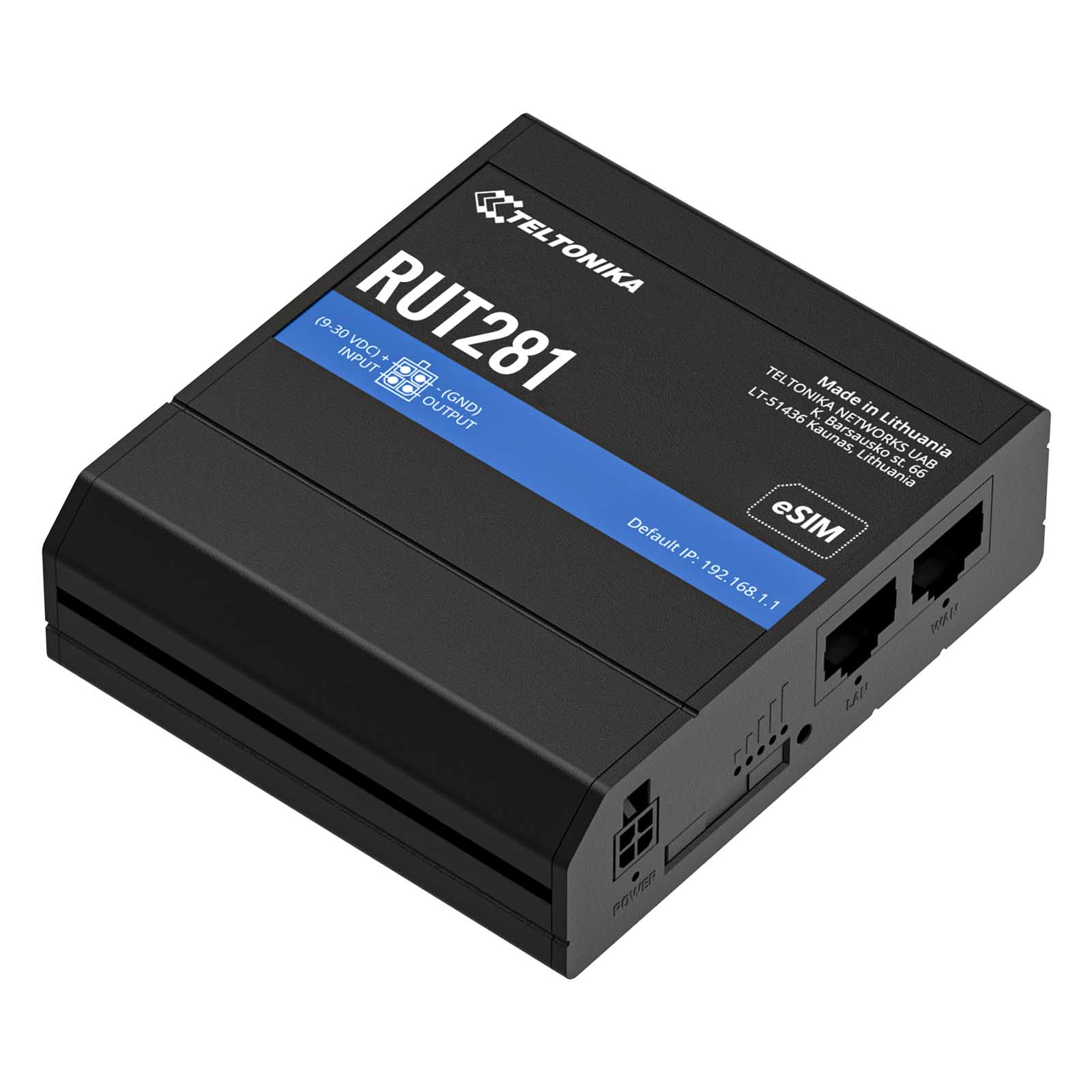

Teltonika RUT281 router 4G LTE eSIM (RUT281000000)
Teltonika RUT281 (RUT281000000) to kompaktowy przemysłowy router 4G LTE Telit wyposażony w 2x porty Fast Ethernet, 2,4 GHz WiFi, eSIM i oprogramowanie RutOS, umożliwiający tworzenie zaawansowanych rozwiązań sieciowych. Urządzenie Teltonika RUT281, zaprojektowane z myślą o wdrożeniach na dużą skalę, zapewnia stabilną łączność, długotrwałą dostępność w całym cyklu życia produktu oraz zgodność z wymogami dotyczącymi zaopatrzenia w modemy, dzięki czemu idealnie nadaje się do zastosowań w środowiskach zdalnych i o ograniczonej przestrzeni.
Kompaktowy router LTE z niezawodnym modemem Telit Cat 4, zaprojektowany z myślą o stabilnej wydajności i długotrwałej pracy w sieciach na całym świecie. Zapewnij stałą łączność dzięki kartom SIM i eSIM oraz skorzystaj z funkcji eSIM Bootstrap do wygodnego pobrania profilu początkowego. Zachowaj ciągłość działania sieci dzięki funkcji przełączania awaryjnego WAN, która utrzymuje systemy online w przypadku utraty połączenia w wymagających środowiskach. Zapewnij elastyczność instalacji dzięki kompaktowej obudowie o wymiarach 83 × 25 × 74 mm, idealnej do wdrożeń w ograniczonych przestrzennie miejscach.
Router Teltonika RUT281 (RUT281000000), obsługuje pasma LTE:
- 4G: B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B14, B18, B19, B20, B25, B26, B28
- 3G: B1, B2, B4, B5, B6, B8, B19
- 2G: B2, B3, B5, B8
Zawartość zestawu:
Najważniejsze cechy:
- GLOBAL LTE: Zapewnij niezawodną łączność na całym świecie dzięki modemowi Telit Cat 4
- Karty SIM i eSIM: Wyeliminuj konieczność wizyt na miejscu i zarządzaj profilami operatorów na dużą skalę
- AUTOMATYCZNE PRZEŁĄCZANIE AWARYJNE: Zapewnij ciągłość działania sieci dzięki przełączaniu awaryjnemu w sieci WAN i równoważeniu obciążenia
- KOMPAKTOWA OBUDOWA: Ciesz się przemysłową wydajnością w wytrzymałej aluminiowej obudowie
- Wsteczna kompatybilność z 4G LTE Cat 4
- Bezprzewodowy punkt dostępowy z funkcją hotspotu
- WAN failover - Automatyczne przełączanie na dostępne połączenie zapasowe
- 2x porty Fast Ethernet 10/100 Mb/s
Mobile
- Mobile module: 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL Kbps
- 3GPP Release: Release 10
- eSIM: Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
- SIM switch: 1 x 2FF SIM and 1 x eSIM, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail
- Status: IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, mobile signal graphs, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
- SMS: SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSD: Supports sending and reading Unstructured Supplementary Service Data messages
- Block/Allow list: Operator block/allow list (by country or separate operators)
- Multiple PDN: Possibility to use different PDNs for multiple network access and services
- Band management: Band lock, Used band status display
- SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
- APN: Auto APN
- Bridge: Direct connection (bridge) between mobile ISP and device on LAN
- Passthrough: Router assigns its mobile WAN IP address to another device on LAN
Wireless
- Wireless mode: 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
- Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
- SSID/ESSID: SSID stealth mode and access control based on MAC address
- Wi-Fi users: Up to 50 simultaneous connections
- Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
- Wireless MAC filter: Allowlist, blocklist
- Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information
- TravelMate: Forward Wi-Fi hotspot landing page to a subsequent connected device
Ethernet
- WAN: 1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
- LAN: 1 x LAN port, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX
Network
- Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
- VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall: Port forward, traffic rules, custom rules, TTL target customisation
- Firewall status page: View all your Firewall statistics, rules, and rule counters
- Port management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
- Network topology: Visual representation of your network, showing which devices are connected to which other devices
- Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
- DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
- QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS: Supported >77 service providers, others can be configured manually
- DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
- Network backup: Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
- Load balancing: Balance Internet traffic over multiple WAN connections
- SSHFS: Possibility to mount remote file system via SSH protocol
- Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history
Security
- Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
- Firewall: Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
- Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN: Port and tag-based VLAN separation
- Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number
- WEB filter: Block list for blocking out unwanted websites, allow list for specifying allowed sites only
- Access control: Flexible access control of SSH, Web interface, CLI and Telnet
- Certificate Manager: Certificate creation tool allows to create CA, server, client, let's encrypt, SCEP certificates
- 802.1x: Port-based network access control server
VPN
- OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
- IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
- GRE: GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
- DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
- SSTP: SSTP client instance support
- ZeroTier: ZeroTier VPN client support
- WireGuard: WireGuard VPN client and server support
- Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
OPC UA
- Supported modes: Client, Server
- Supported connection types: TCP
MODBUS
- Supported modes: Server, Client
- Supported connection types: TCP
- Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
- Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
Data to Server
- Protocol: HTTP(S), MQTT, Azure MQTT
- Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
MQTT Gateway
- Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
- Supported modes: Station, Outstation
- Supported connection: TCP
DLMS/COSEM
- DLMS Support: DLMS - standard protocol for utility meter data exchange
- Supported modes: Client
- Supported connection types: TCP
API
- Teltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Monitoring & Management
- WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
- FOTA: Firmware update from server, automatic notification
- SSH: SSH (v1, v2)
- SMS: SMS status, SMS configuration
- Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
- TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT: MQTT Broker, MQTT publisher
- SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection
- JSON-RPC: Management API over HTTP/HTTPS
- RMS: Teltonika Remote Management System (RMS)
IoT Platforms
- ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
- Cumulocity - Cloud of Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
- Azure IoT Hub: Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
- AWS IoT Core: Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality
System Characteristics
- CPU: Mediatek, 580 MHz, MIPS 24KEc
- RAM: 128 MB, DDR2
- FLASH storage: 32 MB, SPI Flash
Firmware/Configuration
- WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
- FOTA: Update FW
- RMS: Update FW/configuration for multiple devices at once
- Keep settings: Update FW without losing current configuration
- Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
FIRMWARE CUSTOMISATION
- Operating system: RutOS (OpenWrt based Linux OS)
- Supported languages: Busybox shell, Lua, C, C++
- Development tools: SDK package with build environment provided
- GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
- Package Manager: The Package Manager is a service used to install additional software on the device
Input/Output
- Input: 1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
- Output: 1 x Digital Output, Open collector output, max output 30 V, 300 mA
- Events: Email, RMS, SMS
- I/O juggler: Allows to set certain I/O conditions to initiate event
Power
- Connector: 4-pin industrial DC power socket
- Input voltage range: 9 – 30 VDC, reverse polarity protection; surge protection >31 VDC 10us max
- PoE (passive): Passive PoE over spare pairs. Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
- Power consumption: Idle: < 2 W, Max: < 4 W

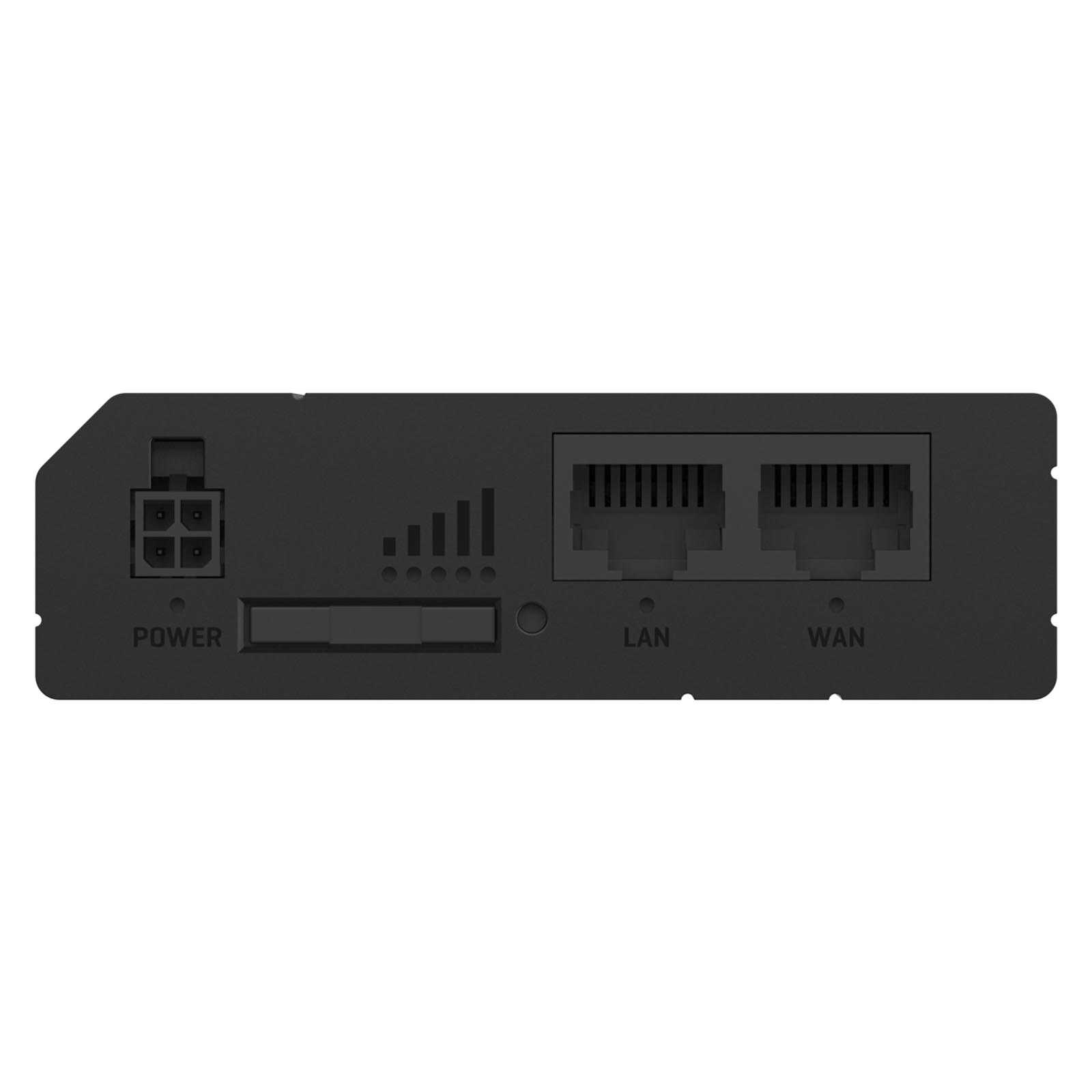

Physical Interfaces
- Ethernet: 2 x RJ45 ports, 10/100 Mbps
- I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
- Status LEDs: 3 x Connection type status LEDs, 5 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
- SIM: 1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V, external SIM holder
- Power: 1 x 4-pin power connector

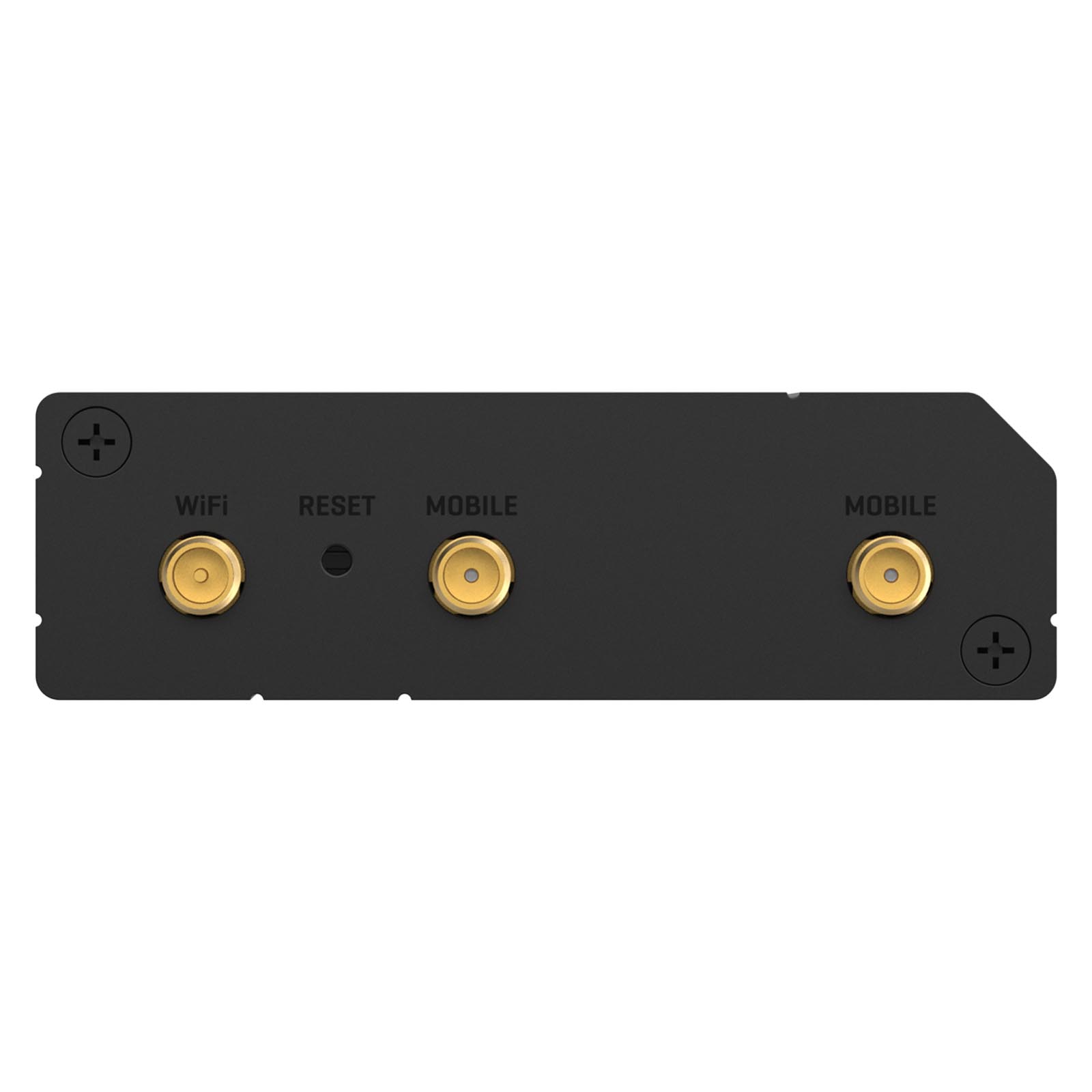

- Antennas: 2 x SMA for LTE, 1 x RP-SMA for Wi-Fi antenna connectors
- Reset: Reboot/User default reset/Factory reset button
Physical Specification
- Casing material: Aluminium housing, plastic panels
- Dimensions (W x H x D): 83 x 25 x 74 mm
- Weight: 130 g
- Mounting options: DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
- Operating temperature: -40 °C to 65 °C
- Operating humidity: 10% to 90% non-condensing
- Ingress Protection Rating: IP30
Regulatory & Type Approvals
- Regulatory: CE, UKCA, EAC, UCRF, FCC, ISED (IC), RCM, CB
EMC Emissions & Immunity Standards
- CE/UKCA:
- EN 55032: 2015+A11:2020+A1:2020
- EN 55035: 2017+A11:2020
- EN 61000-3-3: 2013+ A1:2019+A2:2021
- EN IEC 61000-3-2: 2019+A1:2021+A2:2024
- EN 301 489-1 V2.2.3
- EN 301 489-17 V3.3.1
- EN 301 489-19 V2.2.1
- EN 301 489-52 V1.2.1
- RCM: AS/NZS CISPR 32: 2015+A1:2020
- FCC: 47 CFR Part 15 Subpart B
- ISED (IC): ICES-003: Issue 7 (October 2020)
- ESD: EN 61000-4-2:2009
- Radiated Immunity: EN IEC 61000-4-3:2020
- EFT: EN 61000-4-4:2012
- Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017
- CS: EN 61000-4-6:2014
- DIP: EN 61000-4-11:2020
RF Standards
- CE/UKCA:
- EN 300 328 V2.2.2
- EN 301 511 V12.5.1
- EN 301 908-1 V15.2.1
- EN 301 908-2 V13.2.1
- EN 301 908-13 V13.2.1
- RCM:
- AS/NZS 4268:2017+A1:2021
- AS/NZS 2772.2:2016+A1:2018
- ARPANSA RPS S-1 Radiation Protection Series S-1 (Rev. 1)
- FCC:
- 47 CFR Part 15 Subpart C - § 15.247
- FCC Rules 47 CFR §2.1091
- KDB 447498 D04 interim General RF Exposure Guidance v01
- ISED (IC):
- RSS-247 Issue 3, August 2023
- RSS-Gen Issue 5 Amendment 2 (February 2021)
- RSS-102 Issue 6, December 15, 2023
Safety Standards
- CE: EN IEC 62311:2020
- RCM: AS/NZS 62368.1:2022
- CB: EN IEC 62368-1:2020+A11:2020:
