MOBILE
|
|
|
Mobile module
|
4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
|
SIM switch
|
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection |
|
Status
|
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID |
|
Bridge
|
Direct connection (bridge) between mobile ISP and device on LAN |
|
Passthrough
|
Router assigns its mobile WAN IP address to another device on LAN |
|
APN
|
Auto APN |
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP |
|
Black/White list
|
Operator black/white list |
|
3GPP Release
|
Release 10/11 depending on the hardware version |
|
Band management
|
Band lock, Used band status display |
|
USSD
|
Supports sending and reading Unstructured Supplementary Service Data messages |
|
WIRELESS
|
|
|
Wireless
|
IEEE 802.11b/g/n, Access Point (AP), Station (STA) Fast roaming (802.11r), Relayd |
|
WiFi security
|
WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
|
SSID/ESSID
|
ESSID stealth mode |
|
WiFi users
|
Up to 100 simultaneous connections |
|
Wireless Hotspot
|
Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes |
|
ETHERNET
|
|
|
WAN
|
1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
|
LAN
|
3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX |
|
NETWORK
|
|
|
Routing
|
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
|
Network protocols
|
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SMNP, MQTT, Wake On Lan (WOL) |
|
VoIP passthrough support
|
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
|
Connection monitoring
|
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
|
Firewall
|
Port forward, traffic rules, custom rules |
|
DHCP
|
Static and dynamic IP allocation, DHCP Relay |
|
QoS / Smart Queue Management (SQM)
|
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
|
DDNS
|
Supported >25 service providers, others can be configured manually |
|
Network backup
|
Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover |
|
Load balancing
|
Balance Internet traffic over multiple WAN connections |
|
Hotspot
|
Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes |
|
SSHFS
|
Possibility to mount remote file system via SSH protocol |
|
SECURITY
|
|
|
Authentication
|
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Radius, IP & Login attempts block |
|
Firewall
|
Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
|
Attack prevention
|
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
|
WiFi security
|
WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
|
VLAN
|
Port and tag-based VLAN separation |
|
Mobile quota control
|
Mobile data limit, customizable period, start time, warning limit, phone number |
|
WEB filter
|
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
|
Access control
|
Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
|
VPN
|
|
|
OpenVPN
|
Multiple clients and a server can run simultaneously, 27 encryption methods |
|
OpenVPN Encryption
|
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
|
IPsec
|
IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
|
GRE
|
GRE tunnel, GRE tunnel over IPsec support |
|
PPTP, L2TP
|
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support |
|
Stunnel
|
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
|
SSTP
|
SSTP client instance support |
|
ZeroTier
|
ZeroTier VPN client support |
|
DMVPN
|
Method of building scalable IPsec VPNs |
|
WireGuard
|
WireGuard VPN client and server support |
|
Tinc
|
Tinc offers encryption, authentication and compression in it's tunnels. Client and server support. |
|
BACNET
|
|
|
Supported connection types
|
RS485, TCP |
|
Supported modes
|
Router |
|
OPC UA
|
|
|
Supported modes
|
Client, Server (planned) |
|
Supported connection types
|
TCP |
|
DNP3
|
|
|
Supported modes
|
TCP Station, Outstation |
|
Supported connection types
|
RS232, RS485, TCP, USB |
|
MODBUS
|
|
|
Supported modes
|
Server, Client |
|
Supported connection types
|
RS232, RS485, TCP, USB |
|
Custom registers
|
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Slave functionality |
|
Supported data formats
|
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
|
MQTT GATEWAY
|
|
|
MQTT gateway
|
Allows sending commands and receiving data from MODBUS Master through MQTT broker |
|
DATA TO SERVER
|
|
|
Protocol
|
HTTP(S), MQTT, Azure MQTT, Kinesis |
|
MONITORING & MANAGEMENT
|
|
|
WEB UI
|
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
|
FOTA
|
Firmware update from server, automatic notification |
|
SSH
|
SSH (v1, v2) |
|
SMS
|
SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
|
Call
|
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, WiFi on/off |
|
TR-069
|
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
|
MQTT
|
MQTT Broker, MQTT publisher |
|
SNMP
|
SNMP (v1, v2, v3), SNMP trap |
|
JSON-RPC
|
Management API over HTTP/HTTPS |
|
MODBUS
|
MODBUS TCP status/control |
|
RMS
|
Teltonika Remote Management System (RMS) |
|
IoT PLATFORMS
|
|
|
Cloud of Things
|
Allows monitoring of: Device data, Mobile data, Network info, Availability |
|
ThingWorx
|
Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
|
Cumulocity
|
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength |
|
Azure IoT Hub
|
Can send device IP, Number of bytes send/received, Temperature, PIN count to Azure IoT Hub server, Mobile connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, SIM State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type |
|
SYSTEM CHARACTERISTICS
|
|
|
CPU
|
Mediatek, 580 MHz, MIPS 24KEc |
|
RAM
|
128 MB, DDR2 |
|
FLASH memory
|
16 MB SPI Flash |
|
FIRMWARE / CONFIGURATION
|
|
|
WEB UI
|
Update FW from file, check FW on server, configuration profiles, configuration backup |
|
FOTA
|
Update FW |
|
RMS
|
Update FW/configuration for multiple devices |
|
Keep settings
|
Update FW without losing current configuration |
|
FIRMWARE CUSTOMIZATION
|
|
|
Operating system
|
RutOS (OpenWrt based Linux OS) |
|
Supported languages
|
Busybox shell, Lua, C, C++, and Python, Java in Package manager |
|
Development tools
|
SDK package with build environment provided |
|
LOCATION TRACKING
|
|
|
GNSS
|
GPS, GLONASS, BeiDou, Galileo and QZSS |
|
Coordinates
|
GNSS coordinates via WebUI, SMS, TAVL, RMS |
|
NTRIP
|
NTRIP protocol (Networked Transport of RTCM via Internet Protocol) |
|
Server software
|
Supported server software TAVL, RMS |
|
Geofencing
|
Configurable multiple geofence zones |
|
SERIAL
|
|
|
RS232
|
DB9 connector, RS232 (with RTS, CTS flow control), 300 to 115200 baud rate |
|
RS485
|
RS485 Full Duplex (4 wires) and Half-Duplex (2 wires), 300-230400 baud rate |
|
Serial functions
|
Console, Serial over IP, Modem |
|
USB
|
|
|
Data rate
|
USB 2.0 |
|
Applications
|
Samba share, USB-to-serial |
|
External devices
|
Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter |
|
Storage formats
|
FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
|
INPUT/OUTPUT
|
|
|
Input
|
1 x digital dry input (0 - 3 V), 1 x digital galvanically isolated input (0 - 30 V), 1 x analog input (0 - 24 V), 1 x Digital non-isolated input (on 4-pin power connector, 0 - 5 V detected as logic low, 8 - 30 V detected as logic high) |
|
Output
|
1 x digital open collector output (30 V, 250 mA), 1 x SPST relay output (40 V, 4 A), 1 x Digital open collector output (30 V, 300 mA, on 4-pin power connector) |
|
Events
|
Email, RMS, SMS |
|
I/O juggler
|
Allows to set certain I/O conditions to initiate event |
|
POWER
|
|
|
Connector
|
4 pin industrial DC power socket |
|
Input voltage range
|
9 – 30 VDC (4 pin industrial socket), reverse polarity protection; surge protection >31 VDC 10us max |
|
PoE (passive)
|
Passive PoE over spare pairs. Possibility to power up through LAN port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, LAN1 Port, 9 - 50 VDC |
|
Power consumption
|
< 2 W idle, < 7 W Max |
|
PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM)
|
|
|

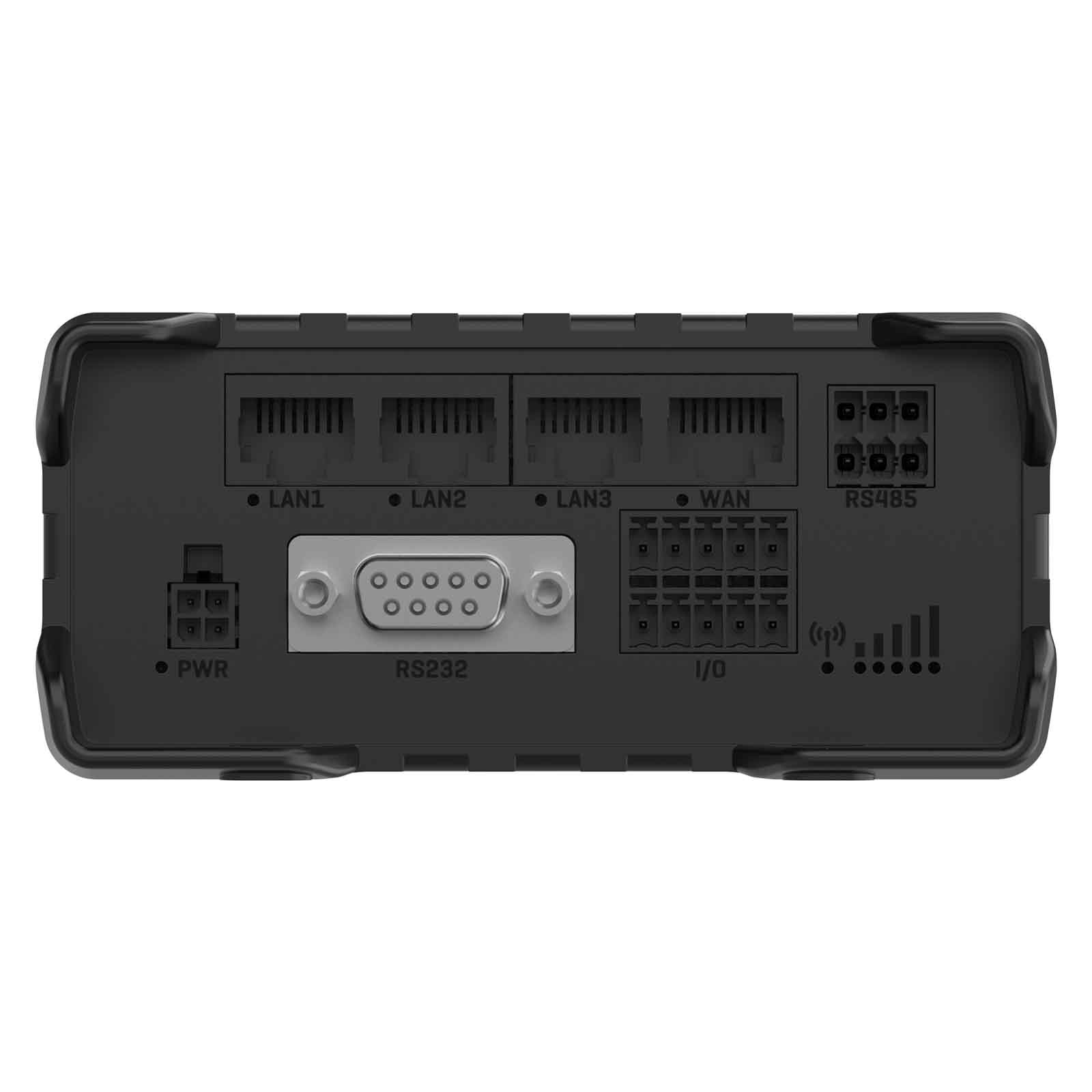

Ethernet
|
4 x RJ45 ports, 10/100 Mbps |
|
I/O’s
|
2 x Inputs and 2 x Outputs on 10-pin industrial socket, 1 x Digital input and 1 x Digital output on 4-pin power connector |
|
Status LEDs
|
1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power |
|
SIM
|
2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional) |
|
Power
|
1 x 4-pin power connector |
|
Input/output
|
1 x 10-pin industrial socket for inputs/outputs |
|

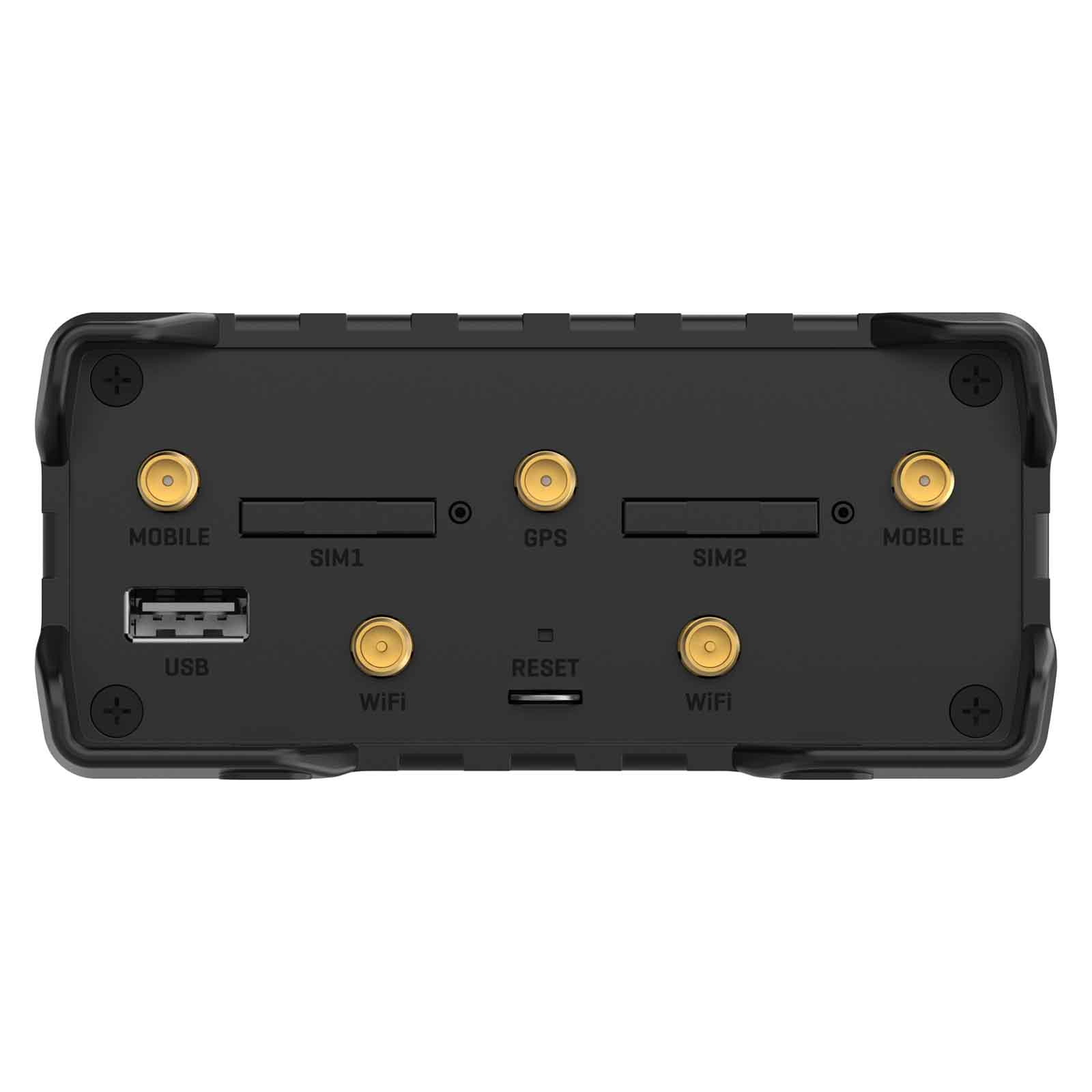

Antennas
|
2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
|
RS232
|
1 x DB9 socket |
|
RS485
|
1 x 6-pin industrial socket |
|
USB
|
1 x USB A port for external devices |
|
Antennas
|
2 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS |
|
Reset
|
Reboot/User default reset/Factory reset button |
|
PHYSICAL SPECIFICATION
|
|
|
Casing material
|
Aluminium housing, plastic panels |
|
Dimensions
|
109.5 x 50 x 100 mm |
|
Weight
|
295 g |
|
Mounting options
|
DIN rail (can be mounted on two sides), flat surface placement |
|
OPERATING ENVIRONMENT
|
|
|
Operating temperature
|
-40 °C to 75 °C |
|
Operating humidity
|
10% to 90% non-condensing |
|
Ingress Protection Rating
|
IP30 |
|
MTBF
|
270000 h |
|
REGULATORY & TYPE APPROVALS
|
|
|
Regulatory
|
CE, UKCA, RCM, CB, E-mark |
