Teltonika RUT951 PoE+ router LTE Dual SIM (RUT951B10J00)

Teltonika RUT951 PoE+ (RUT951B10J00) to kompaktowy router przemysłowy 4G (LTE) wyposażony w 4x porty Fast Ethernet PoE+ (1x PoE-in, 3x PoE-out), WiFi, Dual-SIM, eSIM i oprogramowanie RutOS do zaawansowanych rozwiązań sieciowych.

Oparty na sukcesie bestsellerowego routera 4G Teltonika RUT951, ta ulepszona wersja oferuje teraz wszechstronną funkcję zasilania przez Ethernet (PoE+). Ten solidny router posiada dwie karty SIM i eSIM, niezawodne Wi-Fi oraz cztery porty Ethernet PoE+. Obsługiwany przez RutOS i zaprojektowany z myślą o różnorodnych wdrożeniach IoT, RUT951 PoE+ zapewnia płynną transmisję danych i upraszcza zarządzanie zasilaniem dla podłączonych rozwiązań IoT.

Teltonika RUT951 PoE+ to bezprzewodowy router 4G LTE dual SIM z technologią 802.11n oraz zaimplementowanym serwerem VPN. Wbudowany moduł LTE oraz dwa gniazda SIM umożliwiają jeszcze bardziej wygodne, stabilne połączenie z internetem w dowolnym miejscu z prędkością do 150 Mb/s. Router wyposażony jest w cztery porty Ethernet, dwa zewnętrzne gniazda na kartę SIM, cyfrowe wejście / wyjście, a także wskaźniki LED, pokazujące status i siłę sygnału. Cztery zewnętrzne złącza antenowe SMA umożliwiają podłączenie pożądanych anten. Urządzenie posiada również podstawowe oprogramowanie RutOS i funkcje bezpieczeństwa, takie jak OpenVPN, IPsec, Firewall, Auto Failover, kontrola SMS oraz wsparcie RMS.

Nowatorska funkcja SMS management umożliwia m.in. restartowanie urządzenia, łączenie i  sprawdzanie statusu połączenia. Funkcja failover nie tylko zapewnia bezawaryjność połączenia w przypadku gdy jedna z kart SIM zostanie rozłączona. Umożliwia również obniżenie kosztów poprzez ustawienie opcji failover raoming, która przełącza połączenie na drugą kartę SIM w sytuacji gdy pierwsza z kart rejestruje się w sieci roamingowej i odwrotnie.

Przełączanie pomiędzy SIM1 i SIM2 można również uzależniać od wielkości pobieranych cyklicznie danych (przez dzień, tydzień lub miesiąc), a także od poziomu zasięgu. Oprócz szerokopasmowego mobilnego dostępu do internetu RUT951 PoE+ posiada fizyczny port WAN ethernet, dla podłączenia stacjonarnego łącza szerokopasmowego. Rut950 obsługuje między innymi połączenia PPPoE, statyczne IP, zmienne IP (klient DHCP), GRE Tunnel, PPTP oraz L2TP.

Konfigurację routera, przywracanie i zapisywanie jego ustawień można łatwo przeprowadzić poprzez interfejs WWW, wykorzystując do tego przeglądarkę internetową. W RUT951 PoE+ wprowadzono również możliwość zarządzania routerem za pomocą SMS. Wysyłając odpowiedni SMS na kartę SIM dokonać restartu urządzenia. Funkcja ta jest niezwykle przydatna w sytuacji gdy użytkownik nie ma możliwości zainicjowania połączenia VPN oraz nie ma możliwości zrestartowania routera. Router pozwala także na odbieranie i wysyłanie do jednego lub wielu użytkowników GSM wiadomości tekstowych SMS.

Zawartość zestawu:

• Obsługa LTE kat. 4 do 150 Mb/s
• Bezprzewodowy punkt dostępowy z funkcją Hotspot
• WAN failover - Automatyczne przełączenie na dostępne połączenie zapasowe
• Dual SIM - znacznie obniża koszty roamingu
• eSIM
• 4x porty Fast Ethernet PoE+ z funkcjonalnością VLAN
• 4x porty PoE+ (1x PoE-in, 3x PoE-out)
• Budżet mocy PoE na port 30W, łączny budżet mocy PoE 90W
• System zdalnego zarządzania Teltonika - RMS

• Mobile module: 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
• 3GPP Release: Release 10/11 depending on the hardware version
• SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
• eSIM: Consumer type eSIM, profile download and removal operations, up to 7 eSIM profiles; does not include data plans
• Status: IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
• SMS: SMS status, SMS configuration, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
• USSD: Supports sending and reading Unstructured Supplementary Service Data messages
• Block/Allow list: Operator block/allow list (by country or separate operators)
• Multiple PDN: Possibility to use different PDNs for multiple network access and services
• Band management: Band lock, Used band status display
• SIM PIN code management: SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
• APN: Auto APN
• Bridge: Direct connection (bridge) between mobile ISP and device on LAN
• Passthrough: Router assigns its mobile WAN IP address to another device on LAN

Wireless

• Wireless mode: 802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
• Wi-Fi security: WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
• SSID/ESSID: SSID stealth mode and access control based on MAC address
• Wi-Fi users: Up to 100 simultaneous connections
• Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
• Wireless MAC filter: Allowlist, blocklist
• Wireless QR code generator: Once scanned, a user will automatically enter your network without needing to input login information
• TravelMate: Forward Wi-Fi hotspot landing page to a subsequent connected device

Ethernet

• WAN: 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX
• LAN: 3 x LAN ports, 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u standards, supports auto MDI/MDIX

Network

• Routing: Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
• Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN
• VoIP passthrough support: H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
• Connection monitoring: Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
• Firewall: Port forward, traffic rules, custom rules, TTL target customisation
• Firewall status page: View all your Firewall statistics, rules, and rule counters
• Port management: View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
• Network topology: Visual representation of your network, showing which devices are connected to which other devices
• Hotspot: Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
• DHCP: Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
• QoS / Smart Queue Management (SQM): Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
• DDNS: Supported >77 service providers, others can be configured manually
• DNS over HTTPS: DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
• Network backup: Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
• Load balancing: Balance Internet traffic over multiple WAN connections
• SSHFS: Possibility to mount remote file system via SSH protocol
• Traffic Management: Real-time monitoring, wireless signal charts, traffic usage history
• Port Mirroring: Mirroring network traffic on Ethernet ports for monitoring and analysis

Security

• Authentication: Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
• Firewall: Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
• Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
• VLAN: Port and tag-based VLAN separation
• Mobile quota control: Mobile data limit, customizable period, start time, warning limit, phone number
• WEB filter: Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
• Access control: Flexible access control of SSH, Web interface, CLI and Telnet
• SSL certificate generation: Let's Encrypt and SCEP certificate generation methods

VPN

• OpenVPN: Multiple clients and a server can run simultaneously, 27 encryption methods
• OpenVPN Encryption: DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
• IPsec: XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
• GRE: GRE tunnel, GRE tunnel over IPsec support
• PPTP, L2TP: Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
• Stunnel: Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
• DMVPN: Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
• SSTP: SSTP client instance support
• ZeroTier: ZeroTier VPN client support
• WireGuard: WireGuard VPN client and server support
• Tinc: Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

OPC UA

• Supported modes: Client, Server
• Supported connection types: TCP

MODBUS

• Supported modes: Server, Client
• Supported connection types: TCP
• Custom registers: MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
• Supported data formats: 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII

DATA TO SERVER

• Protocol: HTTP(S), MQTT, Azure MQTT
• Data to server: Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature

MQTT Gateway

• Modbus MQTT Gateway: Allows sending commands and receiving data from MODBUS Server through MQTT broker

DNP3

• Supported modes: Station, Outstation
• Supported connection: TCP

DLMS/COSEM

• DLMS Support: DLMS - standard protocol for utility meter data exchange
• Supported modes: Client
• Supported connection types: TCP

API

• Teltonika Networks Web API (beta) support: Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

Monitoring & Management

• WEB UI: HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
• FOTA: Firmware update from server, automatic notification
• SSH: SSH (v1, v2)
• SMS: SMS status, SMS configuration
• Call: Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
• TR-069: OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
• MQTT: MQTT Broker, MQTT publisher
• SNMP: SNMP (v1, v2, v3), SNMP Trap, Brute force protection
• JSON-RPC: Management API over HTTP/HTTPS
• RMS: Teltonika Remote Management System (RMS)

IoT Platforms

• ThingWorx: Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
• Cumulocity - Cloud of Things: Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
• Azure IoT Hub: Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
• AWS IoT Core: Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality

System Characteristics

• CPU: Mediatek, 580 MHz, MIPS 24KEc
• RAM: 128 MB, DDR2
• FLASH storage: 16 MB, SPI Flash

Firmware / Configuration

• WEB UI: Update FW from file, check FW on server, configuration profiles, configuration backup
• FOTA: Update FW
• RMS: Update FW/configuration for multiple devices at once
• Keep settings: Update FW without losing current configuration
• Factory settings reset: A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

• Operating system: RutOS (OpenWrt based Linux OS)
• Supported languages: Busybox shell, Lua, C, C++
• Development tools: SDK package with build environment provided
• GPL customization: You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
• Package Manager: The Package Manager is a service used to install additional software on the device

POE IN

• PoE ports: Port 1 (LAN1)
• PoE standards: 802.3af/at compliant PD port (LAN1)

POE OUT

• PoE ports: Port 2 - 4 (LAN2, LAN3, WAN)
• PoE standards: 802.3af/at compliant PSE ports (LAN2, LAN3, WAN)
• PoE Max Power per Port (at PSE): 30 W Max
• PoE Power Budget (at PSE): 90 W

Power

• Connector: 4-pin industrial DC power socket
• Input voltage range: 9 – 57 VDC, reverse polarity protection, surge protection >58 VDC 10us max
• Input voltage range for PoE: 48 – 57 VDC
• Power consumption: Idle: < 5 W, Max: < 6.5 W, PoE Max: 100 W

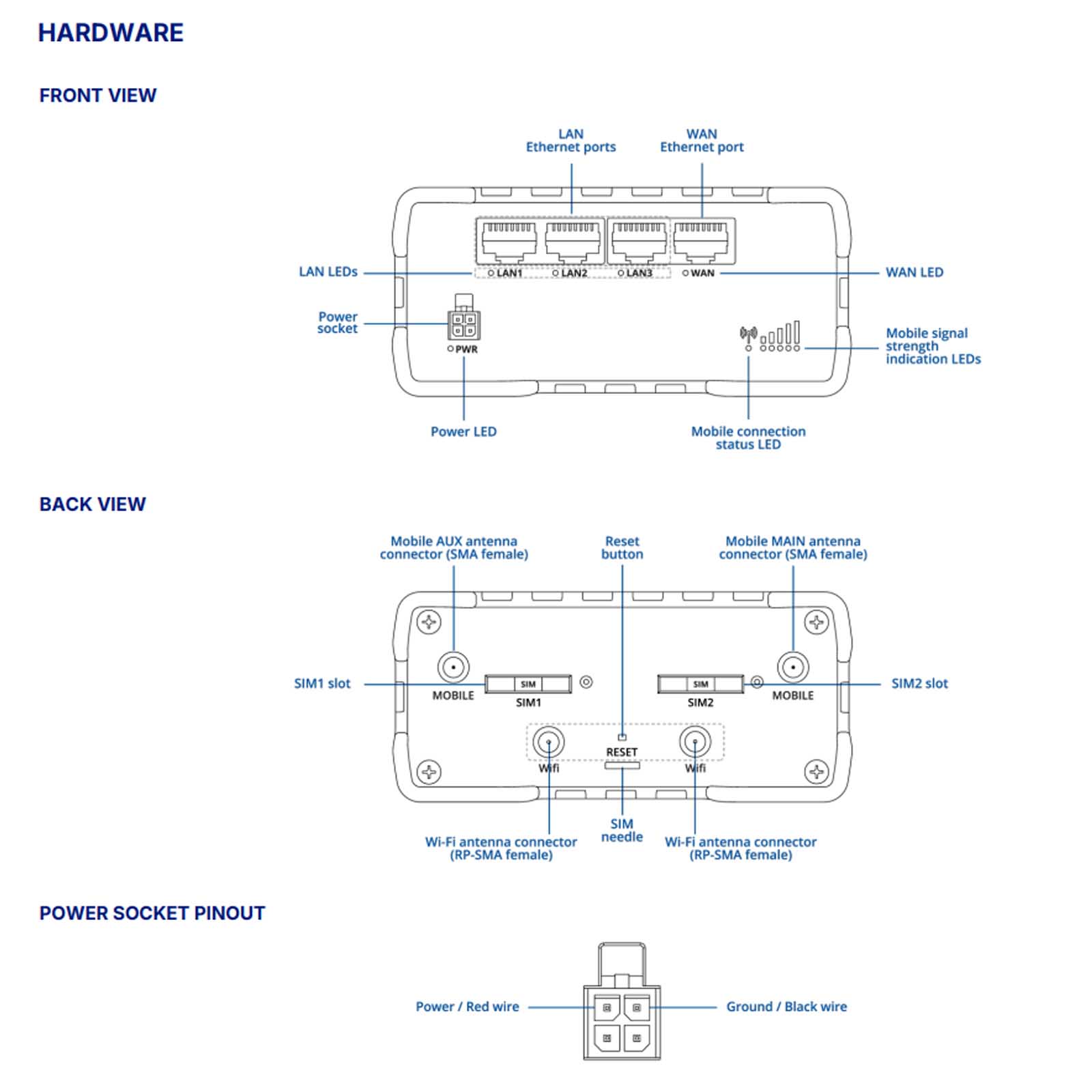

Physical Interfaces

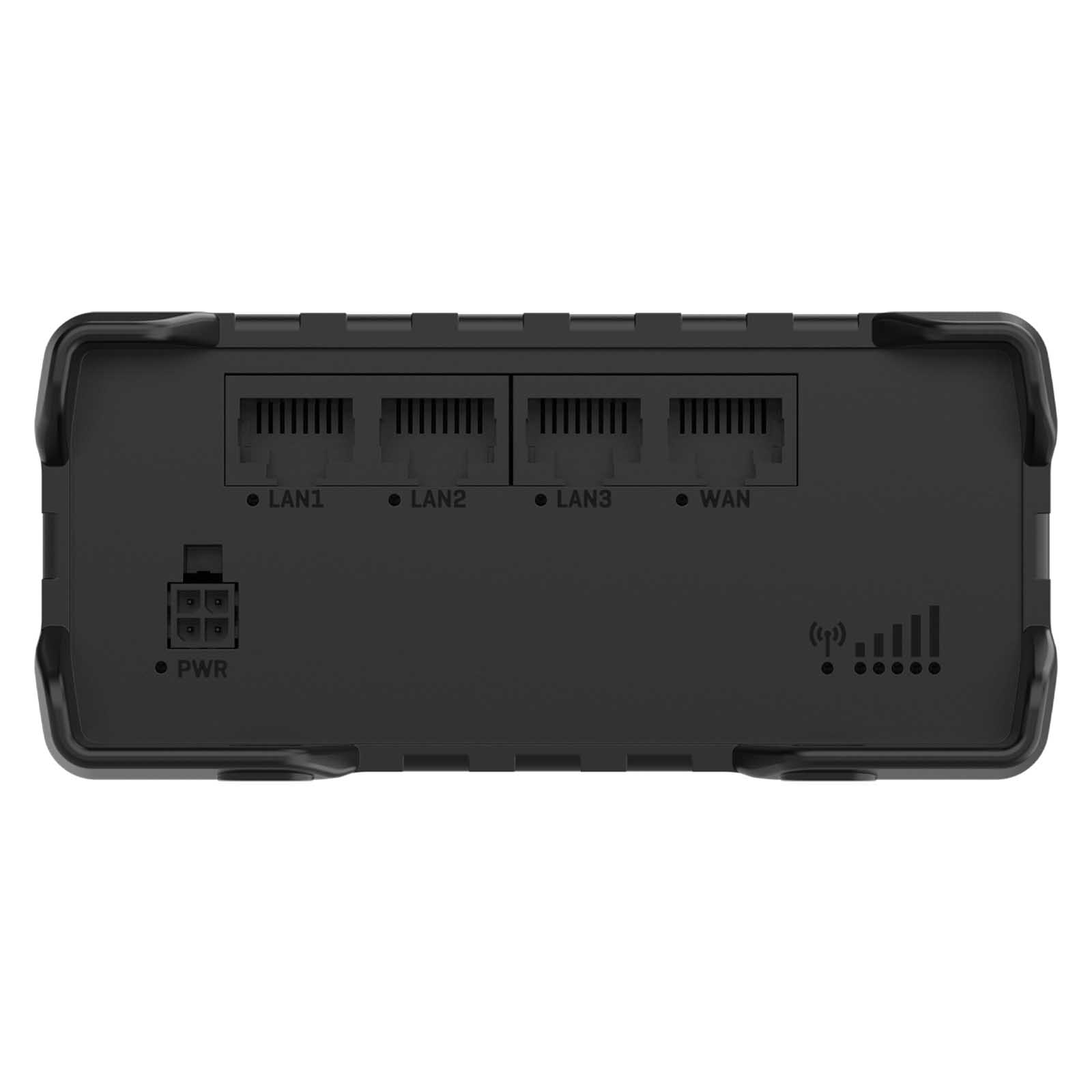

• Ethernet: 4 x RJ45 ports, 10/100 Mbps
• I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector
• Status LEDs: 1 x Bi-color connection status, 5 x Mobile connection strength, 4 x ETH status, 1 x Power
• SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional - different hardware required; contact your sales manager)

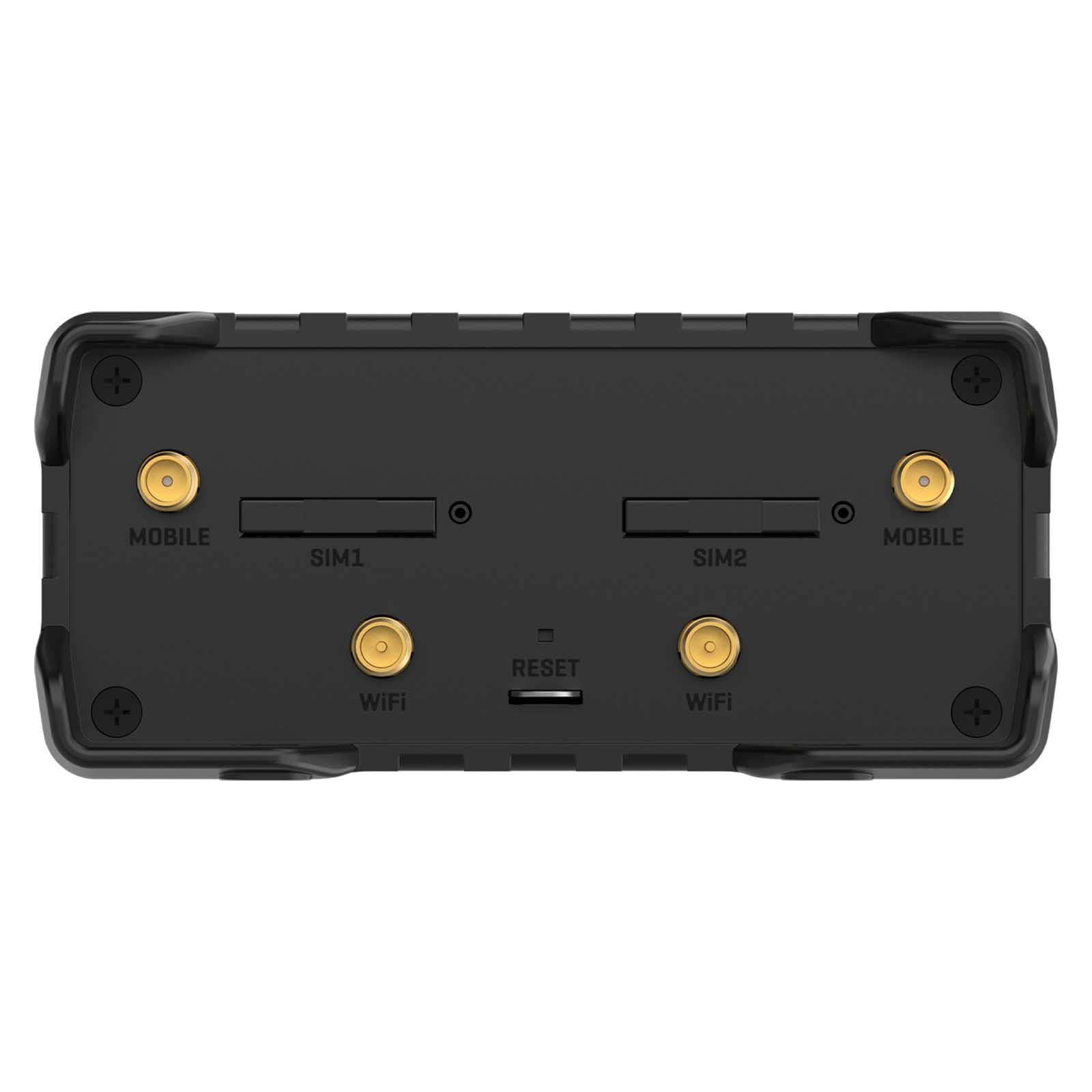

• Antennas: 2 x SMA for LTE, 2 x RP-SMA for Wi-Fi antenna connectors
• Reset: Reboot/User default reset/Factory reset button

Physical Specification

• Casing material: Aluminium housing, plastic panels
• Dimensions (W x H x D): 110 x 50 x 100 mm
• Weight: 287 g
• Mounting options: DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

• Operating temperature: -40 °C to 75 °C
• Operating humidity: 10% to 90% non-condensing
• Ingress Protection Rating: IP30

Regulatory & Type Approvals

• Regulatory: CE, UCRF, EAC, UKCA, RCM, WEEE

EMC Emissions & Immunity

• Standards: EN 55032:2015 + A11:2020, EN 55035:2017 + A11:2020, EN IEC 61000-3-2:2019 + A1:2021, EN 61000-3-3:2013 + A1:2019, EN 301 489-1 V2.2.3, EN 301 489-17 V3.2.4, EN 301 489-52 V1.2.1
• ESD: EN 61000-4-2:2009
• Radiated Immunity: EN 61000-4-3:2020
• EFT: EN 61000-4-4:2012
• Surge Immunity (AC Mains Power Port): EN 61000-4-5:2014 + A1:2017
• CS: EN 61000-4-6:2014
• DIP: EN 61000-4-11:2020

RF

• Standards: EN 300 328 V2.2.2, EN 301 511 V12.5.1, EN 301 908-1 V15.2.1, EN 301 908-2 V13.1.1, EN 301 908-13 V13.2.1

Safety

• Standards:
• CE: EN IEC 62368-1:2020 + A11:2020, EN IEC 62311:2020, EN 50665:2017
• RCM: AS/NZS 62368.1:2022
• CB: IEC 62368-1:2018
