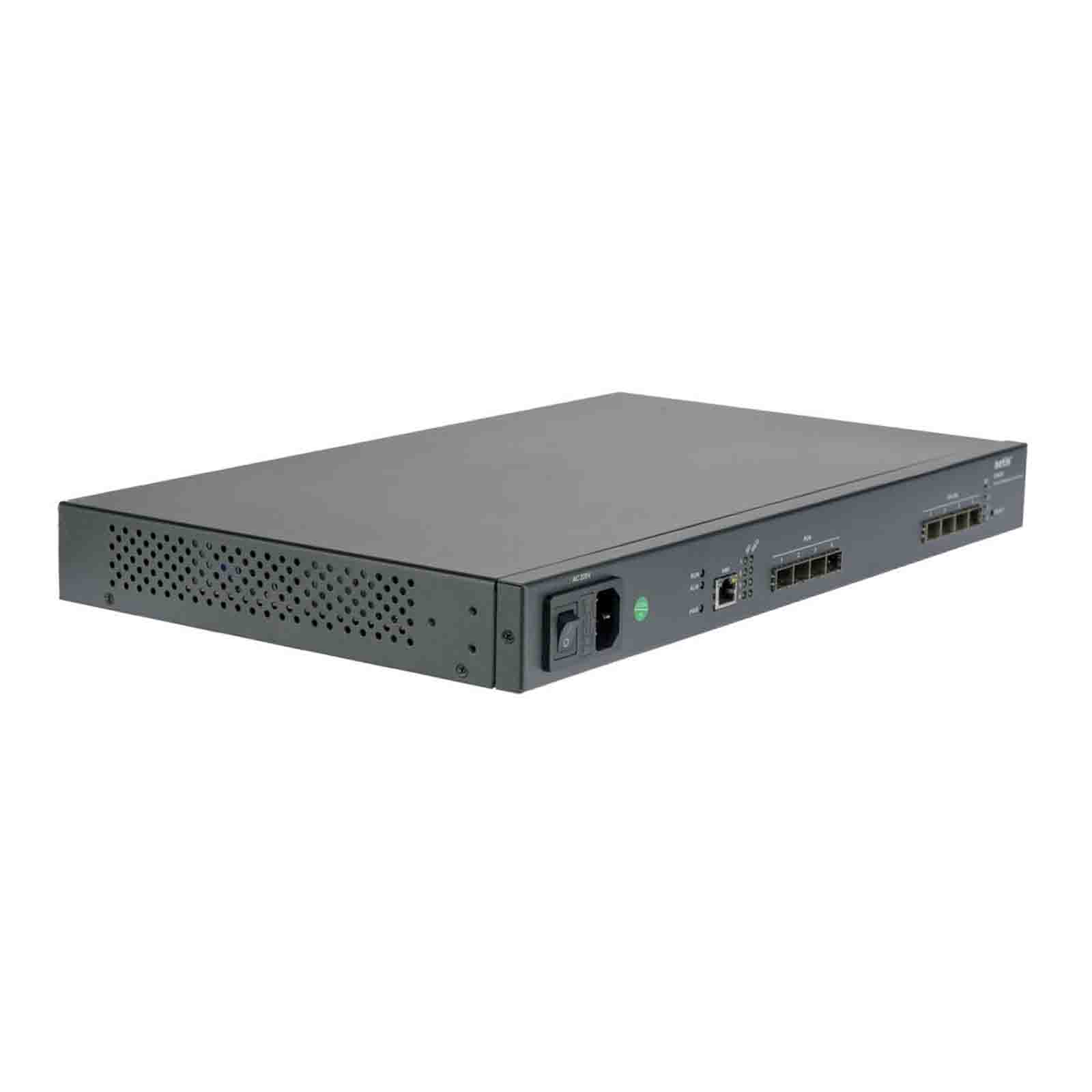

Netis EP8204 4 Ports EPON Optical Line Terminal

Netis EP8204 to urządzenie posiadające 4 porty Epon w systemie obsługi do 512 ONU. Oferuje do 1Gbps przepustowości dla klientów indywidualnych i biznesowych. Stosowany w FTTx (FTTC, FTTB, FTTH)

Najważniejsze cechy:

Zgodność ze standardem IEEE 802.3ah & CTC 2.1
Cztery porty EPON
Do 1.25Gbps dla prędkości wylotowej upstream
Każdy port obsługuje 64 ONU OLT
Obsługiwane protokoły sieciowe: TCP / IP, ICMP, ARP, OSPF, PIM, itp
Zaawansowane funkcje QoS: IP ToS, IEEE 802.1p priorytetowe (SP / WRR / SP + WRR)
Dynamiczna Alokacja Pasma Inteligentna (DBA)
Zapewnia IEEE 802.1Q VLAN

EP8204
Hardware

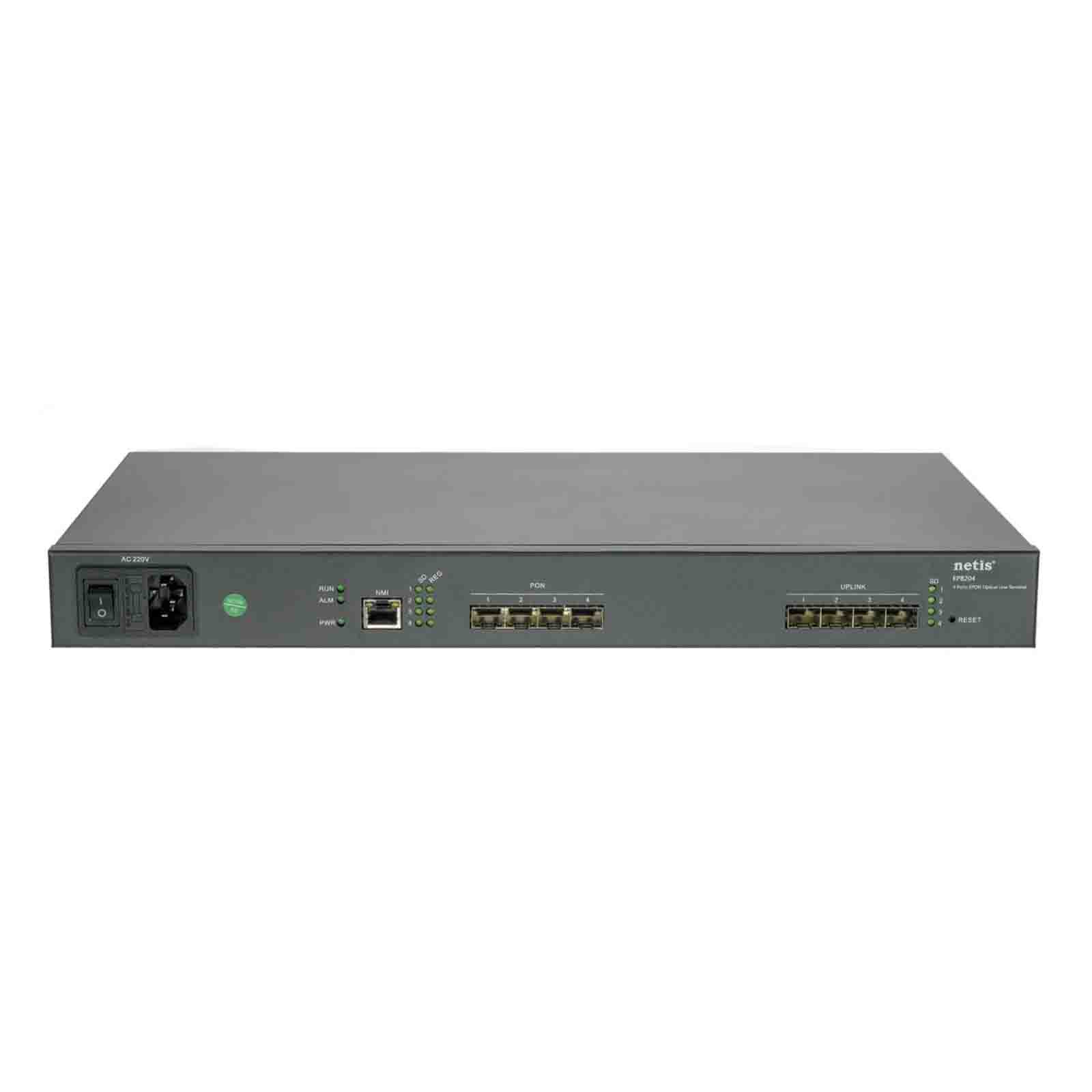

Interface	4x EPON port 4x 10/100/1000Base-T SFP combo uplink port 1x NMI port
LED	RUN, ALM, PWR, SD(1-4 EPON, 1-4 Uplink), REG(1-4 EPON), NMI status
Power Supply	100-240V AC/50-60Hz
Feature
Hardware	Single Mode Fiber Cable SC Fiber Connecter Maximum Splits of ONU: 512 Upstream (ONU->OLT) Wavelength: 1310nm Downstream (OLT->ONU) Wavelength: 1490nm Reach: 20km for PX20/PX20+
Software	Comply with IEEE 802.3-2005 Comply with CTC 2.1 Auto Discovery/Grant Allocation/Ranging/Report Handling Alarm Report Downstream Bandwidth Control by Policy ONU Remote Management Remote Diagnostic Peer to Peer Management Port Lock for Each ONU Performance Statistic Support ONU Firmware Remote Upgrade Comply with Triple Churning Encryption/AES Encryption Support Upstream Traffic Classify and Management through Extended OAM Support IGMP v1/v2 Proxy/Snooping Comply with Upstream Traffic Filter based on MAC DA/SA Support NMI Port Configuration Support Max Frame Length to 1536 Bytes Support Layer2 Features Secure Access via Access Control List (ACL) MAC/LOID Authentication
Others
Certification	FCC, CE
Environment	Operating Temperature: 0°C~40°C (32°F~104°F) Storage Temperature: -40°C~70°C (-40°F~158°F) Operating Humidity: 5%~95% RH non-condensing Storage Humidity: Less than 95% RH non-condensing
Package	1 * EP8204 1 * Power Cord 2 * Rackmount Brackets and the Fittings
